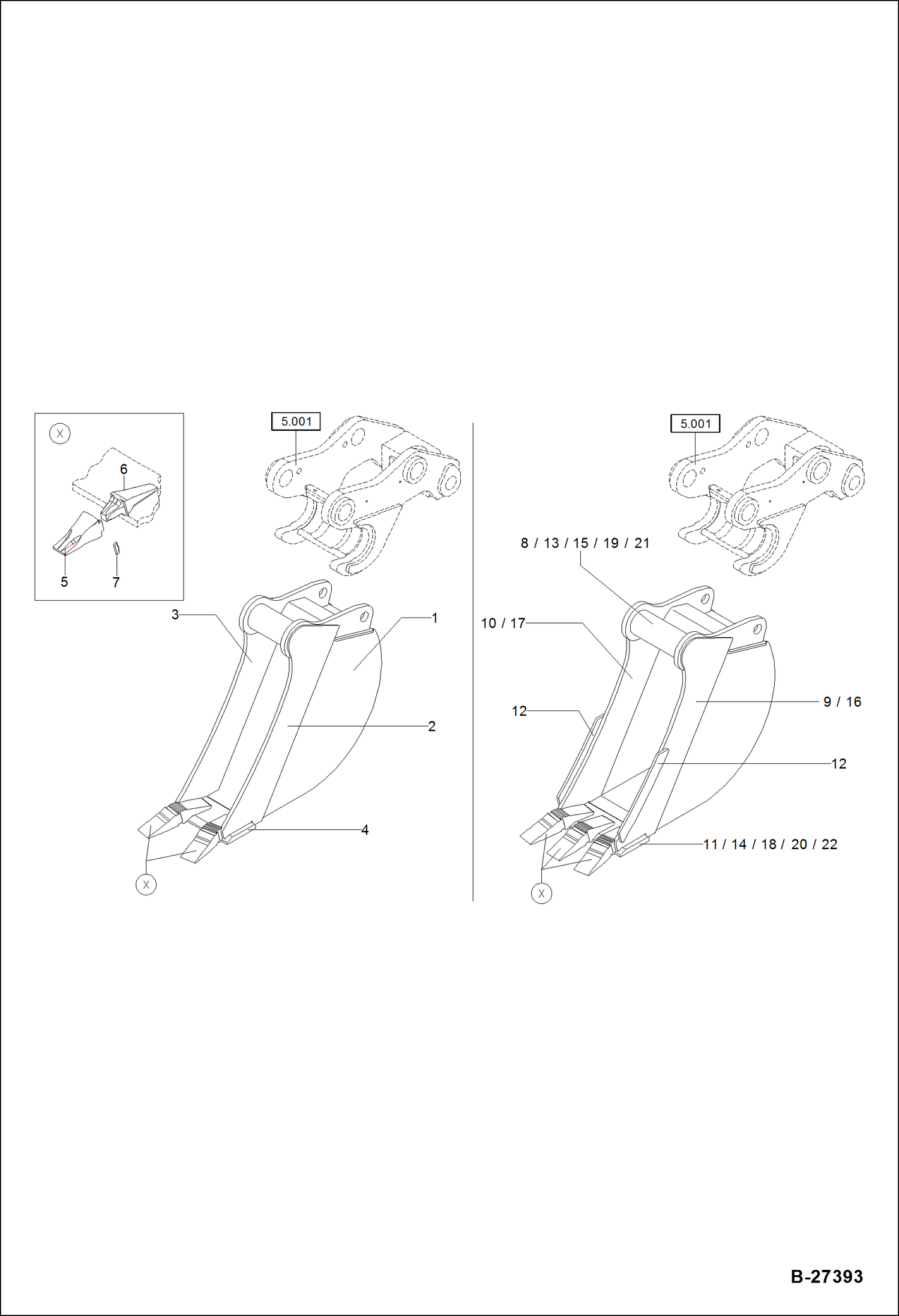

Запчасти Bobcat ZX75 BUCKET ACCESSORIES & OPTIONS

1

6203229000

BUCKET - 290MM 290 MM - Ref. 2,3,4,5,6,7

2

6203229004

SIDE BLADE RIGHT

3

6203229005

SIDE BLADE LEFT

4

6203229007

BLADE W/Ref. 5,6,7

5

5455660445

TOOTH, BUCKET

6

5455660446

BRACKET

7

5455660447

LOCK

8

6203235000

BUCKET - 350MM 350 MM - Ref. 9,10,11,12,5,6,7

9

0203241004

SUPPORT BLADE

10

0203241005

SUPPORT BLADE

11

6203235007

BLADE 350 MM - W/Ref. 5,6,7

12

0203290009

CUTTING EDGE

13

6203241000

BUCKET - 450MM 450 MM - Ref. 9,10,14,12,5,6,7

14

6203241007

BLADE 450 MM - W/Ref. 5,6,7

15

6203260000

BUCKET - 600MM 600 MM - Ref. 16,17,18,12,5,6,7

16

0203290004

SUPPORT BLADE

17

0203290005

SUPPORT BLADE

18

6203260007

BLADE 600 MM - W/Ref. 5,6,7

19

6203280000

BUCKET - 800MM 800 MM - Ref. 16,17,20,12,5,6,7

20

6203280007

BLADE 800 MM - W/Ref. 5,6,7

21

6203290000

BUCKET - 900MM 900 MM - W/Ref. 9,10,12,22,5,6,7

22

6203290007

BLADE 900 MM - W/Ref. 5,6,7
