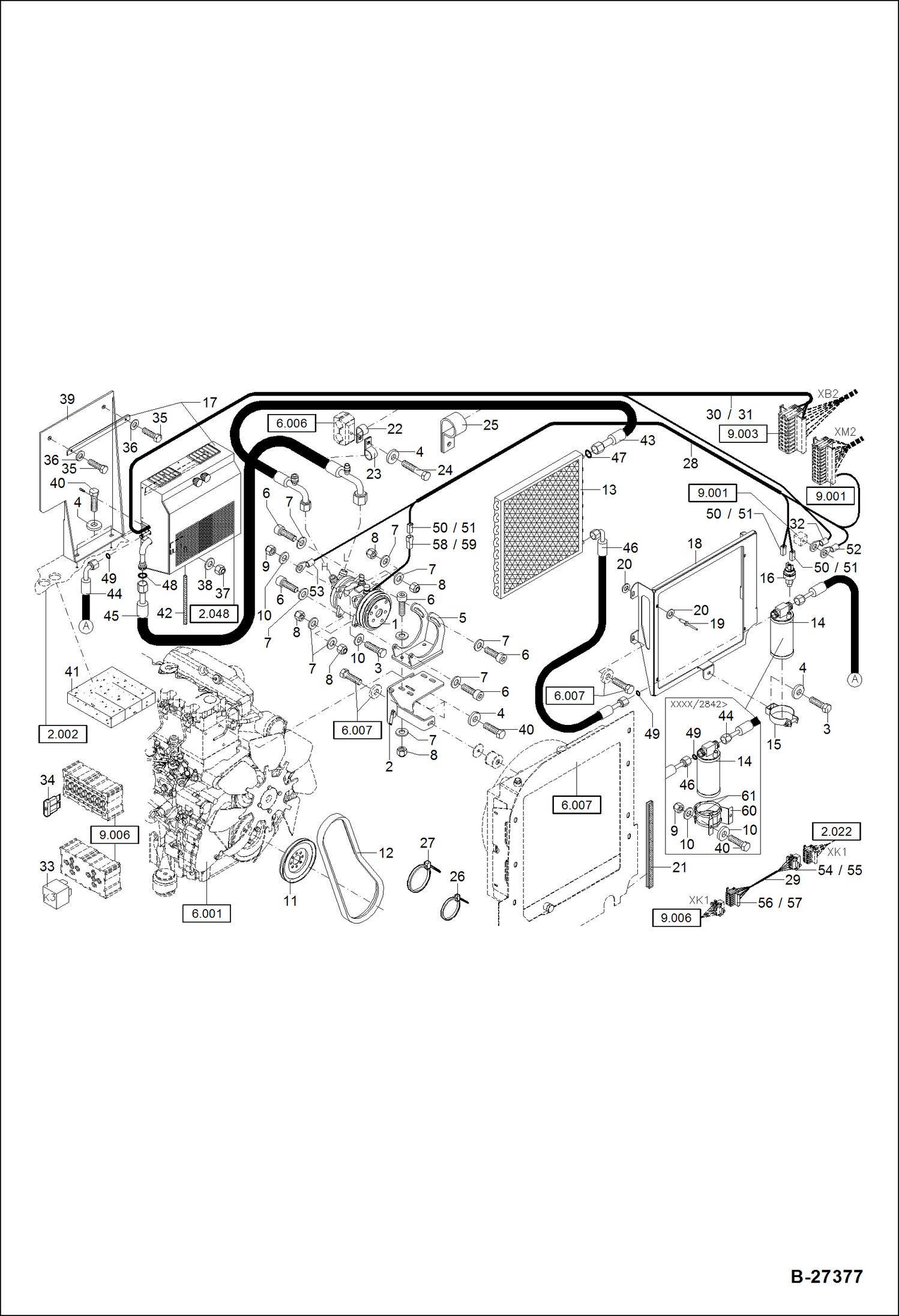

Запчасти Bobcat ZX75 AIR CONDITIONER XXXX/1702 & Abv +1681-1686, 1691-1693 ACCESSORIES & OPTIONS

1

5436662003

COMPRESSOR, A/C

2

6234271025

BRACKET

3

1008707318

BOLT M 8X25

4

1343707057

WASHER 8,4

5

6208771020

BRACKET, COMPRESSOR (KOMPRESSOR)

6

1045707324

BOLT M10X35

7

1290707020

WASHER 10,5

8

1212251013

NUT M 10

9

1212251011

NUT M 8

10

1290707018

WASHER 8,4

11

5411657028

PULLEY

12

1490953974

BELT 13X1425

13

5436662036

CONDENSER, A/C

14

5436662004

DRIER, A/C ASSY

15

5436662005

BRACKET

16

5436662006

PRESSURE SWITCH

17

7022922

EVAPORATOR G55S - Was 5436662033 - A

18

6234272030

BRACKET

19

1940000939

RIVET 4,8X16,5

20

1307707012

WASHER 5,3

21

5354600010

RUBBER PROFILE

22

5000136820

HOSE CLIP 21,0

23

5000210400

HOSE CLIP 23,0

24

1007707719

BOLT M8X60

25

5000210450

HOSE CLIP

26

5653093560

BINDER 4,8X200

27

5350650280

BINDER 7,8X360

28

0234272020

WIRE HARNESS W/Ref. 50-53

29

0234272230

WIRE HARNESS W/Ref. 54-57

30

6190272024

WIRE HARNESS

31

5350249552

CONNECTOR

32

5350246610

CABLE CONNECTOR M 8

33

5050247335

RELAY 12V, 20/30A

34

5050650266

FUSE 20 A

35

1008707213

BOLT M6X20

36

1290707014

WASHER 6,4

37

1212251009

NUT M6

38

1343707055

WASHER 6,4

39

6183772012

BRACKET

40

1008707018

BOLT M 8X20

41

0190371015

INSULATION 20X140X140

42

0465515052

HOSE

43

5436662012

HOSE

44

5436662011

HOSE

45

5436662013

HOSE

46

5436662010

HOSE

47

5821662084

O-RING 14,00X1,78

48

5821662084

O-RING 17,17X1,78

49

7031516

O-RING 10,82 X 1,78 - Was 5436662098 - A

50

5350249536

HOUSING 1-FACH

51

5350246815

FEM TERMINAL

52

5350249597

CABLE CONNECTOR 6,0? M 8

53

5350246600

CABLE CONNECTOR 6,0? M 10

54

5350249692

CONNECTOR 14-FACH

55

5350249695

MAL TERMINAL

56

5350249685

CONNECTOR 18-FACH

57

5350249552

CONNECTOR

58

5350249537

CONNECTOR MALE 1-FACH

59

5350247311

TERMINAL MALE

60

6207772040

SUPPORT BRACKET

61

5603320370

HOSE CLIP
