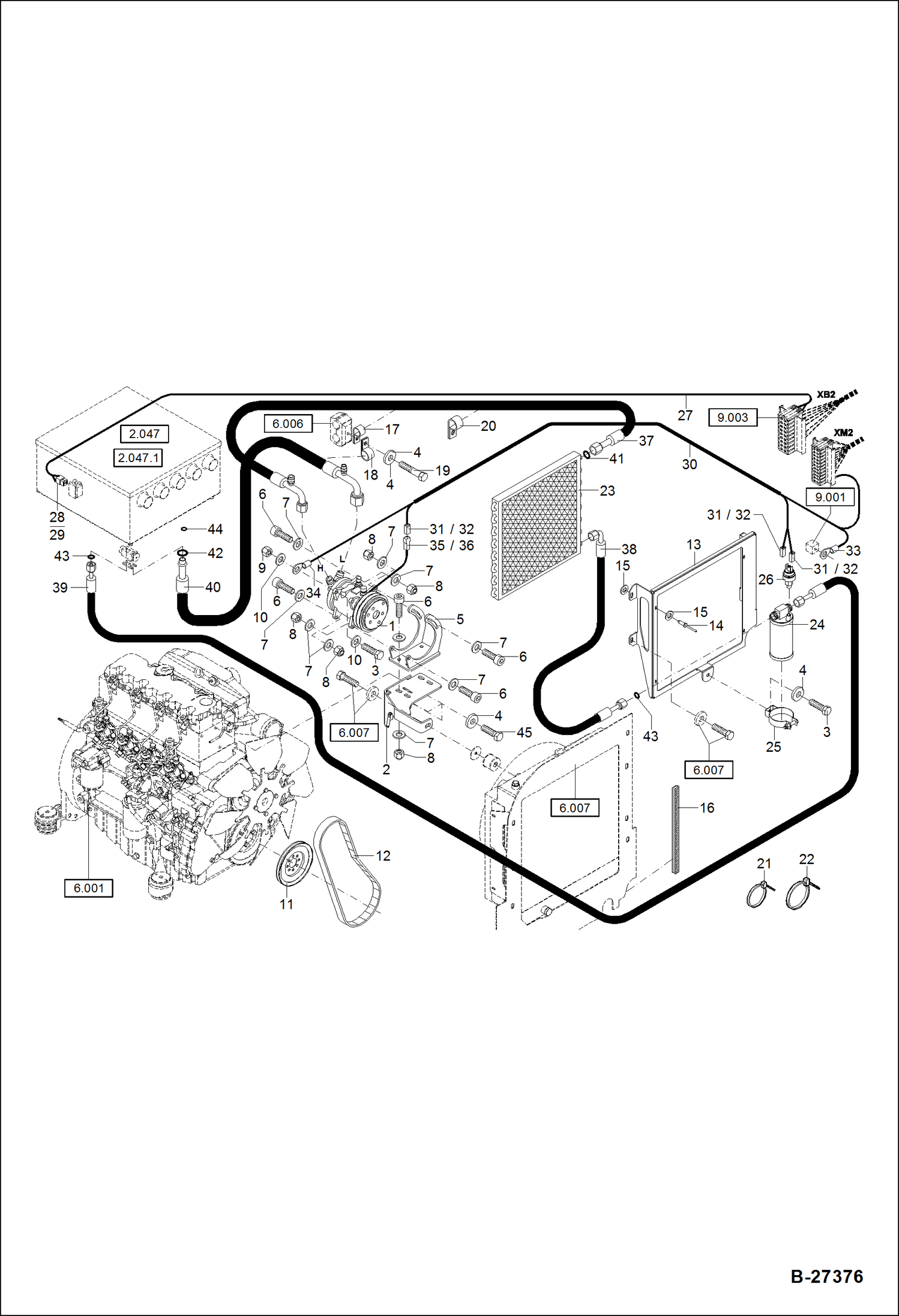

Запчасти Bobcat ZX75 AIR CONDITIONER XXXX/1701 & Bel -1681,1682,1683,1684,1685,1686, 1691,1692,1693 ACCESSORIES & OPTIONS

1

5436662003

COMPRESSOR, A/C

2

6234271025

BRACKET

3

1008707318

BOLT M 8X25

4

1343707057

WASHER 8,4

5

6208771020

BRACKET, COMPRESSOR (KOMPRESSOR)

6

1045707324

BOLT M10X35

7

1290707020

WASHER 10,5

8

1212251013

NUT M 10

9

1212251011

NUT M 8

10

1290707018

WASHER 8,4

11

5411657028

PULLEY

12

1490953974

BELT 13X1425

13

6234272030

BRACKET

14

1940000939

RIVET 4,8X16,5

15

1307707012

WASHER 5,3

16

5354600010

RUBBER PROFILE

17

5000136820

HOSE CLIP 21,0

18

5000210400

HOSE CLIP 23,0

19

1007707719

BOLT M 8X60

20

5000210450

HOSE CLIP

21

5653093560

BINDER 4,8X200

22

5350650280

BINDER 7,8X360

23

5436662036

CONDENSER, A/C

24

5436662004

DRIER, A/C ASSY

25

5436662005

BRACKET

26

5436662006

PRESSURE SWITCH

27

0234272019

WIRE HARNESS W/Ref. 28,29

28

5350249513

PLUG 2-FACH

29

5350246815

FEM TERMINAL

30

0234272020

WIRE HARNESS W/Ref. 31-34

31

5350249536

HOUSING 1-FACH

32

5350246815

FEM TERMINAL

33

5350249597

CABLE CONNECTOR 6,0? M 8

34

5350246600

CABLE CONNECTOR 6,0? M 10

35

5350249537

CONNECTOR MALE 1-FACH

36

5350247311

TERMINAL MALE

37

6190272040

HOSE L=2700 MM

38

6190272043

HOSE L=440 MM

39

5436662090

HOSE L=5150 MM

40

5436662091

HOSE L=5400 MM

41

5821662084

O-RING 14,00X1,78

42

5436662117

O-RING 17,17X1,78

43

7031516

O-RING 10,82 X 1,78 - Was 5436662098 - A

44

5436662099

O-RING 7,5X1,75

45

1008707018

BOLT M 8X20
