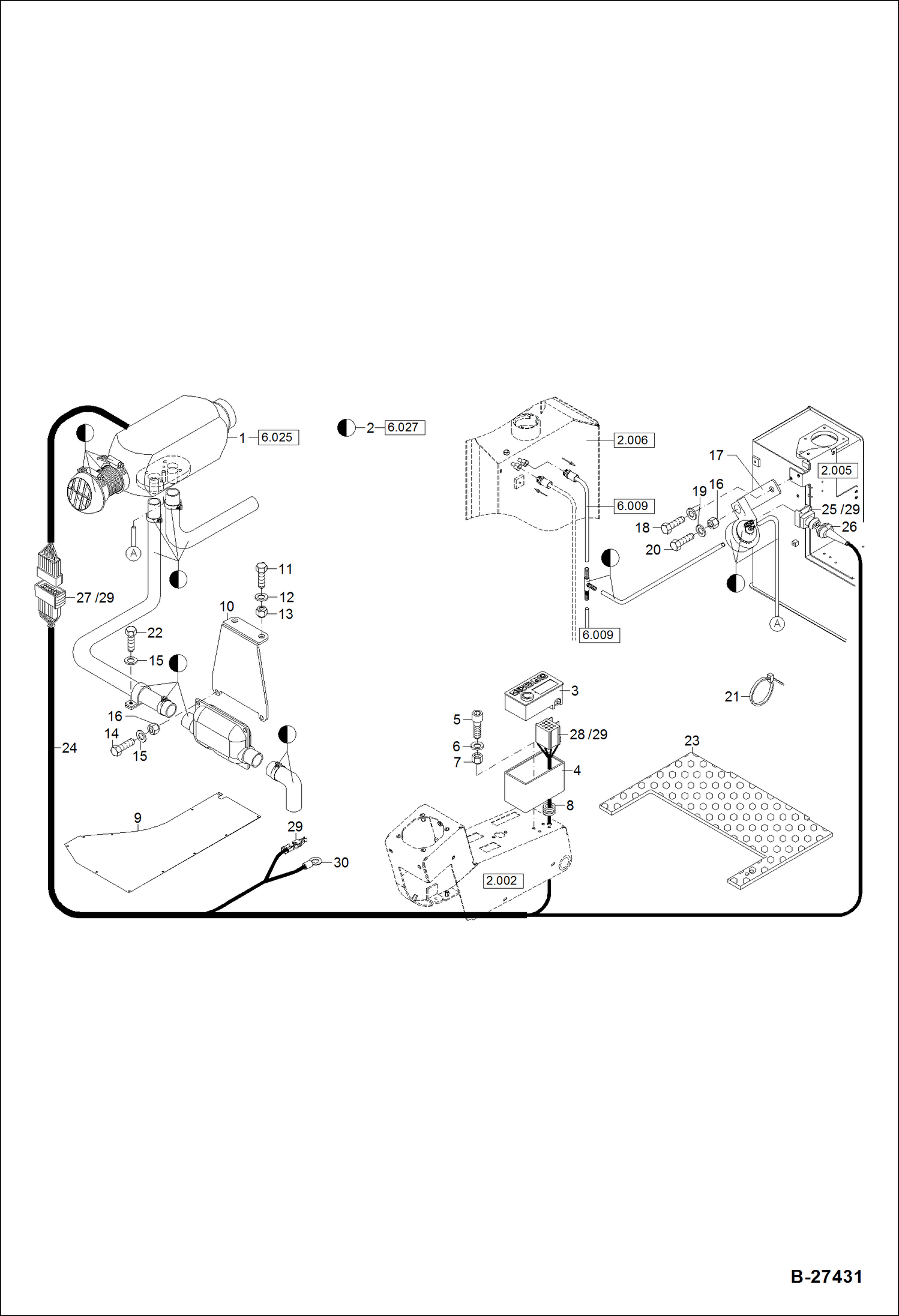

Запчасти Bobcat ZX75 DIESEL OPERATED HEATING - INSTALLATION POWER UNIT

1

5206660275

HEATER D2/12V

2

5206660276

MOUNTING KIT D2

3

5206660170

TIME SWITCH

4

5206660279

HOUSING

5

1041707909

PAN HEAD SCREW M 5X16

6

1307707012

WASHER D5,3

7

1212251007

NUT M 5

8

CABLE COUPLING NLA - Was 5354285500 - A

9

6234239005

COVER

10

6234239010

BRACKET

11

1008707018

BOLT M 8X20

12

1290707018

WASHER 8,4

13

1212251011

NUT M 8

14

1008707213

BOLT M 6X20

15

1290707014

WASHER 6,4

16

1212251009

NUT M 6

17

0190008125

BRACKET

18

1008707513

BOLT M 6X25

19

1343707055

WASHER 6,4

20

1008707713

BOLT M 6X30

21

5653093560

BINDER 4,8X200

22

1008707912

BOLT M 6X16

23

6234239005

COVER

24

6234239030

WIRE HARNESS

25

5350247518

HOUSING (FEMALE)

26

5350247520

CAP

27

5206660443

HOUSING (FEMALE)

28

5350249755

HOUSING (FEMALE)

29

5350249552

CONNECTOR

30

5350249597

CABLE CONNECTOR
