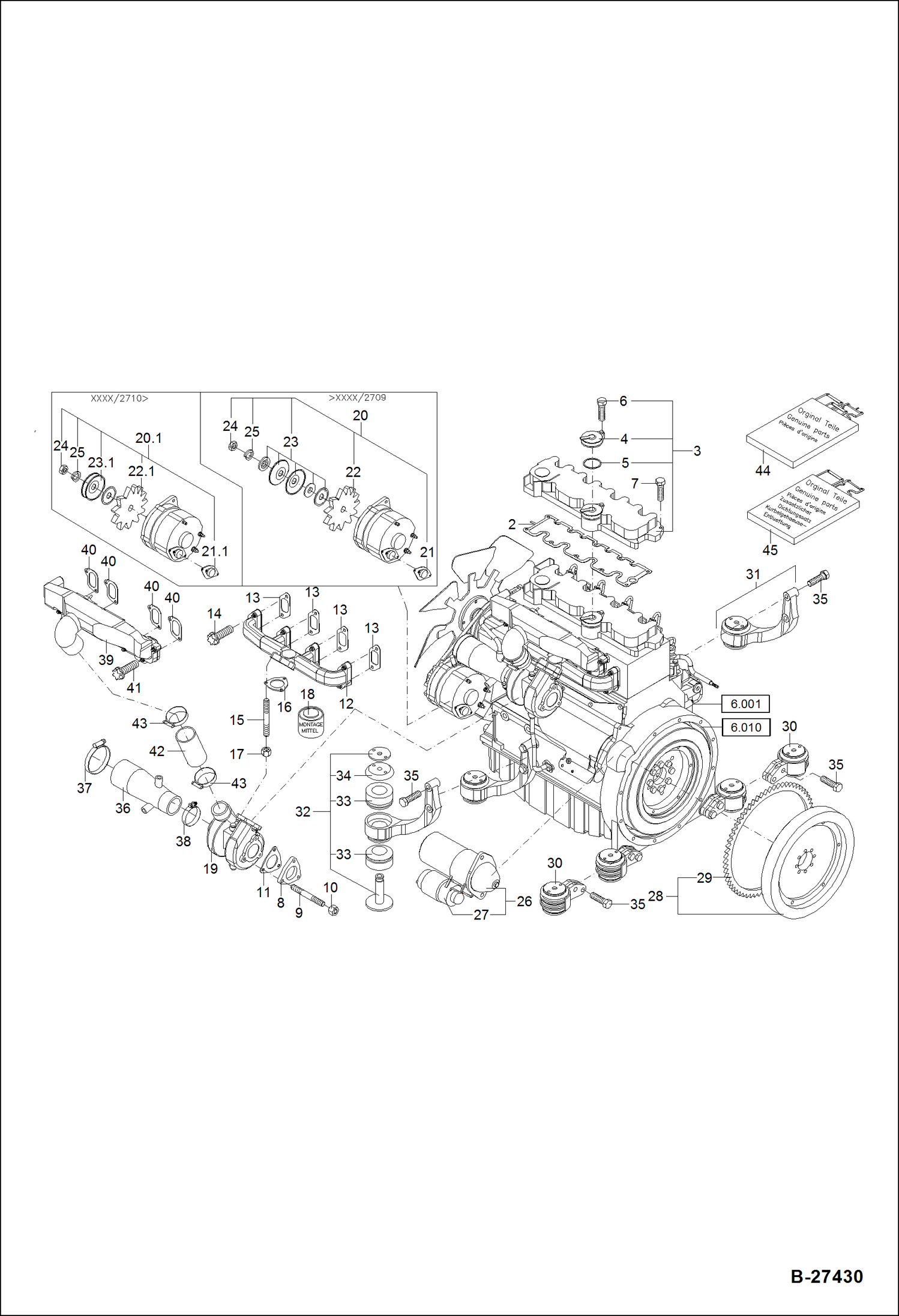

Запчасти Bobcat ZX75 ENGINE PARTS - PART 2 POWER UNIT

2

5411658001

GASKET Was 5411657056 - A

3

COVER, ROCKER ARM NLA - W/Ref. 4-6

4

5411657057

BREATHER VALVE W/Ref. 5

5

O-RING NLA

6

BOLT NLA

7

5411657060

BOLT

8

FLANGE NLA

9

5411656901

STUD

10

5411657804

NUT

11

5411656449

SEAL

12

MANIFOLD, EXHAUST NLA

13

5411656293

SEAL

14

BOLT NLA

15

STUD NLA

16

5411656451

SEAL

17

5411656427

NUT

18

MOUNTING DEVICE NLA

19

5411657984

TURBOCHARGER

20

5411663453

GENERATOR

20

5411663461

GENERATOR

21

5411657135

VOLTAGE REGULATOR

21

5411663640

RELAY, VOLTAGE

22

FAN, ALT NLA

22

5411663638

FAN, ALT

23

5411656946

V-BELT DRIVE CPL.

23

5411663639

PULLEY, ENG

24

5411656994

NUT

25

5411656995

SPRING WASHER

26

5411657120

STARTER W/Ref. 27

27

5411657136

RELAY

28

5411657086

FLYWHEEL W/Ref. 29

29

5411657087

GEAR

30

5411663653

MOUNT, ENG W/Ref. 33-34 - Was 5411663189 - A

31

5411657095

MOUNTING FOOT W/Ref. 33 & 34 - Was 5411663061 - A

32

5411663060

MOUNT ASSY W/Ref. 33-34

33

5411663451

MOUNT, RUBBER

34

5411663452

COVER, MOUNT ENG

35

5411656919

BOLT

36

5411657151

REDUCTION PIECE

37

5411656897

HOSE CLIP

38

5411656802

CLIP

39

MANIFOLD, INTAKE NLA

40

GASKET, INTAKE NLA

41

BOLT NLA

42

HOSE, AIR NLA

43

CLAMP, HOSE NLA

44

5411663644

KIT, GASKET MOTOR

45

5411657138

GASKET SET
