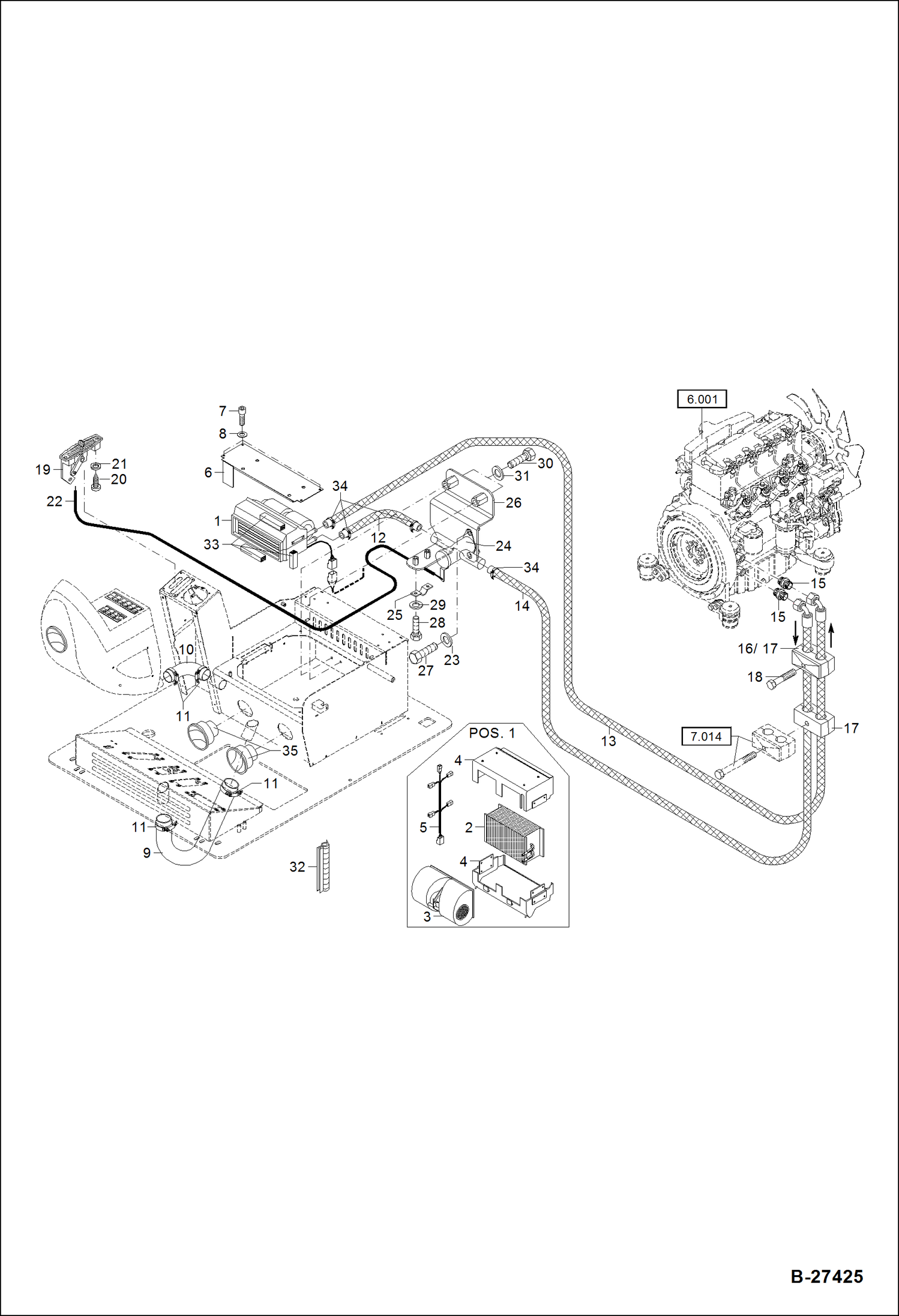

Запчасти Bobcat ZX75 HEATING S/N XXXX/2842 & Abv POWER UNIT

1

5169010010

HEATING

2

5169100027

HEAT EXCHANGE

3

5169010007

FAN Ws 5169100028 - A

4

5169010010

HEATING Was 5169100029 - A

5

5169100030

WIRE HARNESS

6

6190018004

COVER

7

1045707213

BOLT M6X20

8

1290707014

WASHER 6,4

9

5367628905

HOSE

10

7024567

HOSE, AIR - A

11

5660095300

HOSE CLIP

12

0234018210

HOSE, HEATER

13

4116390116

HOSE

14

4116365116

HOSE

15

1915060565

ADAPTER

16

5660200230

COVER PLATE

17

5660199783

CLIP

18

1007707319

BOLT M8X45

19

5388662385

REGULATOR

20

1090707742

SCREW 5,5X13

21

1307707012

WASHER D5,3

22

5388662389

BOWDEN CABLE

23

1290707012

WASHER 5,3

24

5388665014

HEATER VALVE

25

5388665083

BRACKET

26

6234018220

PLATE, VALVE

27

1008707909

BOLT M5X16

28

1008707606

BOLT M4X12

29

1290707010

WASHER 4,3

30

1008707318

BOLT M8X25

31

1343707057

WASHER 8,4

32

5354255965

SEALING SECTION

33

5354640128

NEOPRENE STRIP

34

5660200090

CLAMP

35

5688329382

NOZZLE
