Запчасти Bobcat ZX75 HEATING S/N XXXX/1631 & Bel POWER UNIT

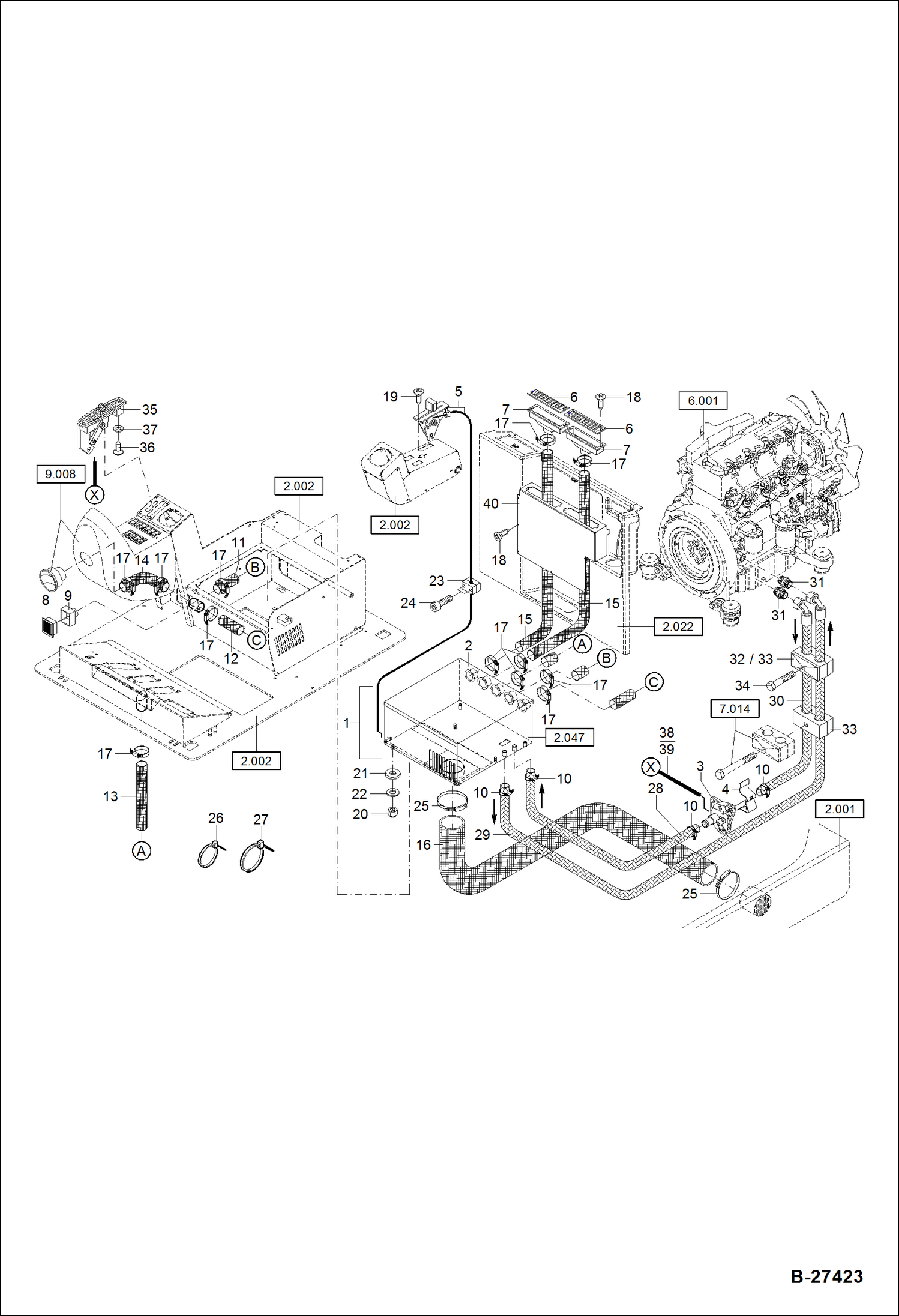

Схема запчастей Bobcat ZX75 - HEATING S/N XXXX/1631 & Bel POWER UNIT

Артикул

Название

Примечание

Количество

1

5436662043

HEATING COMPLETE 12V - Ref. 2-9

2

5436662075

HEATING BOX

3

5436662051

HEATER VALVE

4

5436662053

CLAMP

5

5436662052

FAN CNTRL ASSY

6

5436662054

LOUVER

7

5436662055

ADAPTER

8

5436662056

LOUVER

9

5436662057

ADAPTER

10

5660200090

CLAMP 16-25

11

5367628915

HOSE 42X1700

12

5367628911

HOSE 42X1400

13

5367628913

HOSE 42X1500

14

5367628919

HOSE 42X320

15

5367628909

HOSE 42X750

16

5367628917

HOSE 100X700

17

5603320394

CLAMP 32-50

18

1087707324

SCREW 3.5X16

19

1087707009

SCREW 2,2X9,5

20

1212251011

NUT M 8

21

1343707057

WASHER 8,4

22

1307707018

WASHER 8,4

23

5603330001

CLAMP 106

24

1045707213

BOLT M 6X20

25

5660095500

CLAMP 90-110

26

5653093560

BINDER 4,8X200

27

5350650280

BINDER 7,8X360

28

0234018010

HOSE

29

4116340116

HOSE

30

4116315116

HOSE

31

1915060565

ADAPTER

32

5660200230

COVER PLATE

33

5660199783

CLIP

34

1007707319

BOLT M 8X45

35

5388662385

REGULATOR

36

1090707742

SCREW 5,5X13

37

1307707012

WASHER 5,3

38

5388662389

BOWDEN CABLE

39

1290707012

WASHER 5,3

40

6234006060

CONSOLE

Выбрано товаров: 40
