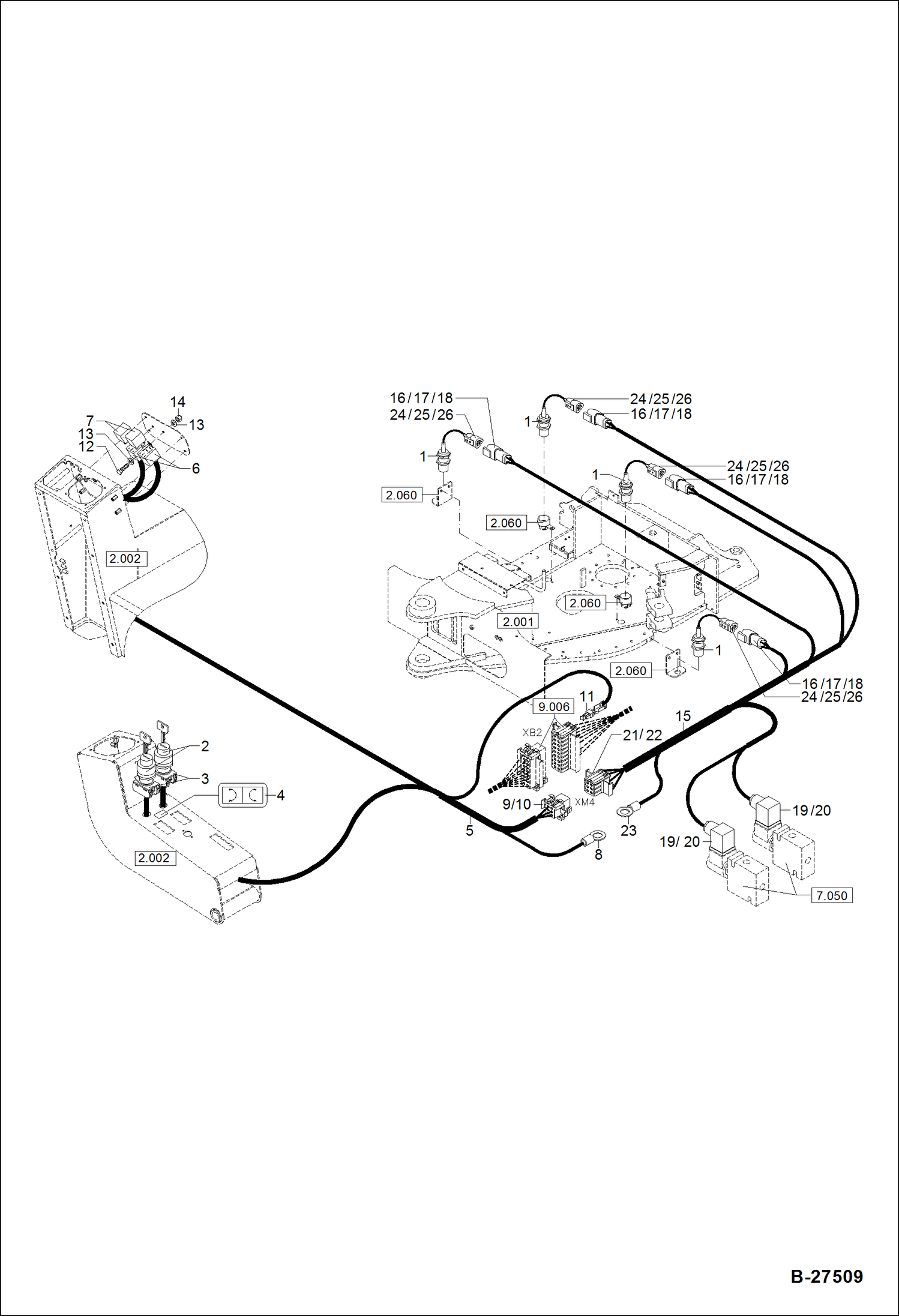

Запчасти Bobcat ZX75 ELECTRIC INSTALLATION - SLEW LIMITATION ELECTRICAL SYSTEM

1

5350639018

SWITCH

2

5054605211

SWITCH

3

5054605213

CONTROL ELEMENT

4

5358609102

SIGN PLATE SCHWENKBEGRENZUNG

5

0234356031

WIRE HARNESS Ref. 6-11

6

5050093090

RELAY BRACKET

7

5050247335

RELAY 12V 20/30A

8

5350246610

CABLE CONNECTOR

9

5350249689

HOUSING(MALE) 6-FACH

10

5350249695

MAL TERMINAL

11

5350249552

CONNECTOR

12

1008707909

BOLT M 5X16

13

1290707012

WASHER 5,3

14

1212251007

NUT M 5

15

0234356032

WIRE HARNESS Ref.

16

5350555317

HOUSING (FEMALE) 3-FACH

17

5350555308

LOCK 3-FACH

18

5350555325

FEMALE TERMINAL

19

5552659550

BOX

20

5552659513

SEAL for Ref. 19

21

5350249683

HOUSING (FEMALE) 6-FACH

22

5350249552

CONNECTOR

23

5350249597

CABLE CONNECTOR

24

5350555315

HOUSING (MALE) 3-FACH

25

5350555307

LOCK 3-FACH

26

5350555321

MALE TERMINAL
