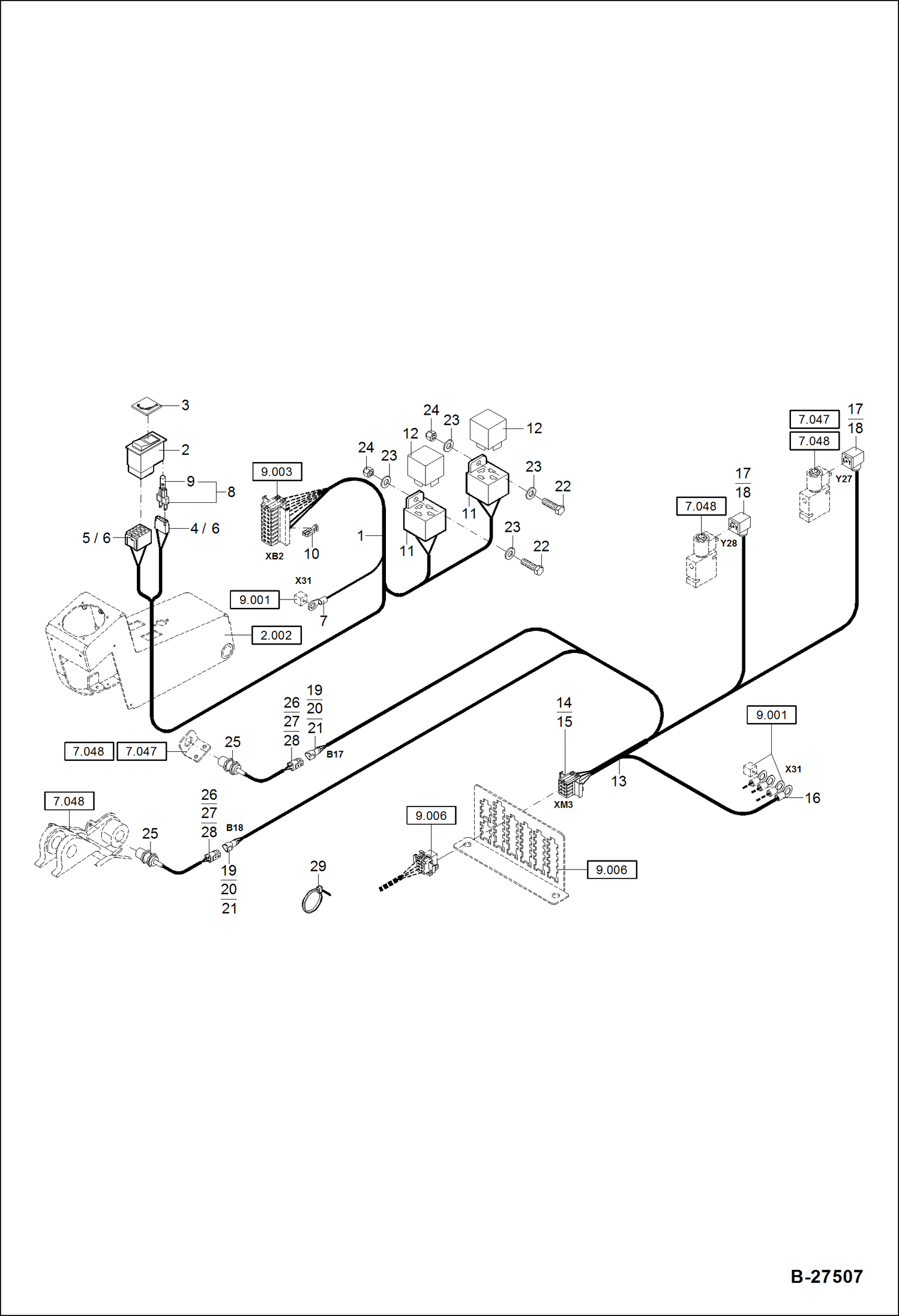

Запчасти Bobcat ZX75 ELECTRIC INSTALLATION - BOOM HEIGHT LIMITATION ELECTRICAL SYSTEM

1

0234241030

WIRE HARNESS Ref. 2-12

2

5050651363

ROCKER SWITCH

3

5358650266

SYMBOL HOEHENBEGRENZUNG

4

5050650231

HOUSING

5

5050650225

HOUSING

6

5350246805

TERMINAL FEMALE

7

5350246610

CABLE CONNECTOR 2,5? M 8

8

5050650226

LAMP W/Ref. 9

9

1813000021

ROUND BULB

10

5350249552

CONNECTOR

11

5050093090

RELAY BRACKET

12

5050247335

RELAY 12V 20/30A

13

0234241031

WIRE HARNESS Ref. 15-21

14

5350249684

CONNECTOR 8-FACH

15

5350249552

CONNECTOR

16

5350249597

CABLE CONNECTOR 6,0? M 8

17

5552659550

BOX W/Ref. 18

18

5552659513

SEAL ZU POS. 16

19

5350555317

HOUSING (FEMALE) 3-FACH

20

5350555308

LOCK 3-FACH

21

5350555325

FEMALE TERMINAL

22

1008707609

BOLT M 5X12

23

1290707012

WASHER 5,3

24

1212251007

NUT M 5

25

5350639017

SWITCH W/Ref. 26-27

26

5350555315

HOUSING (MALE) 3-FACH

27

5350555307

LOCK 3-FACH

28

5350555321

MALE TERMINAL

29

5653093560

BINDER 4,8X200
