ELECTRIC INSTALLATION - IMMOBILIZER

Запчасти Bobcat ZX75 ELECTRIC INSTALLATION - IMMOBILIZER ELECTRICAL SYSTEM

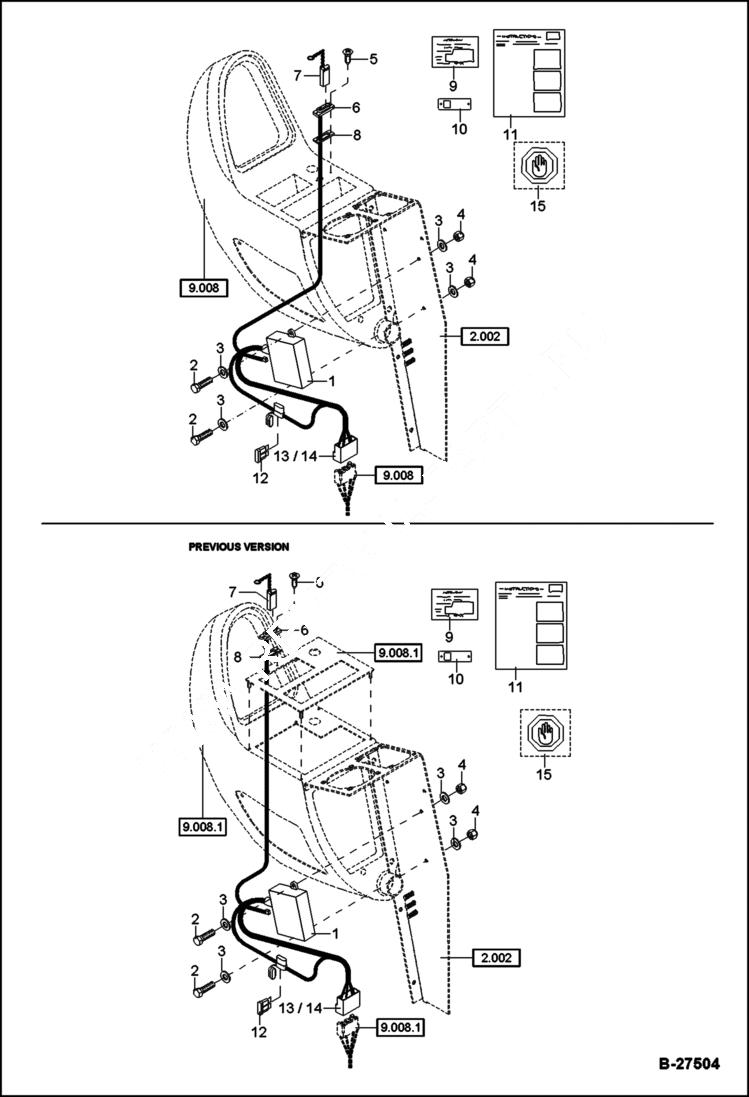

Схема запчастей Bobcat ZX75 - ELECTRIC INSTALLATION - IMMOBILIZER ELECTRICAL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0186856002

IMMOBILIZER KIT W/Ref. 5-12

2

1008707909

BOLT M 5X16

3

1290707012

WASHER 5,3

4

1212251007

NUT M 5

5

1115020018

SCREW 2,9X13

6

5755627401

LOCK

7

5755627400

ACTIVATOR

8

SEAL NLA

9

DECAL NLA

10

DECAL NLA

11

INSTRUCTIONS NLA

12

5050650519

LOCK 1 A

13

5350249506

CONNECTOR

14

5350247311

TERMINAL MALE

15

DECAL NLA - DANGER
