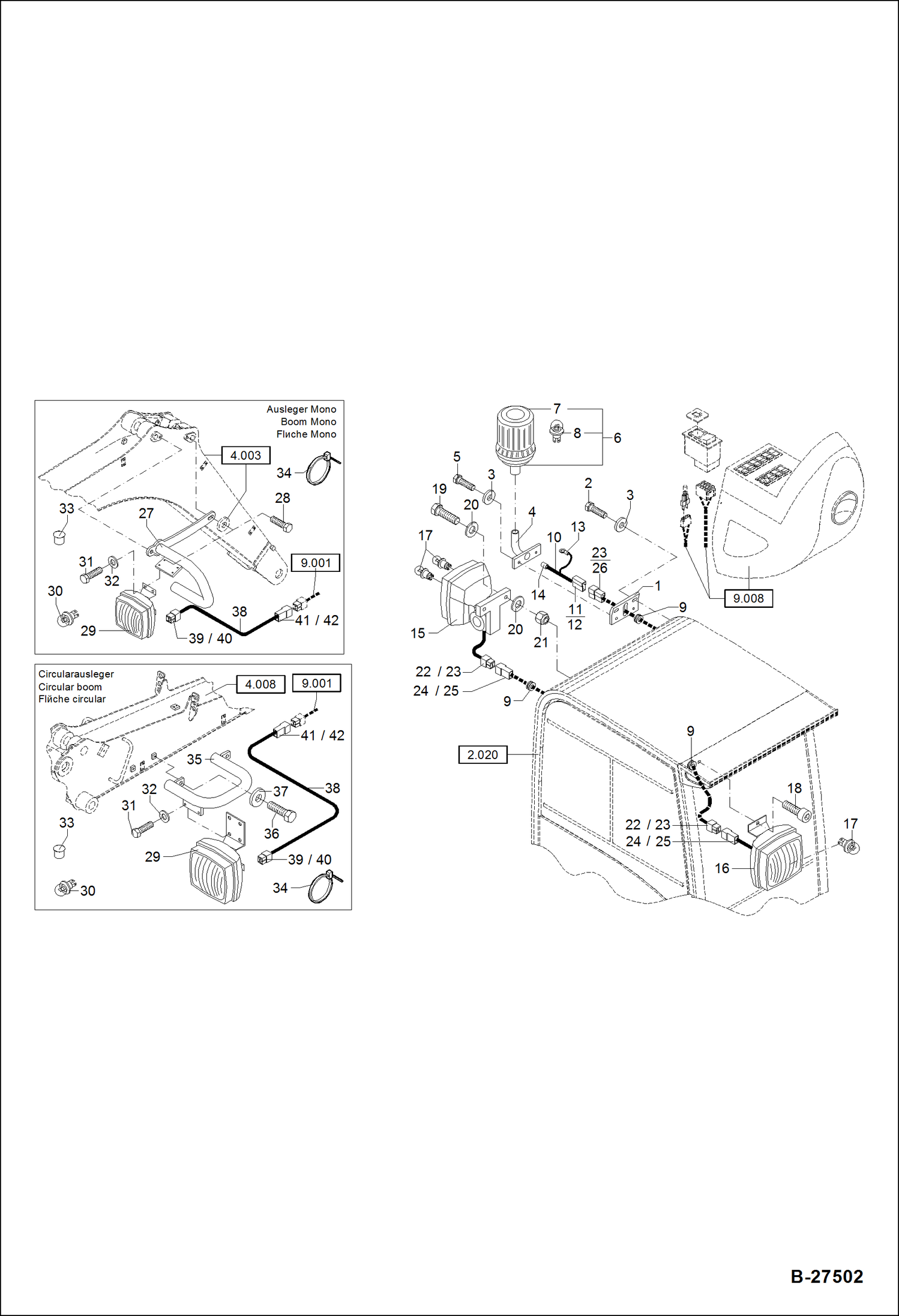

Запчасти Bobcat ZX75 ELECTRIC INSTALLATION - WORKING LIGHT ELECTRICAL SYSTEM

1

0190265005

BRACKET

2

1008707018

BOLT M 8X20

3

1343707057

WASHER 8,4

4

5350637545

PIPE W/Ref. 3,5

5

1008707817

BOLT M 8X16

6

5050022294

LIGHT, BEACON W/Ref. 7,8

7

5050661865

COVER

8

5350642339

BULB 12V 55W H1

9

5653095530

RUBBER GROMMET

10

0190265010

WIRE HARNESS W/Ref. 11-14

11

5350249539

PLUG 2-FACH

12

5350247311

TERMINAL MALE

13

5350246610

CABLE CONNECTOR 2,5? M 8

14

5350246817

SLEEVE

15

5350658675

WORKING LIGHT

16

5350661223

WORKING LIGHT Was 5350661215 - A

17

1813000035

BULB 12V 55W H3

18

1045707623

BOLT M 10X20

19

1008707623

BOLT M 10X20

20

1290707020

WASHER 10,5

21

1212251013

NUT M 10

22

5350249513

PLUG 2-FACH

23

5350246805

TERMINAL FEMALE

24

5350249534

FLAT PLUG 2-FACH

25

5350247311

TERMINAL MALE

26

5050651211

FEMALE 2-FACH

27

6190311002

BRACKET

28

1008707230

BOLT M 12X40

29

5350661223

WORKING LIGHT Was 5350661215 - A

30

1813000035

BULB

31

1008707512

BOLT M 6X10

32

1290707014

WASHER 6,4

33

5558248123

PLUG

34

5350650294

BINDER

35

6190312002

SOCKET

36

1008707124

BOLT M 10X30

37

1343707059

WASHER 10,5

38

0190311010

WIRE HARNESS W/Ref. 39-42

39

5350249513

PLUG 2-FACH

40

5350246805

TERMINAL FEMALE

41

5350249534

FLAT PLUG 2-FACH

42

5350247311

TERMINAL MALE
