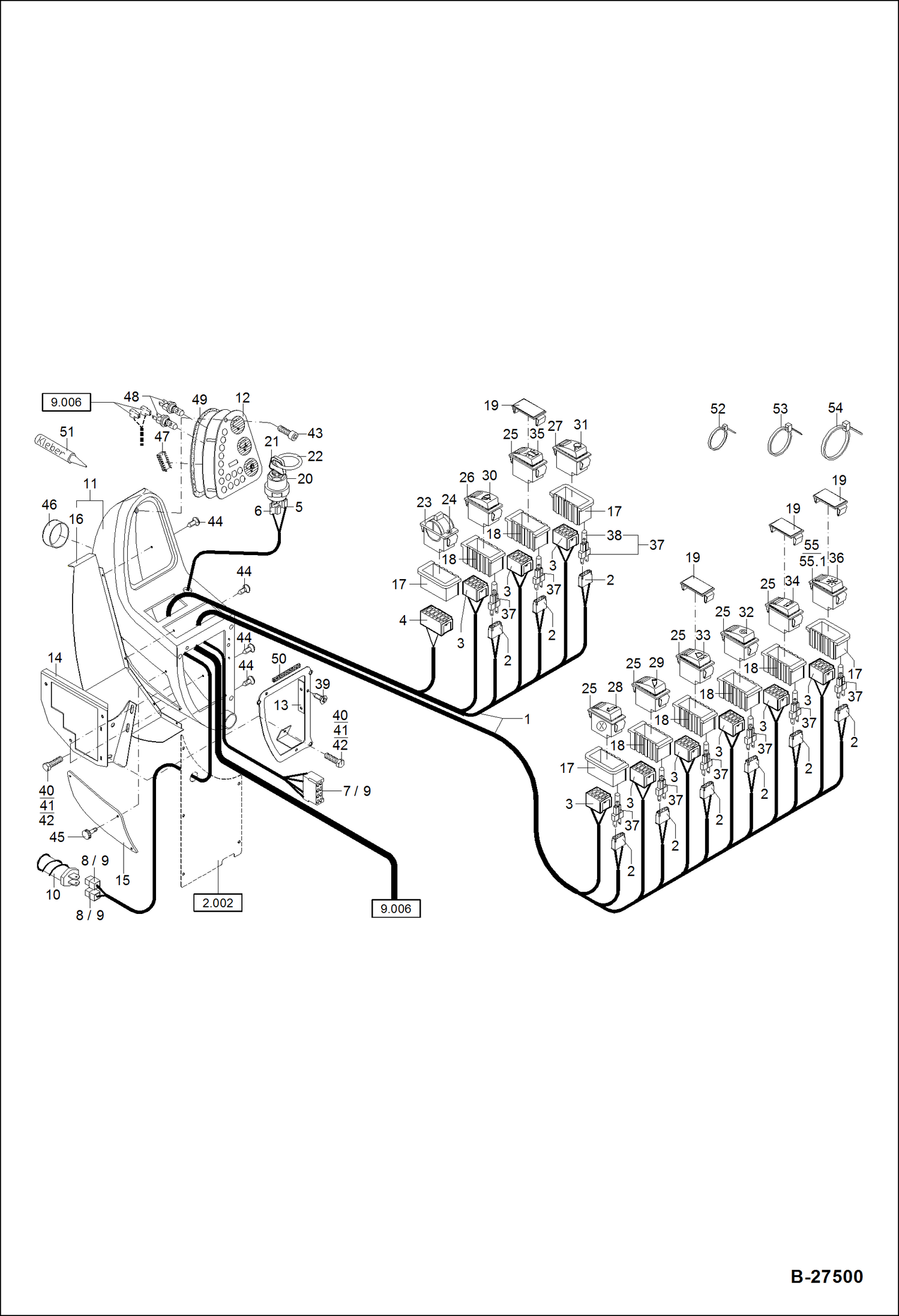

Запчасти Bobcat ZX75 ELECTRIC INSTALLATION - DASH CONSOLE S/N XXXX/2841 & Bel ELECTRICAL SYSTEM

1

5821661133

HARNESS CONSOLE Ref. 2-31 on ILL. B27498

2

5050650231

HOUSING

3

5050650225

HOUSING

4

5050650287

PLUG

5

5050650261

PLUG 4-POLIG

6

5050650262

PLUG 6-POLIG

7

5350249505

HOUSING 8-FACH

8

5350249536

HOUSING 1-FACH

9

5350246805

TERMINAL FEMALE

10

5050076420

CIGARETTE LIGHTER

11

5821662100

HOUSING W/Ref. 16

12

MODULE, CONTROL NLA - W/E-Prom - Order 5821661076 display panel and 0190132015 decal - Was 5821661064 - A

12

7023525

PANEL, DASH W/ O E-Prom - Was 5821661076

13

5821662242

BRACKET

14

5821662245

BRACKET

15

5821662136

COVER

16

5821662104

AIR BAFFLE

17

5050650233

FRAME (END PIECE)

18

5050650232

FRAME (INTERMED. PIECE)

19

5050650230

COVER

20

5050655525

IGNITION LOCK W/Ref. 19

21

5050650256

KEY, IGN

22

1557909026

RING

23

5050650311

SWITCH

24

5050650313

SYMBOL

25

5050651363

ROCKER SWITCH

26

5050651338

SWITCH

27

5050651333

SWITCH TOGGLE

28

5358650341

SYMBOL DECAL SCHNELL (HASE)

29

5358650269

SYMBOL DECAL HAMMER

30

5821662110

SYMBOL DECAL SCHEIBENWISCHER

31

5358650296

SYMBOL ARBEITSSCHEINWERFER

32

5821662112

SYMBOL DECAL LASTWARNEINRICHTUNG

33

5358650281

SYMBOL SCHWIMMSTELLUNG

34

5358650337

SYMBOL ''HORN RUECK HORN, RUECKWAERTS

35

5358650237

SYMBOL OCC. LIGHT RUNDUMLEUCHTE

36

5358650383

DECAL SYMBOL KLIMAANLAGE

37

5050650226

LAMP W/Ref. 49

38

1813000021

ROUND BULB

39

5821662123

SCREW M 5X20

40

1008707609

BOLT M 5X10

41

5821662126

WASHER M 5

42

5821662127

CROWN GEAR M 5

43

1045707510

SCREW M 5X20

44

5821662129

SCREW M 5X10

45

5821662038

KNURLED BOLT M 5X15

46

5821662130

MOZZLE

47

NLA

48

5755656003

KIT BULB & SOCKET

49

5821662131

SEAL

50

5821662132

SEAL

51

5821662137

GLUE KIT

52

5350650294

BINDER 2,5X142

53

5653093560

BINDER 4,8X200

54

5350650280

BINDER 7,8X360

55

5050651363

ROCKER SWITCH

55

5050651384

SWITCH INTERRUPTER
