Запчасти Bobcat ZX75 ELECTRIC INSTALLATION - FUSE PANEL AND RELAY PANEL S/N XXXX/2841 & Bel ELECTRICAL SYSTEM

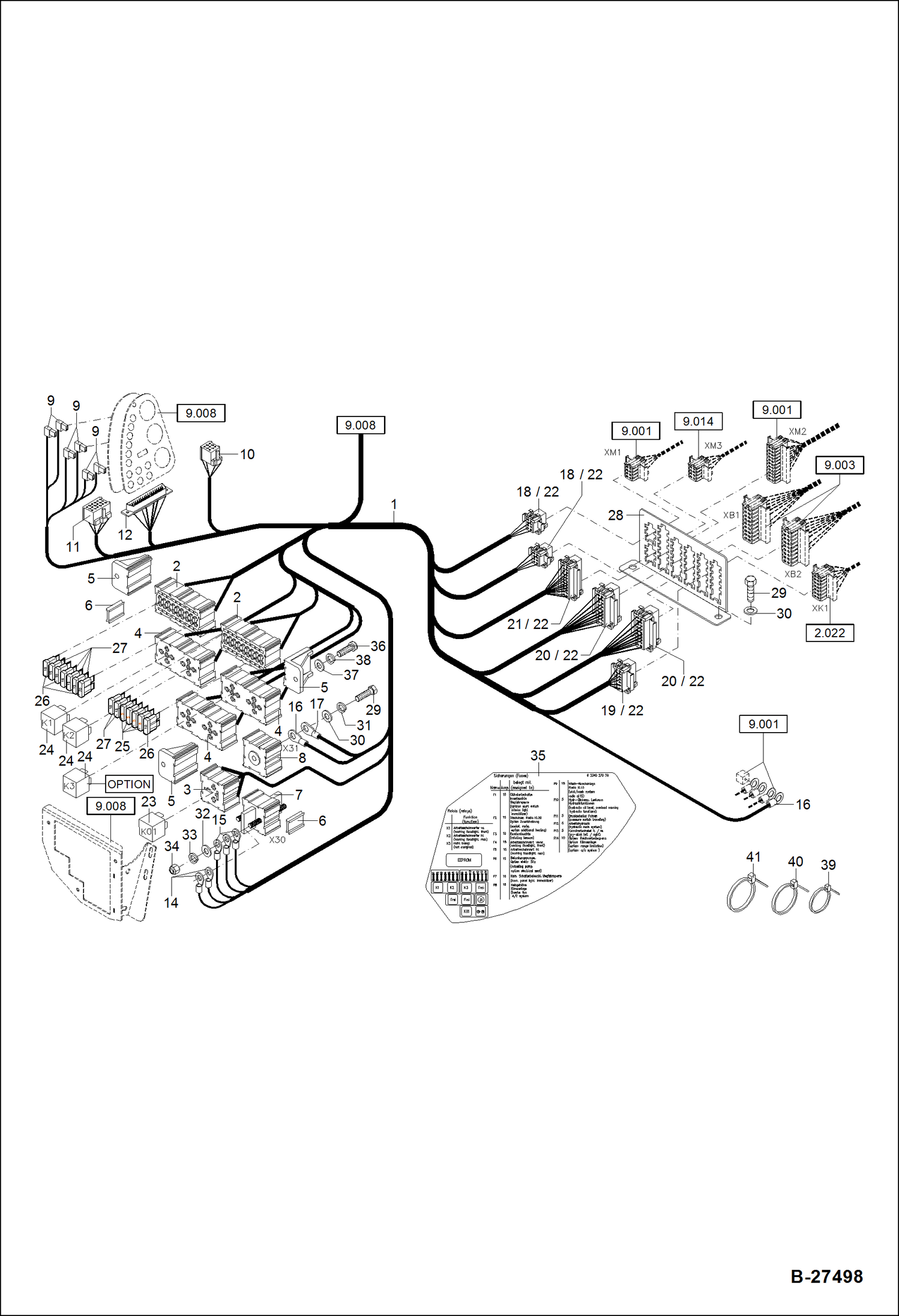

Схема запчастей Bobcat ZX75 - ELECTRIC INSTALLATION - FUSE PANEL AND RELAY PANEL S/N XXXX/2841 & Bel ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

5821661133

HARNESS CONSOLE Ref. 2-31 & Ref. 2-9 on ILL. B27500

2

5050650473

FUSE MODULE 7-FACH

3

5050650464

POWER RELAY LINE 1-FACH

4

5050650472

RELAY MODULE 2-FACH

5

5050650468

MOUNT

6

5050650470

CONNECTOR

7

5050650466

MODULE 2-FACH M6

8

5050650475

DISTRIBUTOR M8

9

CONNECTOR (FEM) NLA -1 Fach - Was 5350249776 - A

10

5350249757

CONNECTOR 9-FACH

11

5350249753

CONNECTOR 18-FACH

12

5350249780

CONNECTOR 37-FACH

14

5350246700

RING 2,5? M6

15

5350249600

CABLE CONNECTOR 6,0? M6

16

5350249597

CABLE CONNECTOR 6,0? M8

17

5350246610

CABLE CONNECTOR 2,5? M8

18

5350249690

CONNECTOR 8-FACH

19

5350249692

CONNECTOR 14-FACH

20

5350249693

CONNECTOR 18-FACH

21

5350249694

CONNECTOR 22-FACH

22

5350249695

MAL TERMINAL

23

5050247810

RELAY 12V, 70A

24

5050247335

RELAY 12V, 20/30A

25

5050650301

5A FUSE 5 A

26

5050650264

10A FUSE 10 A

27

5050650271

15A FUSE 15 A

28

6234027020

BRACKET

29

1008707817

BOLT M 8X16

30

1290707018

WASHER 8,4

31

1321707018

SPRING WASHER B 8

32

1290707014

WASHER 6,4

33

1321707013

WASHER A 6

34

1212251009

NUT M 6

35

0238027030

LEGEND

36

5821662125

SCREW M 5X12

37

5821662126

WASHER M 5

38

1327707012

WASHER A 5

39

5350650294

BINDER 2,5X142

40

5653093560

BINDER 4,8X200

41

5350650280

BINDER 7,8X360

Выбрано товаров: 40
