Запчасти Bobcat ZX75 ELECTRIC INSTALLATION - FLOOR FRAME S/N XXXX/2842 & Abv ELECTRICAL SYSTEM

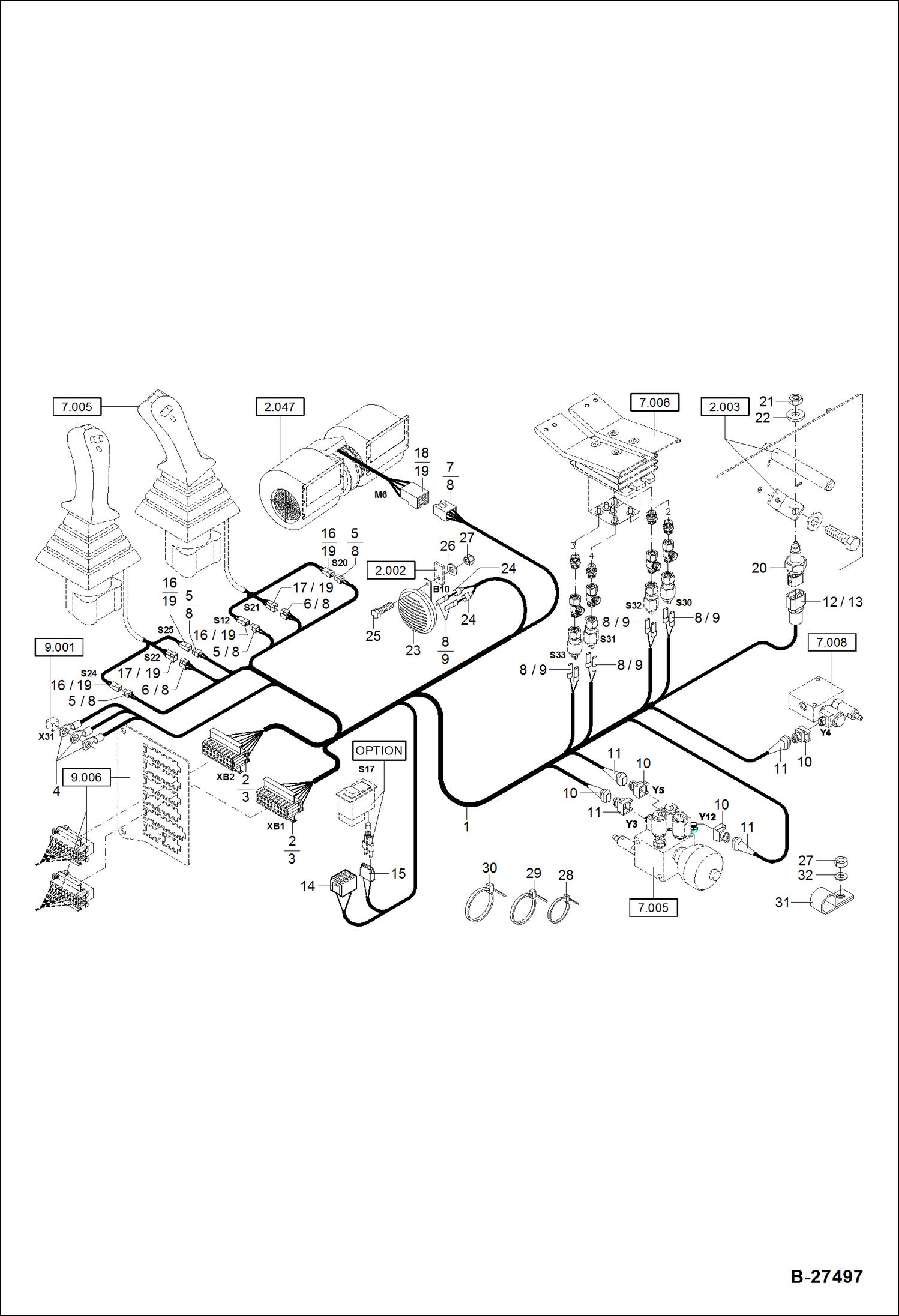

Схема запчастей Bobcat ZX75 - ELECTRIC INSTALLATION - FLOOR FRAME S/N XXXX/2842 & Abv ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

0234007070

WIRE HARNESS CPL.

2

5350249686

CONNECTOR 18-FACH

3

5350249552

CONNECTOR

4

5350249597

CABLE CONNECTOR 6,0? M 8

5

5350249513

PLUG 2-FACH

6

5350249541

HOUSING 3-FACH

7

5350249508

PLUG 4-FACH

8

5350246805

TERMINAL FEMALE

9

5653095677

INSULATING SOCKET

10

5350247518

HOUSING (FEMALE)

11

5350247520

CAP

12

5350249545

HOUSING

13

5350249546

RUBBER GRAMMET

14

5050650225

HOUSING 8-FACH

15

5050650231

HOUSING 2-FACH

16

5350249534

FLAT PLUG 2-FACH

17

5350249542

PLUG 3-FACH

18

5350249509

HOUSING (MALE) 4-FACH

19

5350247311

TERMINAL MALE

20

5050650295

SWITCH hyd controls lockout, left console

21

1208707614

NUT

22

1290707022

WASHER

23

5050022200

HORN

24

5653095570

CAP

25

1008707018

BOLT M 8X20

26

1290707018

WASHER 8,4

27

1212251011

NUT M 8

28

5350650294

BINDER 2,5X142

29

5653093560

BINDER 4,8X200

30

5350650280

BINDER 7,8X360

31

5000095200

HOSE CLIP

32

1343707057

WASHER 8,4

Выбрано товаров: 32
