Запчасти Bobcat ZX75 ELECTRIC INSTALLATION - UPPER CARRIAGE S/N XXXX/2709 & Bel ELECTRICAL SYSTEM

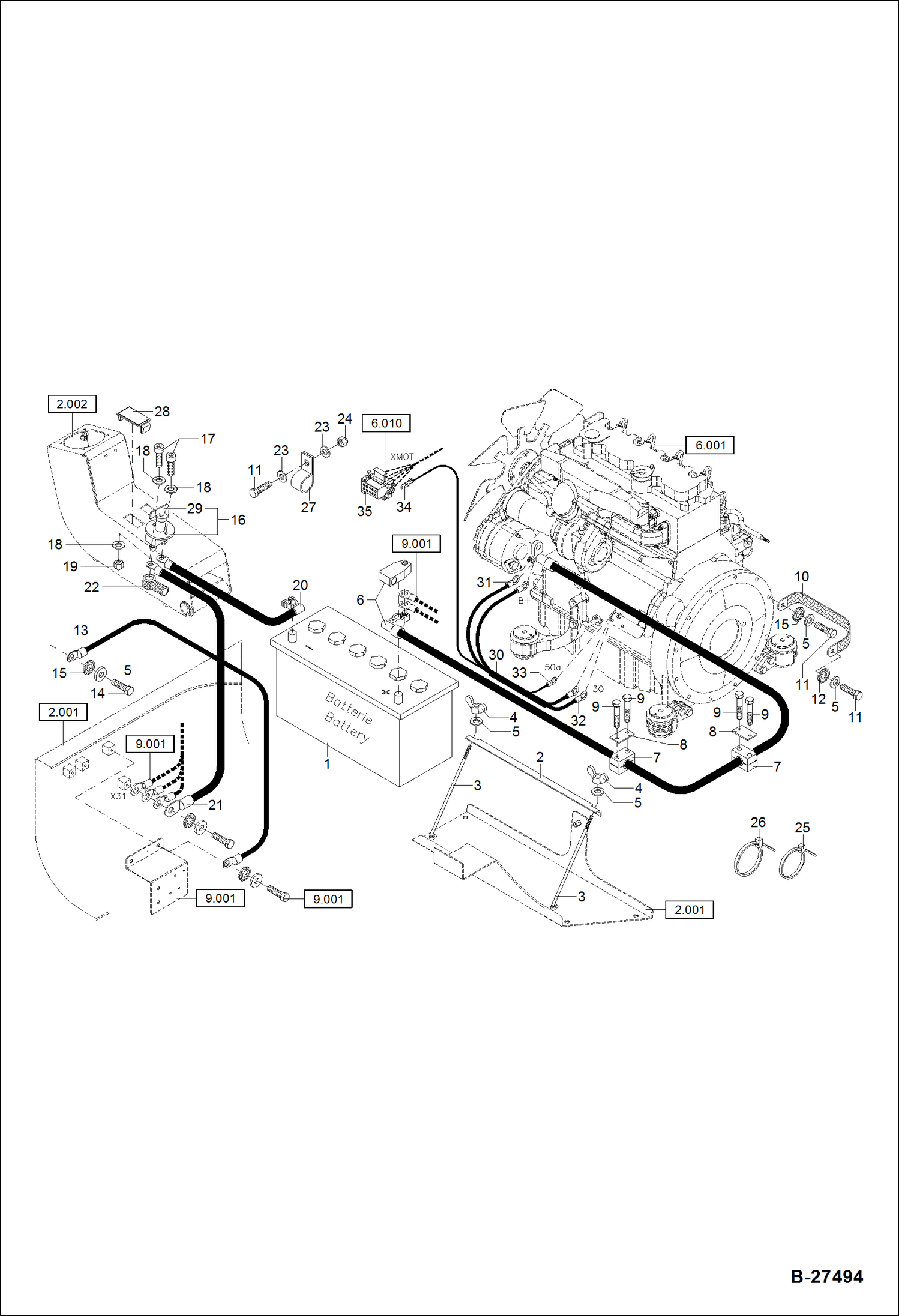

Схема запчастей Bobcat ZX75 - ELECTRIC INSTALLATION - UPPER CARRIAGE S/N XXXX/2709 & Bel ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

5159650932

BATTERY

2

0331411006

ANGLE Was 6331411006 - A

3

0331411005

STUD

4

1245707011

WING NUT M 8

5

1343707057

WASHER 8,4

6

0234007034

BATTERY CABLE

7

5660199615

HOSE CLIP

8

5660200122

COVER PLATE

9

1007707813

BOLT M 6X35

10

5653246930

EARTH CABLE 300MM

11

1008707018

BOLT M 8X20

12

1327707022

TOOTHED LOCK WASHER 12,5

13

0073657067

CABLE, GROUND 500MM

14

1008707817

BOLT M 8X12

15

1327707018

TOOTHED LOCK WASHER 8,4

16

5522655660

SWITCH INTERRUPTER W/Ref. 29

17

1045707213

BOLT M 6X20

18

1290707014

WASHER 6,4

19

1212251009

NUT M 6

20

0190007135

BATTERY CABLE

21

0190007136

CABLE, GROUND

22

5050580450

RUBBER

23

1290707018

WASHER 8,4

24

1212251011

NUT M 8

25

5653093560

BINDER 4,8X200

26

5350650280

BINDER 7,8X290

27

5000210410

HOSE CLIP 31,8

28

5050650230

COVER

29

5522655651

KEY INTERRUPTER

30

0234007080

WIRE HARNESS MOTOR - W/Ref. 31-34

31

5350249600

CABLE CONNECTOR 6,0? M6

32

5350249597

CABLE CONNECTOR 6,0? M 8

33

5350246820

CABLE CONNECTOR 2,5? M 5

34

5350249695

MAL TERMINAL

35

5350249691

CONNECTOR MALE 8-FACH

Выбрано товаров: 35
