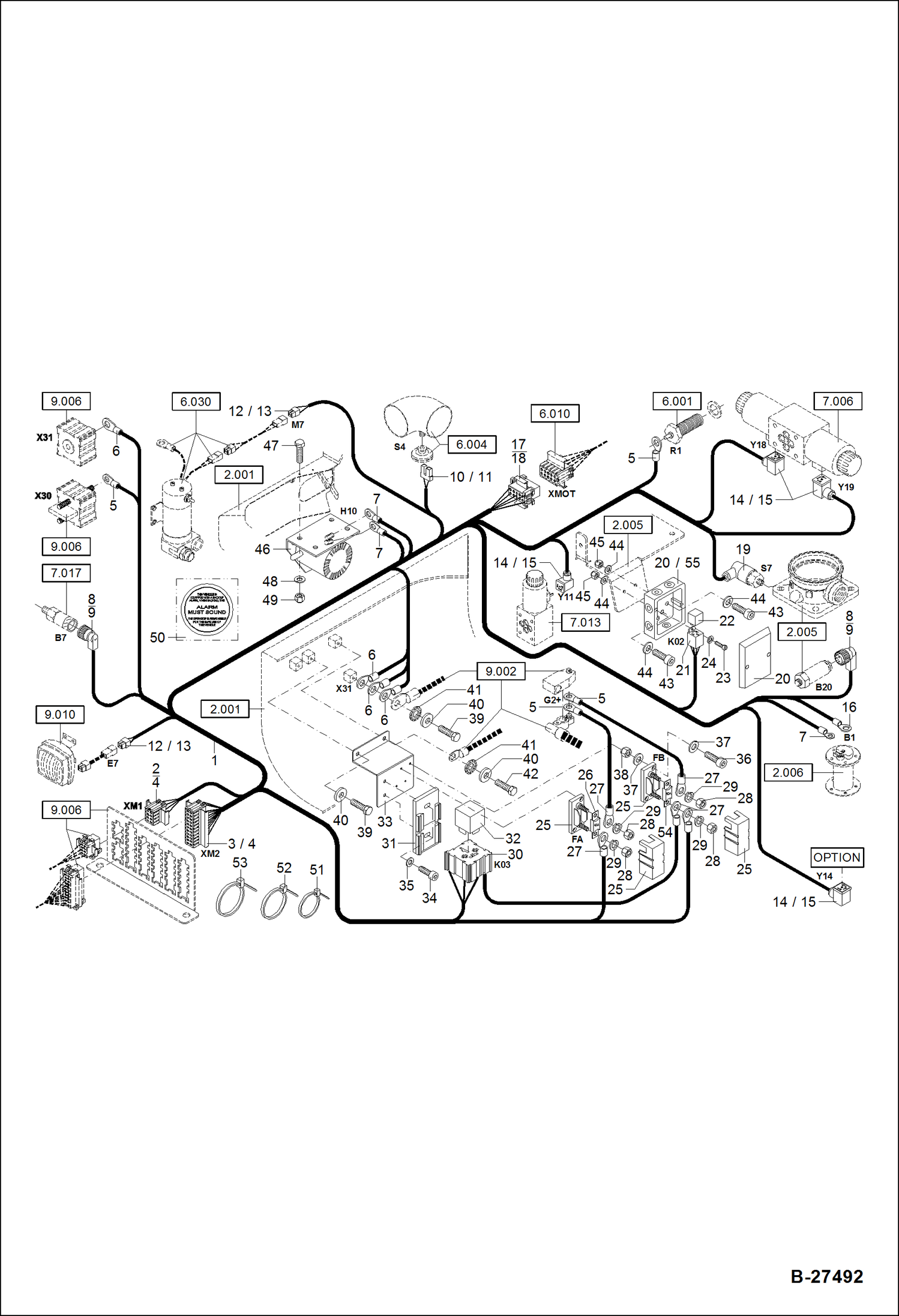

Запчасти Bobcat ZX75 ELECTRIC INSTALLATION - MACHINE S/N XXXX/2841 & Bel ELECTRICAL SYSTEM

1

0234007060

WIRE HARNESS Ref. 2-32

2

5350249684

CONNECTOR 8-FACH

3

5350249687

CONNECTOR 22-FACH

4

5350249552

CONNECTOR

5

5350249600

CABLE CONNECTOR 6,0? M 6

6

5350249597

CABLE CONNECTOR 6,0? M 8

7

5350241104

CABLE CONNECTOR 2,5? M 4

8

5350249655

SOCKET HOUSING

9

5350249661

CAP 90GRAD

10

5350249576

HOUSING 2-FACH

11

5350249579

FEM TERMINAL

12

5350249513

PLUG 2-FACH

13

5350246805

TERMINAL FEMALE

14

5552659550

BOX

15

5552659513

SEAL

16

5350246820

CABLE CONNECTOR 2,5? M 5

17

5350249691

CONNECTOR MALE 10-FACH

18

5350249695

MAL TERMINAL

19

5380660826

PLUG CONNECTION

20

5208640228

BOX STARTERBOX

21

5050247815

BRACKET RELAY

22

5050247810

RELAY 12V 70A

23

1041707506

BOLT M 4X10

24

1290707010

WASHER 4,3

25

5050650450

HOLDER W/Ref. 28,29

26

5050650480

40A FUSE 40 A

27

5350249590

CABLE CONNECTOR 6,0? M 5

28

1210707007

NUT M 5

29

1321707012

WASHER B 5

30

5050650464

POWER RELAY LINE

31

5050650491

BRACKET

32

5050247810

RELAY

33

6190007010

BRACKET

34

1045707909

BOLT M 5X16

35

1290707012

WASHER 5,3

36

1045707906

SCREW M 4X16

37

1290707010

WASHER 4,3

38

1212251006

NUT M 4

39

1008707517

BOLT M 8X12

40

1343707057

WASHER 8,4

41

1327707018

TOOTHED LOCK WASHER 8,4

42

1008707018

BOLT M 8X20

43

1045707213

BOLT M 6X20

44

1290707014

WASHER 6,4

45

1212251009

NUT M 6

46

5755627342

BACK UP BUZZER BAC-A-LARM

47

1008707018

BOLT M 8X20

48

1290707018

WASHER 8,4

49

1212251011

NUT M 8

50

5358609506

DECAL, BACKUP ALARM

51

5350650294

BINDER 2,5X142

52

5653093560

BINDER 4,8X200

53

5350650280

BINDER 7,8X360

54

5050650452

FUSE 50 A

55

5208640226

CLIP
