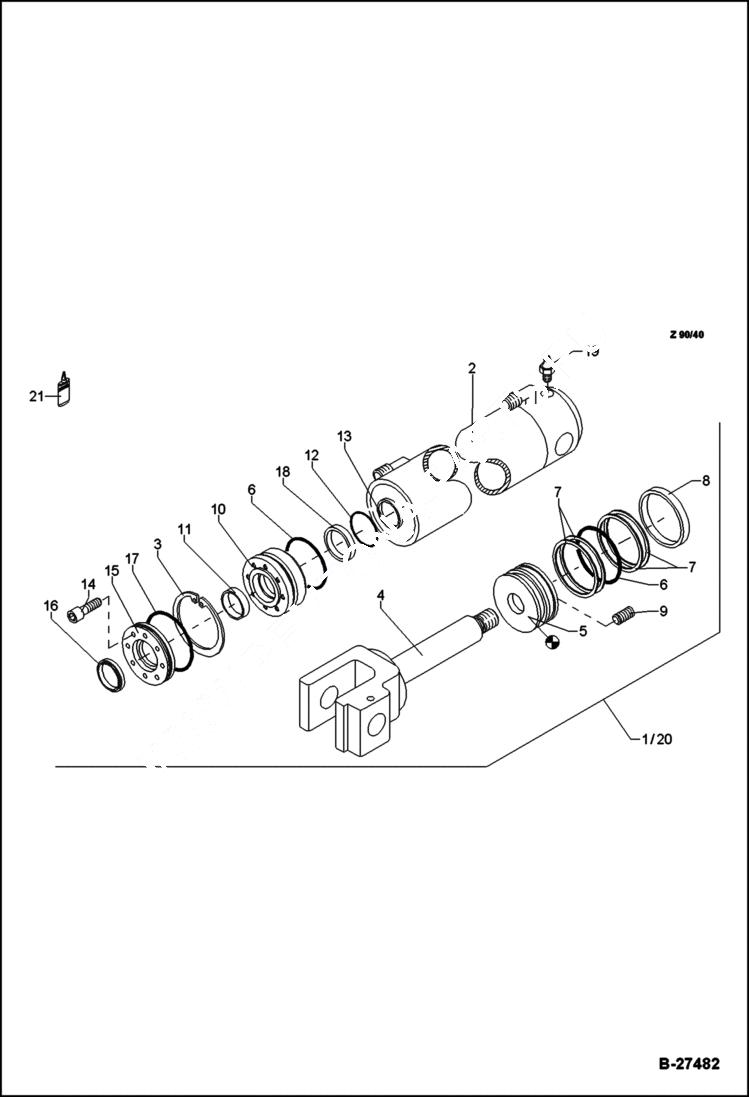

Запчасти Bobcat ZX75 HYDRAULIC CYLINDER - SWIVELLING BUCKET HYDRAULIC SYSTEM

1

6502045000

HYDRAULIC CYLINDER Z 90/40

2

6502045003

PIPE

3

1456622670

CIRCLIP

4

6502045013

PISTON ROD CPL.

5

0502027015

PISTON

6

1971956591

O-RING 78,75X5,33

7

1966954404

BACK-UP RING

8

5060592800

GUIDING RING

9

1136347417

STUD M 8X10

10

0500704117

BUSHING

11

1965015400

ROD SEAL

12

1971956339

O-RING 44,05X3,53

13

5060592830

GUIDING RING

14

1045707513

BOLT M 6X25

15

0500701019

COUNTER FLANGE 95X14

16

1974930108

SCRAPER RING

17

1971956243

O-RING 82,22X2,62

18

1965840309

ROD SEAL

19

1607003006

GREASE NIPPLE

20

1976999940

SEAL KIT Ref. 6,7,8,11,12,13,16

21

GLUE NLA - Was MCS001036A - A
