Запчасти Bobcat ZX75 HYDRAULIC CYLINDER - SUPPORT BLADE HYDRAULIC SYSTEM

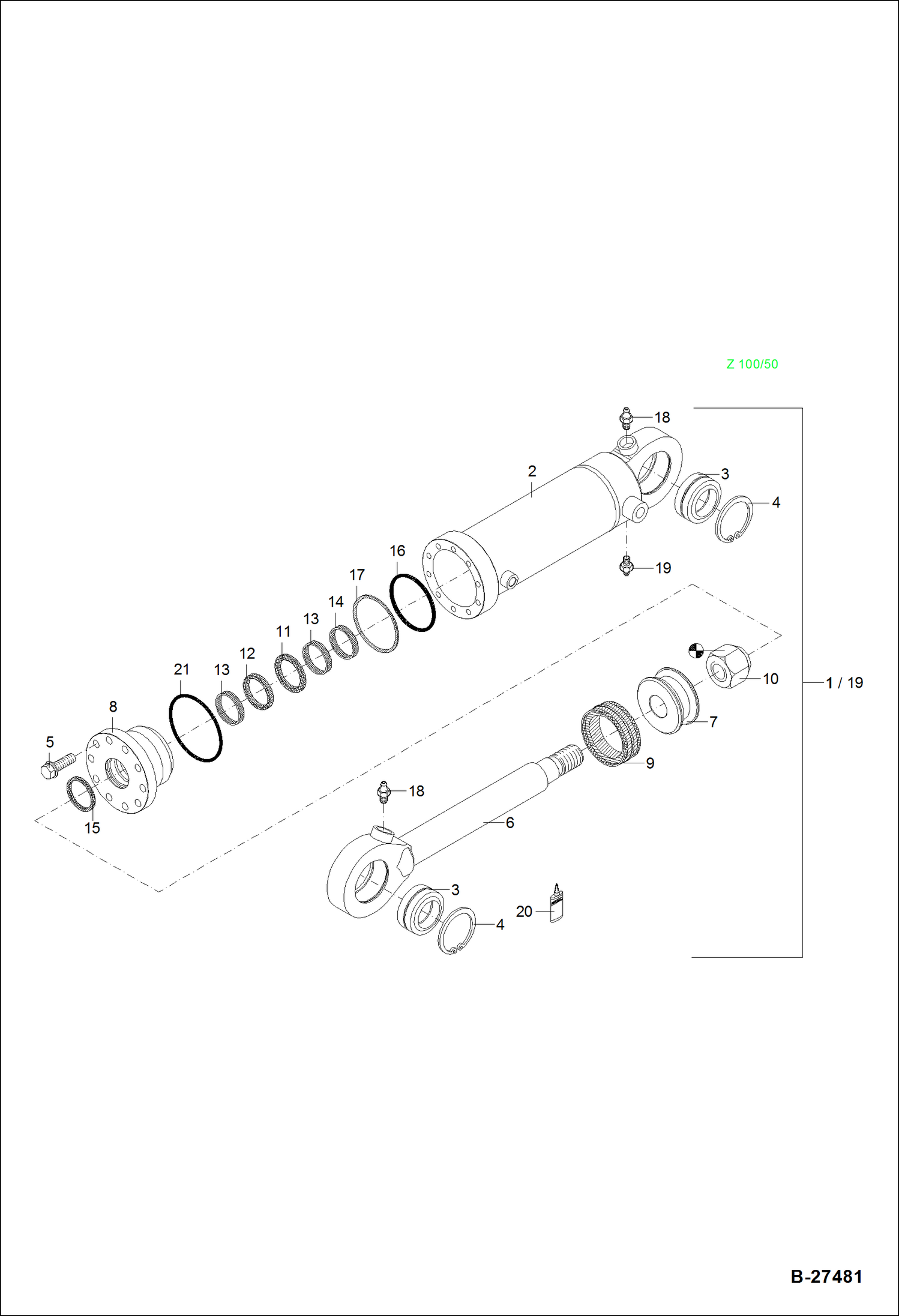

Схема запчастей Bobcat ZX75 - HYDRAULIC CYLINDER - SUPPORT BLADE HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6500925500

HYDR. CYLINDER W/Ref. 2-17,21

2

6500925503

CYLINDER BARREL

3

1950000814

LINKAGE BEARING

4

1456622363

CIRCLIP 75X2,5

5

1017370230

BOLT M 12X40

6

6500925111

PISTON ROD

7

0500926015

PISTON

8

0500949017

BUSHING

9

1634935018

PISTON SEAL

10

1212251832

NUT M 36X3

11

1965055050

SEAL

12

1960955050

GROOVE

13

5060501050

ROAD SEAL

14

5060502050

ROD SEAL

15

1974950050

SCRAPER RING

16

1971958513

O-RING 89,2X5,7

17

1966960100

BACK UP RING 100X90,7X1,7

18

1607003006

GREASE NIPPLE

19

1976999279

SEAL KIT

20

GLUE NLA - Was MCS001036A - A

21

1971958513

O-RING

Выбрано товаров: 21
