Запчасти Bobcat ZX125 HYDRAULIC CYLINDER - BOOM - MONO BOOM Z 95/60 HYDRAULIC SYSTEM

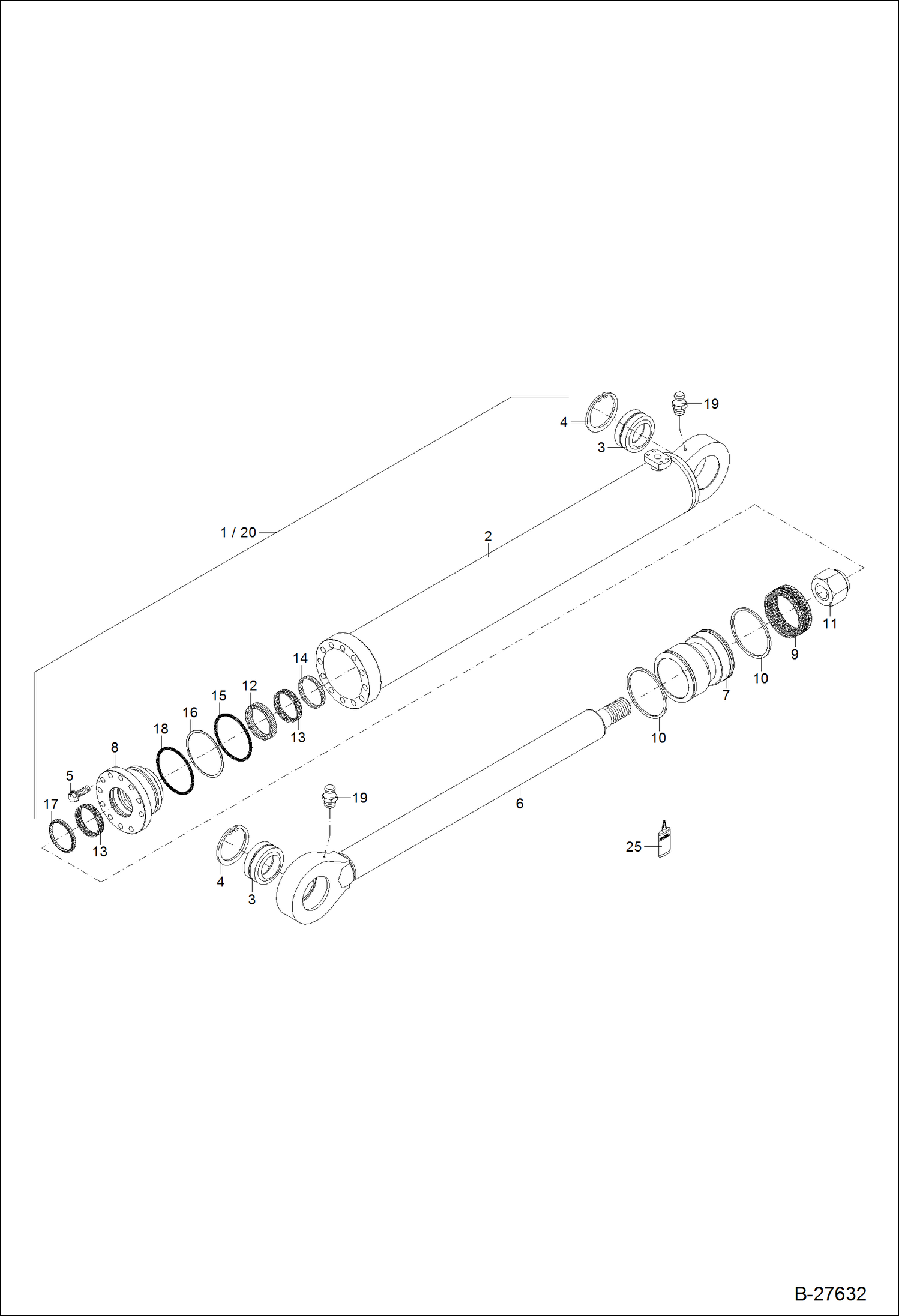

Схема запчастей Bobcat ZX125 - HYDRAULIC CYLINDER - BOOM - MONO BOOM Z 95/60 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6500883000

HYDRAULIC CYLINDER Ref. 2-18

2

6500883003

CYLINDER BARREL

3

1950000865

LINKAGE BEARING

4

1456622369

CIRCLIP

5

1017370230

BOLT

6

6500883011

PISTON ROD

7

0500883015

DUMPING PISTON

8

0500883017

PIERCING BUSHING

9

1634935963

PISTON SEAL

10

5074609218

SEGMENT

11

1212251832

NUT

12

1965956675

ROD SEAL

13

5060507060

ROD SEAL

14

5060502060

GUIDING RING

15

1971958511

O-RING

16

1966960958

BACK UP RING

17

1974955060

SCRAPER RING

18

1971958419

O-RING

19

1607003006

GREASE NIPPLE

20

1976999186

SEAL KIT Ref. 9-18

25

GLUE NLA - Was MCS001036A - A

Выбрано товаров: 21
