Запчасти Bobcat ZX125 HYDRAULIC CYLINDER - BOOM - ARTICULATED BOOM Z 120/70 HYDRAULIC SYSTEM

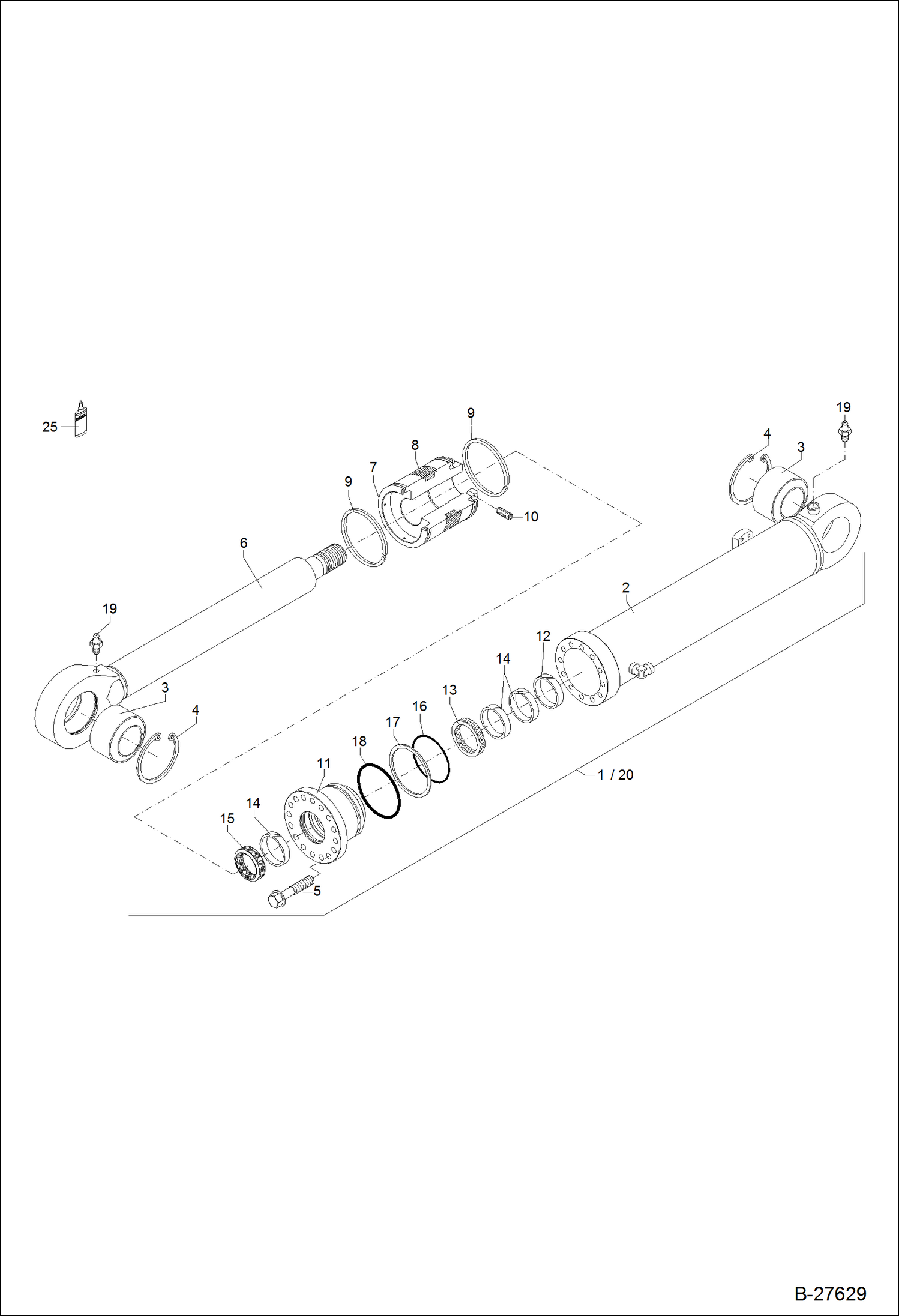

Схема запчастей Bobcat ZX125 - HYDRAULIC CYLINDER - BOOM - ARTICULATED BOOM Z 120/70 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6501839000

HYDRAULIC CYLINDER Ref. 2-18

2

6501839003

CYLINDER BODY

3

1950000866

LINKAGE

4

1456622873

CIRCLIP

5

1017370230

BOLT

6

6501839011

CYLINDER ROD

7

0501839015

PISTON

8

1634934120

PISTON SEAL

9

5074609265

SEGMENT

10

1135341423

STUD

11

0501839017

CYLINDER HEAD

12

5060502070

GUIDING RING

13

1965956785

SEAL

14

5060507070

GUIDING RING

15

1974955070

SCRAPER RING

16

1970960869

O-RING

17

1969956112

SPIRAL RING

18

1970960869

O-RING

19

1607003006

GREASE NIPPLE

20

1976999648

SEAL KIT Ref. 8, 9 & 12-18

25

GLUE NLA - Was MCS001036A - A

Выбрано товаров: 21
