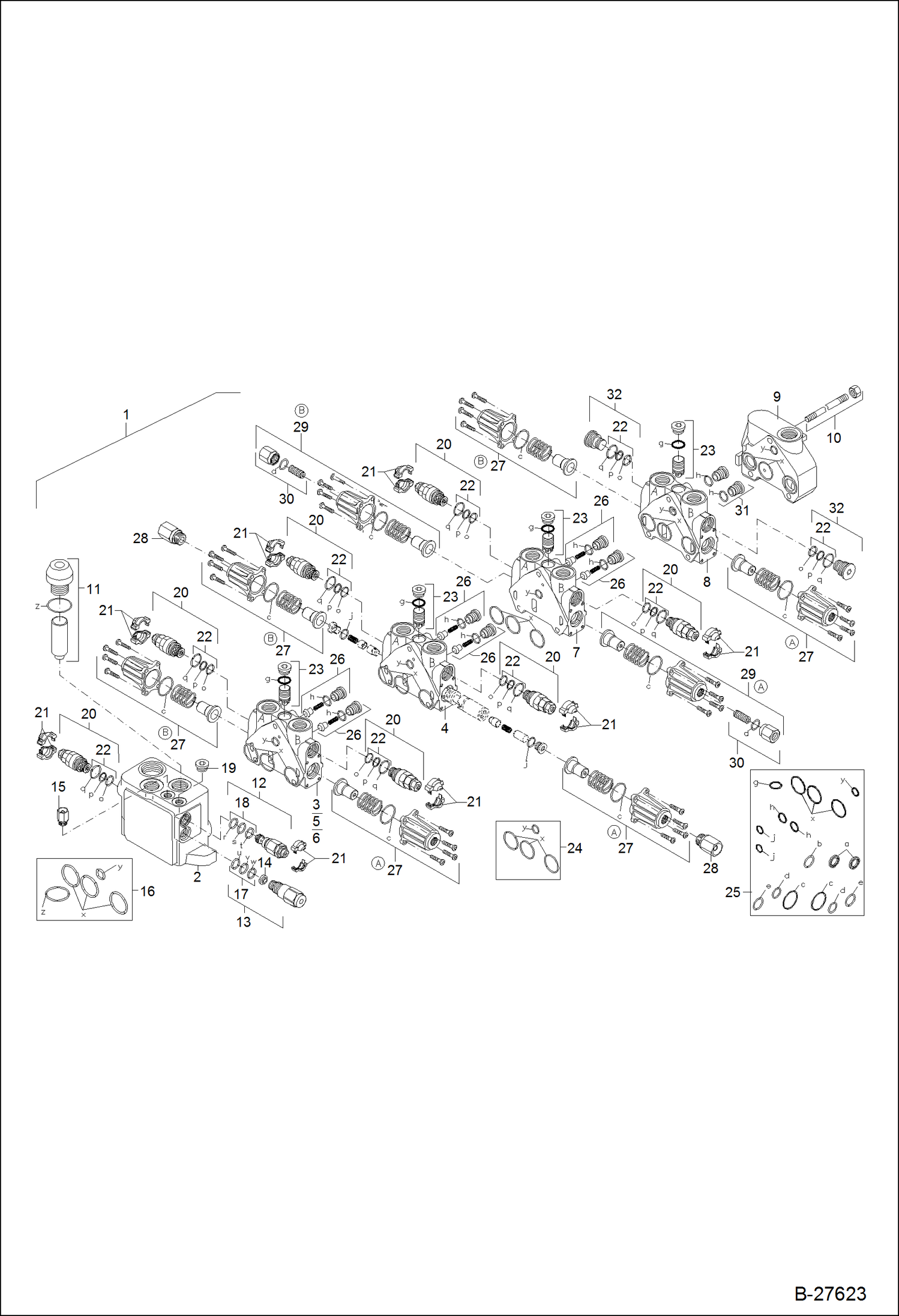

Запчасти Bobcat ZX125 VALVE BANK - ARTICULATED BOOM S/N XXXX/0545 & Abv HYDRAULIC SYSTEM

1

5606664623

VALVE, BANK CPL. ITEM Ref. 2-10 - 7SX14

2

5606664738

ELEMENT, INLET CPL. W/Ref. 11-22

3

5606664739

VALVE, DIRECTIONAL ELEMT W/Ref. 20-27

4

5606664740

VALVE, DIRECTIONAL ELEMT W/Ref. 20-28

5

5606664741

VALVE, DIRECTIONAL ELEMT W/Ref. 20-27

6

5606664742

VALVE, DIRECTIONAL ELEMT W/Ref. 20-27

7

5606664481

DIRECTIONAL VALVE ELEMENT W/Ref. 20-26, 29 & 30

8

5606664483

DIRECTIONAL VALVE ELEMENT W/Ref. 22-25, 27, 31 & 32

9

5606664191

OUTLET ELEMENT

10

5606664230

TIE ROD KIT

11

5606664193

REGULATION KIT

12

5606664212

PRESS RELIEF VALVE W/Ref. 18

13

5606656829

CURRENT REGULATOR W/Ref. 14 & 17

14

5606656829

CURRENT REGULATOR

15

5606664669

SHUTTLE, THROTTLE

16

5606664196

SEAL KIT inlet section

17

5606664199

SEAL KIT

18

5606664336

SEAL KIT

19

5606664383

PLUG

20

5606664224

PRESSURE RELIEF VALVE W/Ref. 22

21

5606664184

LOCKING COVER

22

5606664223

SEAL KIT

23

5606664202

PRESS COMPENSATOR

24

5606664198

SEAL KIT between work section

25

5606664485

SEAL KIT

26

5606664201

CHECK VALVE

27

5606664204

HYD OPERATION KIT

27

5606664593

CAP

27

5520609144

O-RING

28

5606664668

SHUTTLE, THROTTLE

29

5606664206

HYD OPERATION KIT W/Ref. 30

30

5606664368

STROKE LIMITER KIT

31

5606664205

CHECK VALVE

32

5606664384

PLUG
