Запчасти Bobcat ZX125 VALVE BANK - ARTICULATED BOOM S/N XXXX/0544 & Bel HYDRAULIC SYSTEM

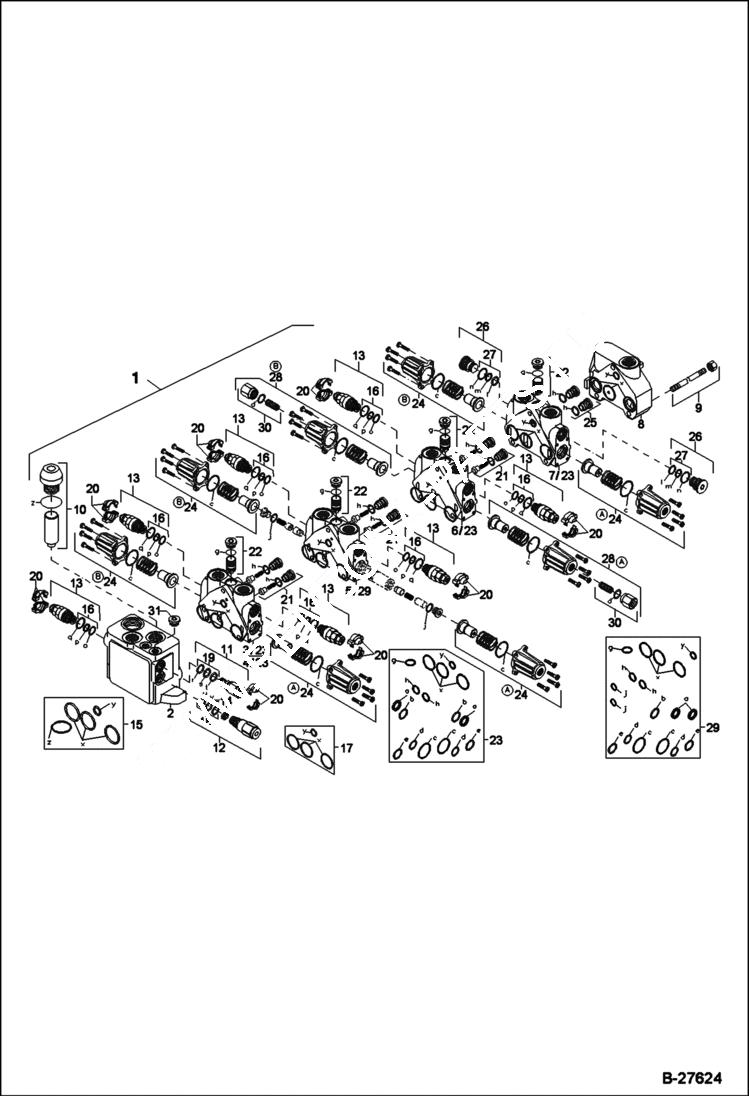

Схема запчастей Bobcat ZX125 - VALVE BANK - ARTICULATED BOOM S/N XXXX/0544 & Bel HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

VALVE ASSY NLA - 7SX14

2

5606664477

INLET ELEMENT CPL. W/Ref. 10-20 & 31

3

5606664378

DIRECTIONAL VALVE ELEMT W/Ref. 13, 17, 16 & 20-24

4

5606664375

DIRECTIONAL VALVE ELEMT W/Ref. 13, 17, 16 & 20-24

5

5606664482

DIRECTIONAL VALVE ELEMT W/Ref. 13, 17, 16, 20-22, 24 & 29

6

5606664481

DIRECTIONAL VALVE ELEMENT W/Ref. 13, 17, 20-23, 28 & 30

7

5606664483

DIRECTIONAL VALVE ELEMENT W/Ref. 17, 20 & 22-27

8

5606664191

OUTLET ELEMENT

9

5606664230

TIE ROD KIT

10

5606664193

REGULATION KIT

11

5606664212

PRESS RELIEF VALVE

12

5606656829

CURRENT REGULATOR

13

5606664224

PRESSURE RELIEF VALVE W/Ref. 16

14

5606656829

CURRENT REGULATOR

15

5606664196

SEAL KIT inlet section

16

5606664223

SEAL KIT

17

5606664198

SEAL KIT between work section

18

5606664199

SEAL KIT

19

5606664336

SEAL KIT

20

5606664184

LOCKING COVER

21

5606664201

CHECK VALVE

22

5606664202

PRESS COMPENSATOR

23

5606660809

KIT, SEAL COMPLETE Was 5606664484 - A

24

5606664204

HYD OPERATION KIT

24

5606664593

CAP

24

5520609144

O-RING

25

5606664205

CHECK VALVE

26

5606664384

PLUG

27

5606664223

SEAL KIT

28

5606664206

HYD OPERATION KIT

29

5606664485

SEAL KIT

30

5606664368

STROKE LIMITER KIT

31

5606664383

PLUG

Выбрано товаров: 33
