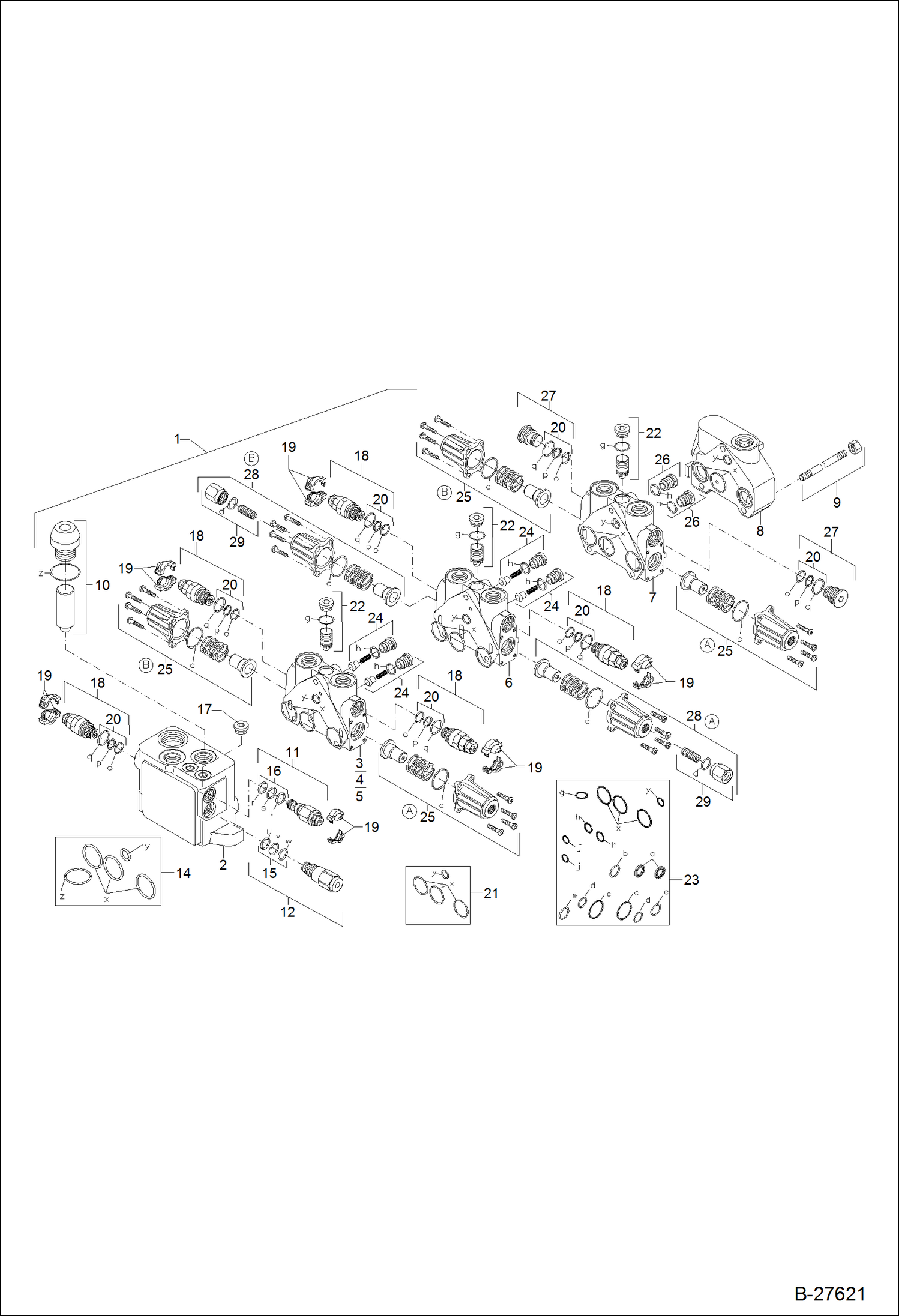

Запчасти Bobcat ZX125 VALVE BANK - MONO BOOM S/N XXXX/0507 & Abv HYDRAULIC SYSTEM

1

5606664670

VALVE, BANK CPL. ITEM Ref. 2-9 - 6SX14

2

5606664477

INLET ELEMENT CPL. W/Ref. 10-21

3

5606664473

VALVE, DIRECTIONAL ELEMT CPL. W/Ref. 18-21

4

5606664479

DIRECTIONAL VALVE ELEMENT W/Ref. 18-21

5

5606664480

DIRECTIONAL VALVE ELEMENT W/Ref. 18-21

6

5606664481

DIRECTIONAL VALVE ELEMENT W/Ref. 18-24, 28 & 29

7

5606664483

DIRECTIONAL VALVE ELEMENT W/Ref. 19-22 & 25-27

8

5606664191

OUTLET ELEMENT

9

5606664192

TIE ROD KIT

10

5606664193

REGULATION KIT

11

5606664212

PRESS RELIEF VALVE W/Ref. 16

12

5606656829

CURRENT REGULATOR W/Ref. 13 & 15

14

5606664196

SEAL KIT inlet section

15

5606664199

SEAL KIT

16

5606664336

SEAL KIT

17

5606664383

PLUG

18

5606664224

PRESSURE RELIEF VALVE W/Ref. 20

19

5606664184

LOCKING COVER

20

5606664223

SEAL KIT

21

5606664198

SEAL KIT between work section

22

5606664202

PRESS COMPENSATOR

23

5606664485

SEAL KIT

24

5606664201

CHECK VALVE

25

5606664204

HYD OPERATION KIT

25

5606664593

CAP

25

5520609144

O-RING

26

5606664205

CHECK VALVE

27

5606664384

PLUG

28

5606664206

HYD OPERATION KIT

29

5606664368

STROKE LIMITER KIT
