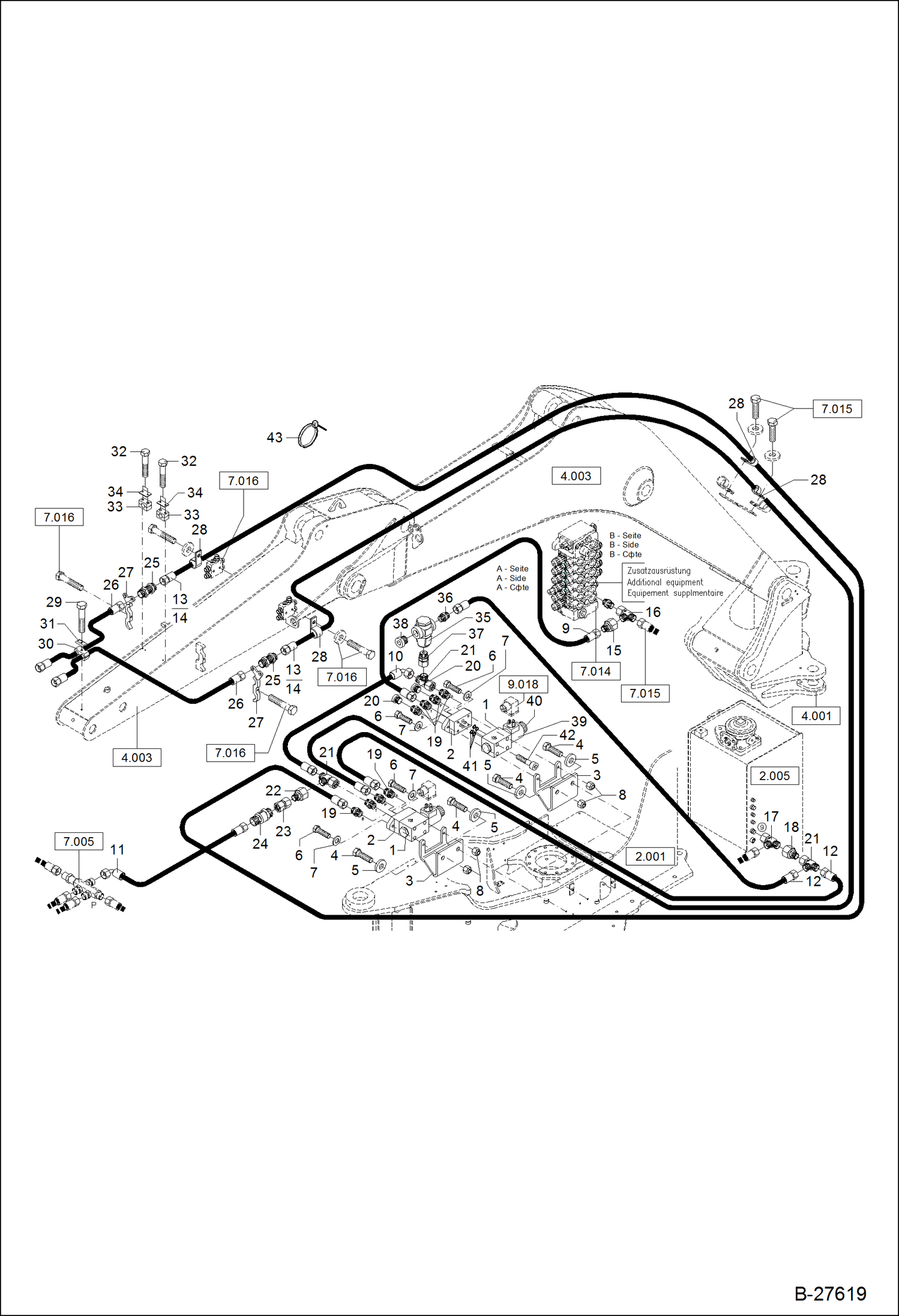

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION QUICK MOUNT HITCH - HS08 - MONO BOOM HYDRAULIC SYSTEM

1

5003700013

DIRECT CONTR VALVE W/Ref. 39-42

2

5003700003

CONNECTING PLATE

3

0209248026

VALVE BRACKET

4

1008707018

BOLT

5

1343707057

WASHER

6

1008707513

BOLT

7

1290707014

WASHER

8

1212251009

NUT

9

4158145240

HOSE

10

4158046351

HOSE

11

4506290351

HOSE

12

4158070240

HOSE

13

4158810301

HOSE

14

4158850301

HOSE, DIPPER ARM 2350 mm

15

1934060554

FITTING

16

1919060366

FITTING

17

1919060353

FITTING

18

1934060155

FITTING

19

1915060257

FITTING

20

1912060452

PLUG

21

1919060352

FITTING

22

1934060152

FITTING

23

1915060157

FITTING

24

1915991752

ONE-WAY VALVE

25

1913060152

FITTING

26

4906135308

HOSE

27

0238337005

HOSE CLAMP Was 6238337005

28

5000095200

HOSE CLIP

29

1007707319

BOLT

30

5660199767

CLIP, HOSE

31

5660200220

COVER PLATE

32

1007707014

BOLT

33

5660199611

HOSE CLAMP

34

5660200115

PLATE, COVER

35

5050052400

VALVE, PRESSURE RELIEF

36

1915060558

FITTING

37

1938060452

FITTING

38

1912060105

PLUG

39

5003700025

COIL

40

5003700026

NUT W/SEAL

41

5003700027

SEAL KIT

42

1045907011

BOLT

43

5653093560

BINDER
