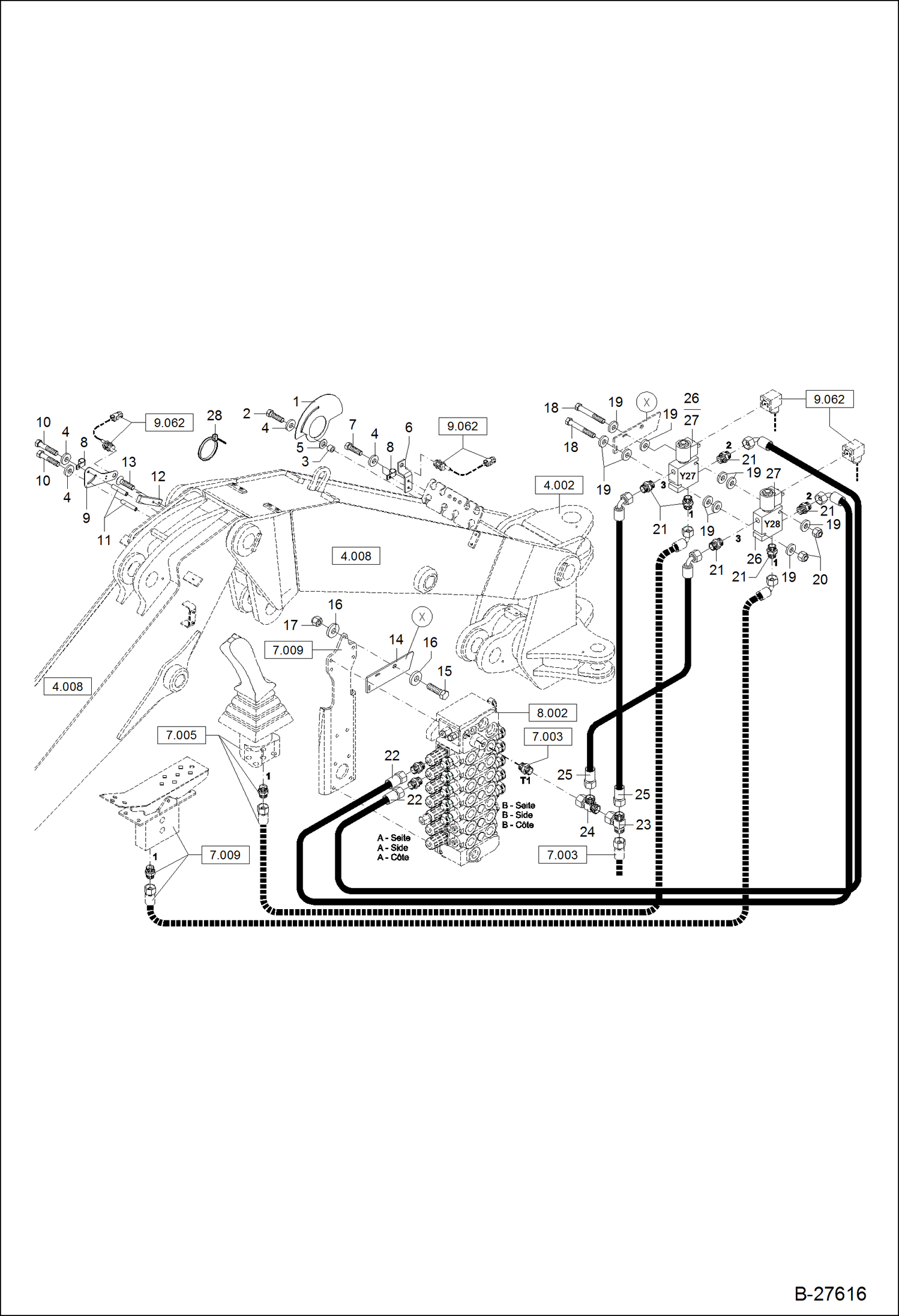

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION BOOM HIGHT LIMITATION - ARTICULATED BOOM HYDRAULIC SYSTEM

1

0209760011

SEGMENT

2

1008707019

BOLT

3

0337605028

SLEEVE, DISTANCE

4

1343707057

WASHER

5

1307707018

WASHER

6

0207741020

BRACKET

7

1008707318

BOLT

8

5000095800

HOSE CLIP

9

0209260010

BRACKET

10

1007707620

BOLT

11

0207741015

SLEEVE, DISTANCE

12

0207741005

BRACKET

13

1062707618

BOLT, M8X30

14

0209817005

BRACKET

15

1008707424

BOLT

16

1343707059

WASHER

17

1212251013

NUT

18

1008707115

BOLT

19

1343707055

WASHER

20

1212251009

NUT

21

1915060255

FITTING

22

4506047351

HOSE

23

1919060151

FITTING

24

1919060351

FITTING

25

4256033371

HOSE, HYD Was 4506033351 - A

26

5320001001

CONTROL VALVE W/Ref. 27

27

5320001002

SOLENOID CARTRIDGE

28

5653093560

BINDER
