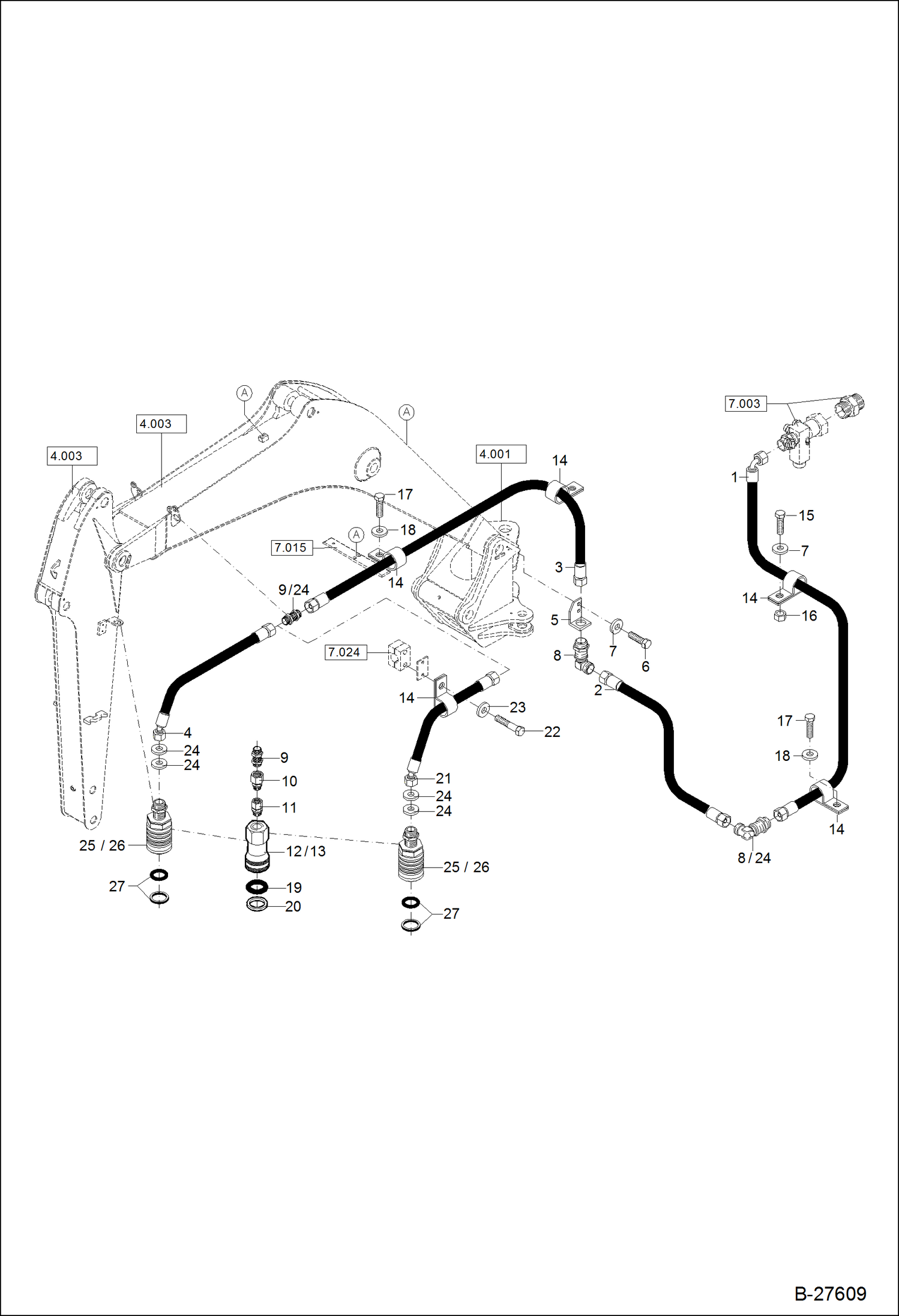

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION PRESSURELESS RETURN LINE - MONO HYDRAULIC SYSTEM

1

4132194370

HOSE

2

4132093430

HOSE

3

4132405430

HOSE

4

4132125363

HOSE

5

0202744020

ANGLE

6

1008707923

BOLT

7

1343707059

WASHER

8

1931060158

FITTING

9

1913060158

FITTING

10

1934060185

FITTING

11

1938060388

SCREW NECK

12

5000105000

COUPLING SOCKET W/Ref. 19-20

13

5000106100

DUST KAP

14

5000210450

HOSE CLIP

15

1008707124

BOLT

16

1212251013

NUT

17

1008707517

BOLT

18

1343707057

WASHER

19

1970956222

O-RING

20

5000067900

SUPPORT RING

21

4132125363

HOSE

22

1008707517

BOLT

23

1343707055

WASHER

24

1309412636

WASHER

25

5260308012

COUPLING SOCKET W/Ref. 27

26

5260308022

DUST CAP

27

5260308018

SEAL KIT
