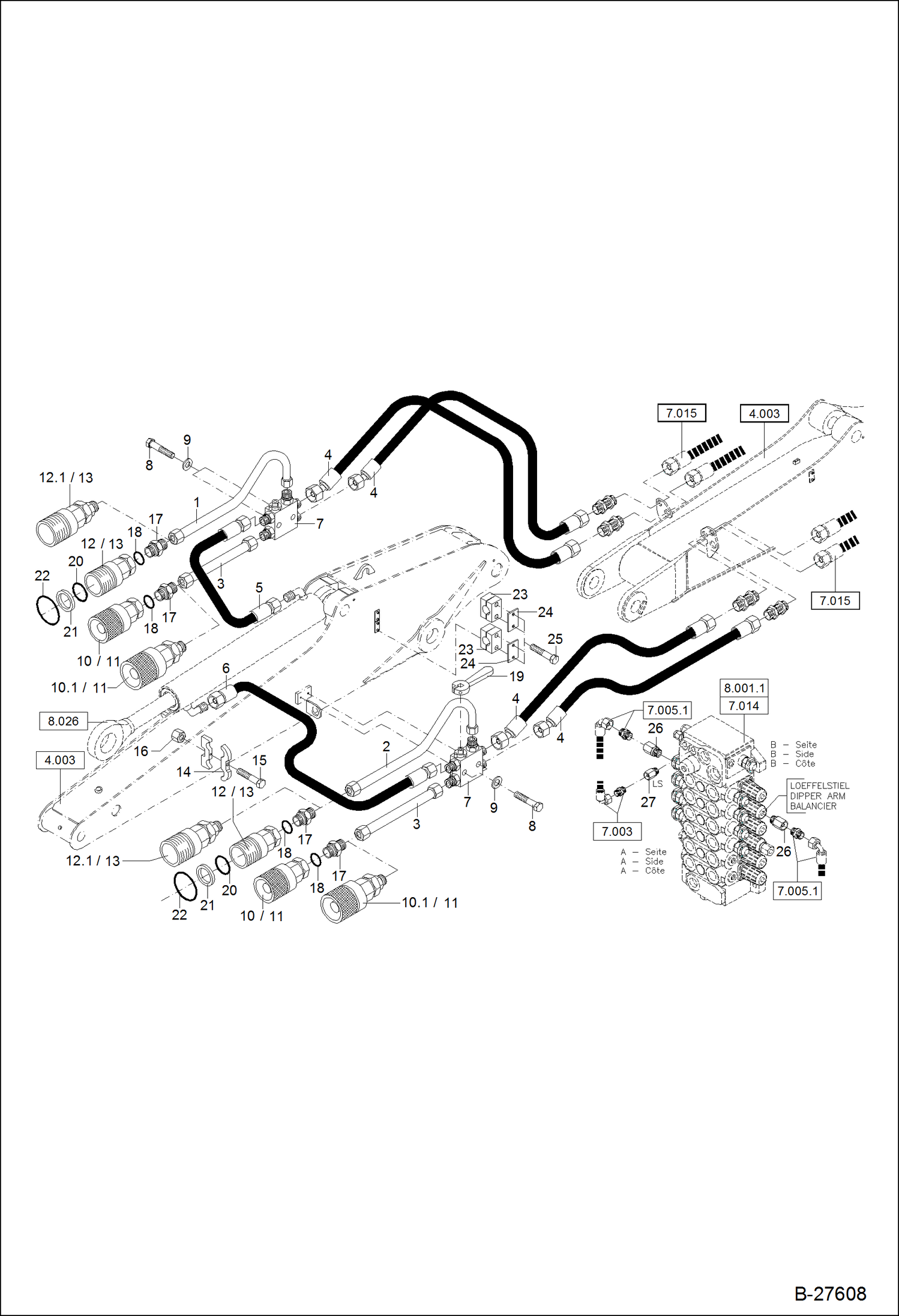

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION DIPPER ARM 2350 MM - MONO HYDRAULIC SYSTEM

1

0207607018

TUBING

2

0207607020

TUBING

3

0207607022

TUBING

4

4466163501

HOSE

5

4466097500

HOSE

6

4466076501

HOSE

7

5001207163

DISTRIBUTOR

8

1007707724

BOLT

9

1343707059

WASHER

10

5260301145

COUPLING PLUG

10

5260308024

COUPLING PLUG

11

5260301149

PLUG

12

5260301140

COUPLING SOCKET W/Ref. 20-22

12

5260308016

COUPLING SOCKET

13

5260301147

COVER NUT

14

0190106020

PIPE CLIP

15

1007707025

BOLT

16

1212251013

NUT

17

FITTING NLA - Use Kit 6501661503 - Was 1915060677 - A

18

1970956719

O-RING

19

5001207157

HANDLE

20

1970956629

O-RING

21

5260301146

BACK UP RING

22

1970956830

O-RING

23

5660199802

HOSE CLIP

24

5660200140

COVER PLATE

25

1007707214

BOLT

26

5606664668

SHUTTLE, THROTTLE

27

5606664669

SHUTTLE, THROTTLE
