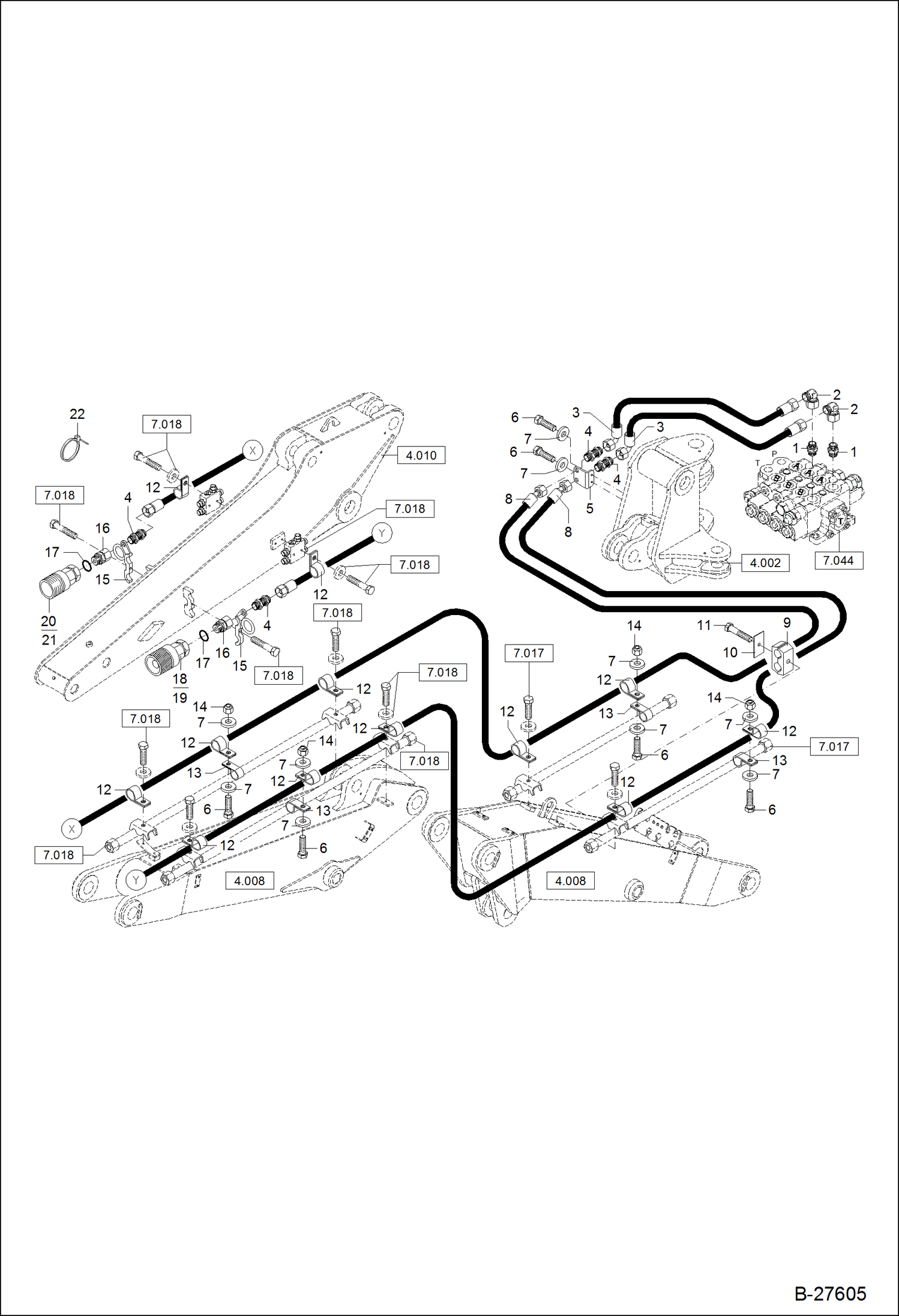

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION 2ND ADDITIONAL CIRCUIT - ARTICULATED BOOM HYDRAULIC SYSTEM

1

1915060264

FITTING

2

1924060154

ELBOW FITTING

3

4262223375

HOSE

4

1913060154

FITTING

5

0209748005

HOLDER, FITTING

6

1008707318

BOLT

7

1343707057

WASHER

8

4262690368

HOSE

9

5660199783

CLIP

10

5660200230

COVER PLATE

11

1007707619

BOLT

12

5000210400

HOSE CLIP

13

5000136820

HOSE CLIP

14

1212251011

NUT

15

6209748010

PIPE CLIP

16

1938060355

FITTING

17

1970956719

O-RING

18

5260301135

COUPLING PLUG

19

5260301139

PLUG

20

5260301130

COUPLING SOCKET

21

5260301137

COVER NUT

22

5350650280

BINDER
