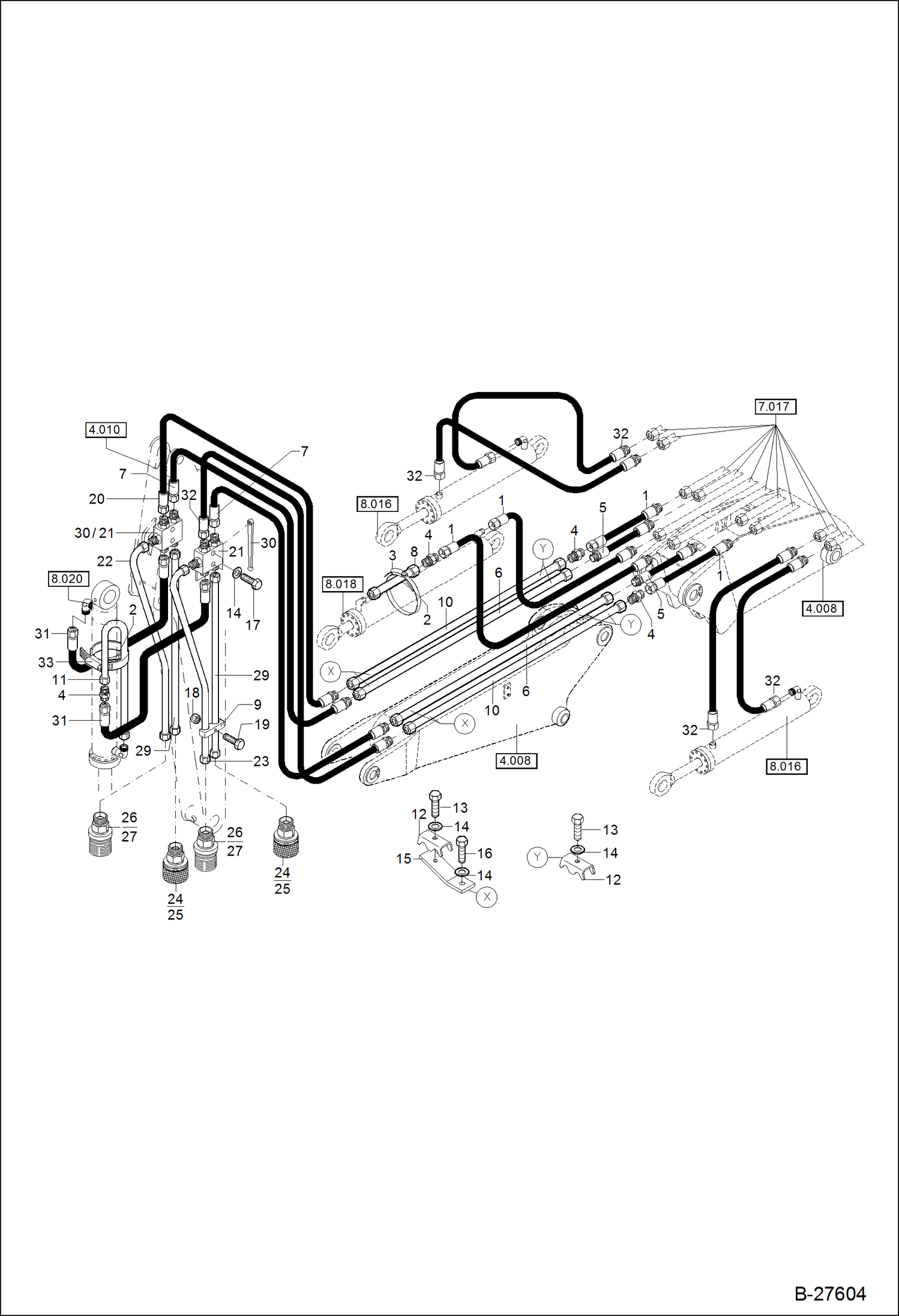

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION ARTICULATED BOOM, PART 2 HYDRAULIC SYSTEM

1

4466095498

HOSE

2

0110012050

RUBBER LAYER

3

5660095200

HOSE CLIP

4

1915060872

FITTING

5

4266104343

HOSE

6

0209626027

PIPE

7

4266113417

HOSE STANDARD

8

0209626033

PIPE

9

6190106020

PIPE CLIP

10

0209626025

PIPE

11

0209626034

PIPE

12

0209120060

CLIP, PIPE

13

1007707624

BOLT

14

1343707059

WASHER

15

0209626020

BRACKET

16

1008707923

BOLT

17

1007707724

BOLT

18

1212251013

NUT

19

1007707025

BOLT

20

4466115454

HOSE STANDARD

21

5001207159

DISTRIBUTOR BLOCK

22

0190107018

TUBING S4B2N

23

0190107020

TUBING S4B2N

24

5260308014

COUPLING PLUG

25

5260301149

PLUG

26

5260308016

COUPLING SOCKET

27

5260301147

COVER NUT

29

0203220020

TUBING L2B2N

30

5001207157

HANDLE

31

4466097500

HOSE

32

4466100498

HOSE

33

5660095400

HOSE CLIP
