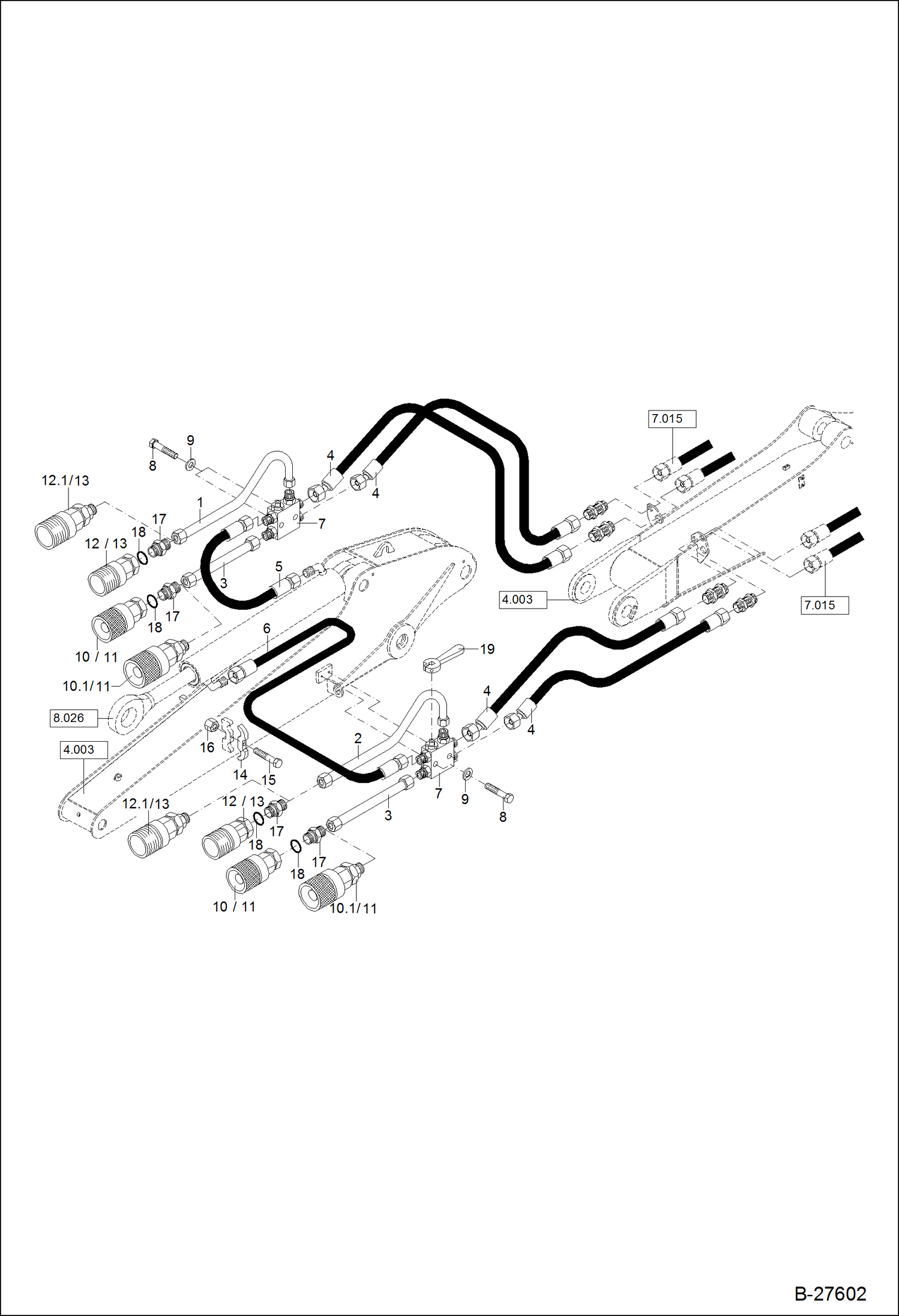

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION DIPPER ARM 2000 MM - MONO HYDRAULIC SYSTEM

1

0207607018

TUBING

2

0207607020

TUBING

3

0207607022

TUBING

4

4466123501

HOSE

5

4466097500

HOSE

6

4466076501

HOSE

7

5001207163

DISTRIBUTOR

8

1007707724

BOLT

9

1343707059

WASHER

10

5260301145

COUPLING PLUG

10

5260308024

COUPLING PLUG

11

5260301149

PLUG

12

5260301140

COUPLING SOCKET

12

5260308016

COUPLING SOCKET

13

5260301147

COVER NUT

14

0190106020

PIPE CLIP

15

1007707025

BOLT

16

1212251013

NUT

17

FITTING NLA - Use Kit 6501661503 - Was 1915060677 - A

18

1970956719

O-RING

19

5001207157

HANDLE
