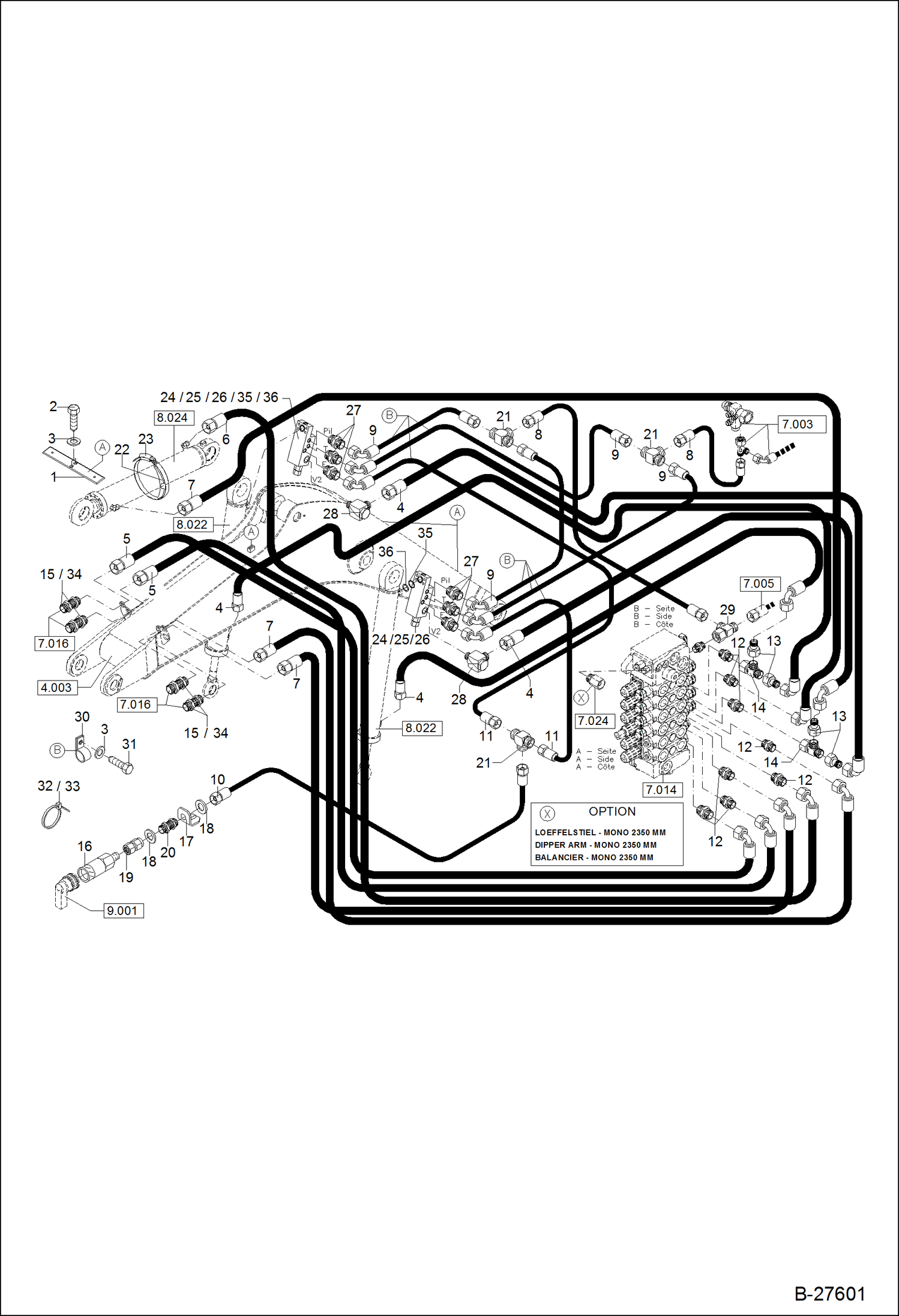

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION BOOM - MONO HYDRAULIC SYSTEM

1

6207607520

PLATE

2

1008707817

BOLT

3

1343707057

WASHER

4

4462370441

HOSE

5

4466600512

HOSE

6

4466505512

HOSE

7

4466601512

HOSE

8

4506320351

HOSE

9

4506115351

HOSE ASSEMBLY CPL.

10

5066315843

HOSE

11

5066315847

HOSE

12

1915060278

FITTING

13

1934060219

FITTING

14

1919060366

FITTING

15

1913060166

FITTING

16

5154650507

PRESSURE ABSORBER

17

6203212010

ANGLE

18

1290707025

WASHER

19

1943000101

CONNECTION

20

1913060151

FITTING

21

1914060111

FITTING

22

0110012050

RUBBER LAYER

23

5660095200

HOSE CLIP

24

5167659777

LOAD CHECK VALVE W/Ref. 35 & 36

25

1008707019

BOLT

26

1290707018

WASHER

27

1915060255

FITTING

28

1921060570

FITTING

29

1919060351

FITTING

30

5000210400

HOSE CLIP

31

1008707018

BOLT

32

5350650294

BINDER

33

5350650280

BINDER

34

1636815281

SEAL RING

35

5167660058

O-RING

36

5167660059

BACKUP WASHER
