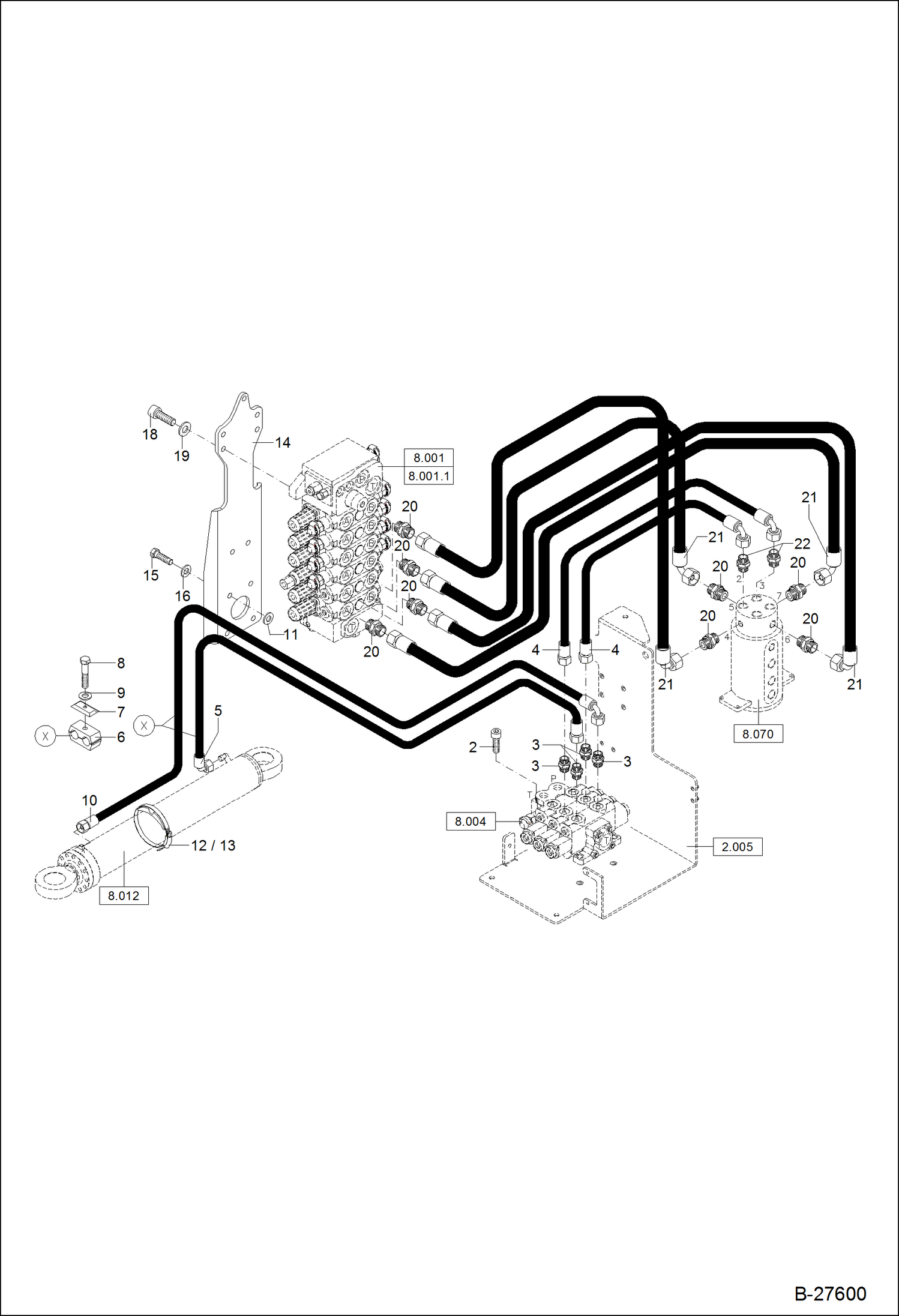

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION ARTICULATION, DRIVE HYDRAULIC SYSTEM

2

1045707124

BOLT

3

1915060262

FITTING

4

4260150374

HOSE

5

4260232128

HOSE

6

5660199785

HOSE CLIP

7

5660200230

COVER PLATE

8

1007707220

BOLT

9

1290707018

WASHER

10

4260232129

HOSE

11

1343707061

WASHER

12

5660095200

HOSE CLIP

13

0110012050

RUBBER LAYER

14

0207508010

VALVE BRACKET

15

1008707230

BOLT

16

1290707022

WASHER

18

1045707036

BOLT

19

1343707063

WASHER

20

1915060278

FITTING

21

4466078512

HOSE

22

1915060261

FITTING

23

VALVE ASSY See Illustration VALVE BANK - MONO BOOM/ B27622

23

VALVE ASSY See Illustration VALVE BANK - MONO BOOM/ B27621

24

VALVE ASSY See Illustration VALVE BANK/ B27625
