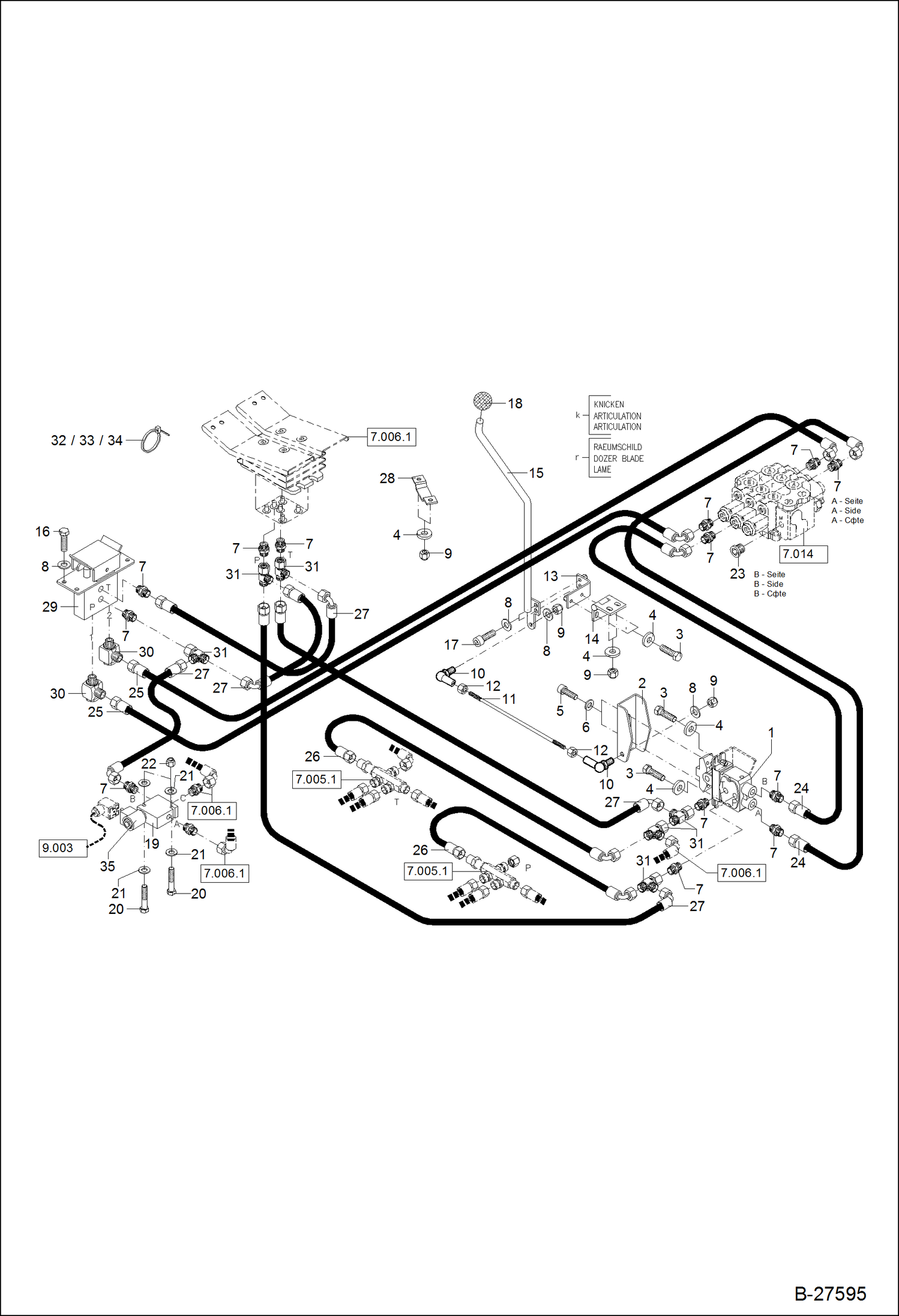

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION PILOT CONTROL - DOZER BLADE, ARTICULATION HYDRAULIC SYSTEM

1

5167659756

PILOT CONTR. VALVE

2

6189609024

MOUNT

3

1008707318

BOLT

4

1343707057

WASHER

5

1045707612

BOLT

6

1290707014

WASHER

7

1915060255

FITTING

8

1290707018

WASHER

9

1212251011

NUT

10

1798707104

ANGLE JOINT

11

0189209518

THREADED ROD

12

1210707011

NUT

13

6189609035

BRACKET

14

5426585596

HINGE

15

6189609036

LEVER

16

1008707018

BOLT

17

1045707018

BOLT

18

1541930726

BALL KNOB

19

5320001001

CONTROL VALVE W/Ref. 35

20

1007707514

BOLT

21

1343707055

WASHER

22

1212251009

NUT

23

1912060452

PLUG

24

4506380371

HOSE

25

4506320351

HOSE

26

4506040351

HOSE

27

4256033371

HOSE, HYD Was 4506033351 - A

28

0183526010

HOSE CLIP

29

5606658830

PEDAL

30

1921060555

FITTING

31

1919060351

FITTING

32

5350650280

BINDER

33

5653093560

BINDER

34

5350650294

BINDER

35

5320001002

SOLENOID CARTRIDGE
