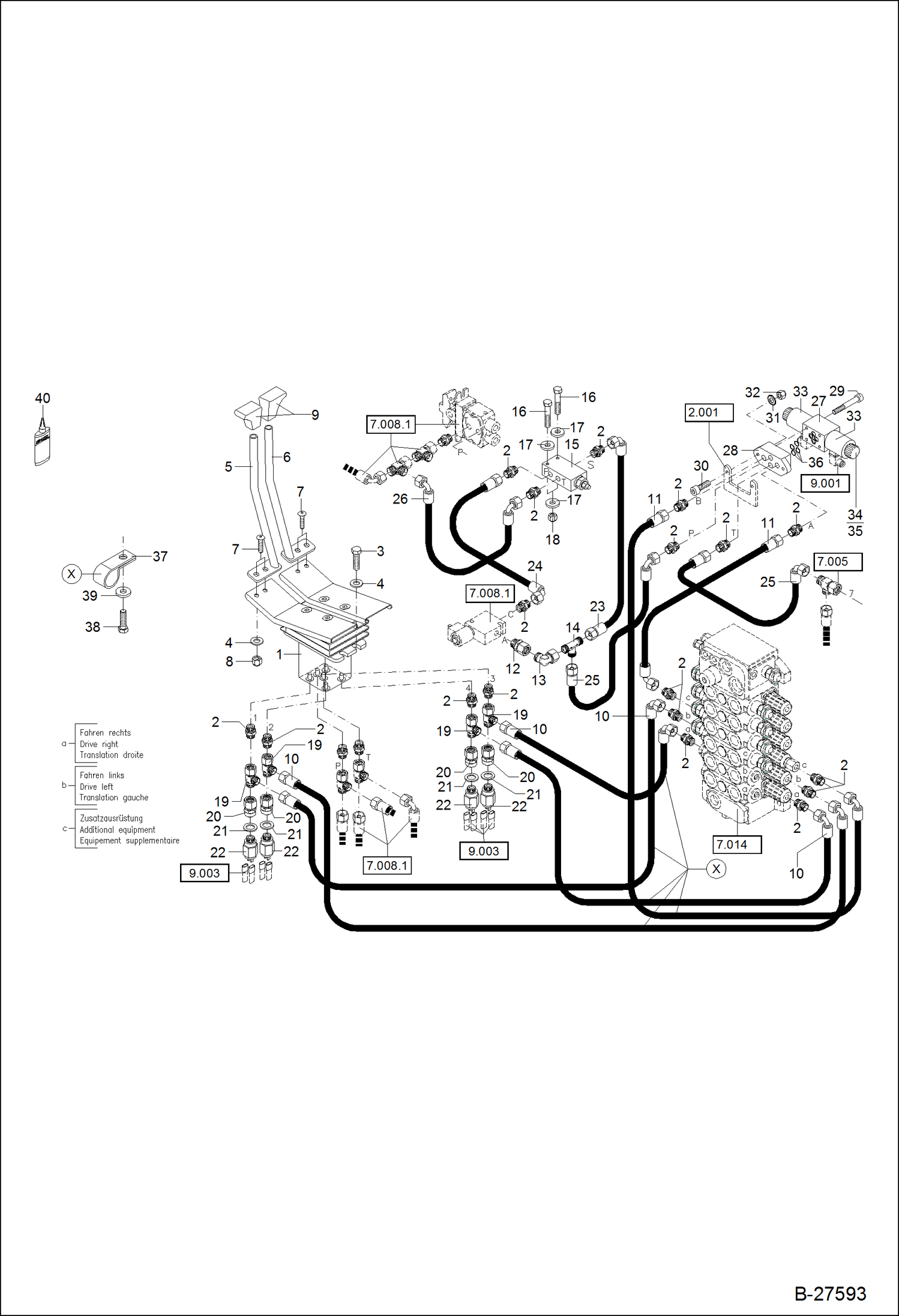

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION PILOT CONTROL - TRAVEL, ADDITIONAL OUTLET HYDRAULIC SYSTEM

1

5606658896

PEDAL

2

1915060255

FITTING

3

1008707018

BOLT

4

1290707018

WASHER

5

0216009070

LEVER, TRAVEL LH

6

0216009071

LEVER, TRAVEL RH

7

1069020018

BOLT

8

1212251011

NUT

9

1541930726

BALL KNOB

9

1576000512

HANDLE

10

4506270371

HOSE

11

4506180351

HOSE

12

1938060151

SCREW NECK

13

1924060151

FITTING

14

1939900908

TWO-WAY VALVE

15

5520656608

PRESSURE REDUCER

16

1007707414

BOLT

17

1343707055

WASHER

18

1212251009

NUT

19

1919060351

FITTING

20

1943000101

CONNECTION

21

1636815155

SEAL RING

22

5050143175

PRESSURE SWITCH

23

4506085351

HOSE

24

4506060351

HOSE

25

4506140371

HOSE

26

4256033371

HOSE, HYD Was 4506033351 - A

27

5003700001

DIRECT CONTR. VALVE W/Ref. 33-36

28

5003700003

CONNECTING PLATE

29

1045907011

BOLT

30

1045707513

BOLT

31

1290707014

WASHER

32

1212251009

NUT

33

5003700025

COIL

34

5003700026

NUT W/SEAL W/Ref. 35

35

1970956810

O-RING

36

5003700027

SEAL KIT

37

5000210462

HOSE CLIP

38

1008707817

BOLT

39

1343707057

WASHER

40

MCS001040A

GLUE
