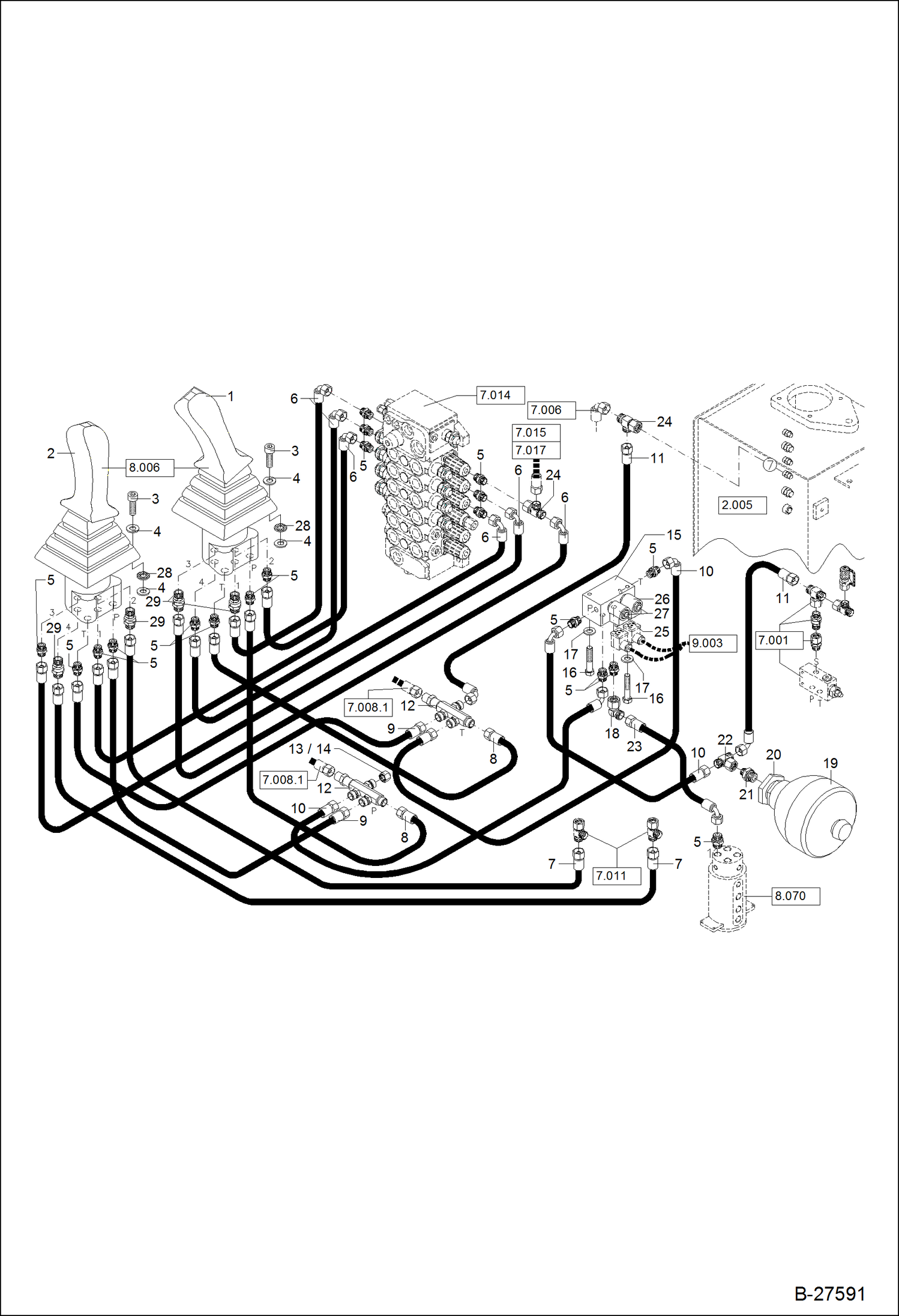

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION PILOT CONTROL HYDRAULIC SYSTEM

1

5606658882

JOYSTICK RH See Illustration REMOTE CONTROL VALVE/ B27627

2

5606658880

JOYSTICK LH See Illustration REMOTE CONTROL VALVE/ B27627

3

1045707213

BOLT

4

1290707014

WASHER

5

1915060255

FITTING

6

4506450351

HOSE

7

4506400356

HOSE

8

4506090240

HOSE

9

4506137240

HOSE

10

4256033371

HOSE, HYD Was 4506033351 - A

11

4506320351

HOSE

12

5260310255

MANIFOLD

13

1911060154

UNION NUT

14

1912060354

PLUG

15

5320001004

SOLENOID VALVE W/Ref. 25-27

16

1007707020

BOLT

17

1290707018

WASHER

18

1924060151

FITTING

19

5385657890

HYDR.ACCUMULATOR

20

5385657587

NUT

21

1915060756

FITTING

22

1919060151

FITTING

23

4506235351

HOSE

24

1919060351

FITTING

25

5320001015

SOLENOID CARTRIDGE

26

5320001016

SOLENOID CARTRIDGE

27

5320001017

SOLENOID

28

1290940014

WASHER

29

5260310222

ONE WAY VALVE
