Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION CIRCULATION HYDRAULIC SYSTEM

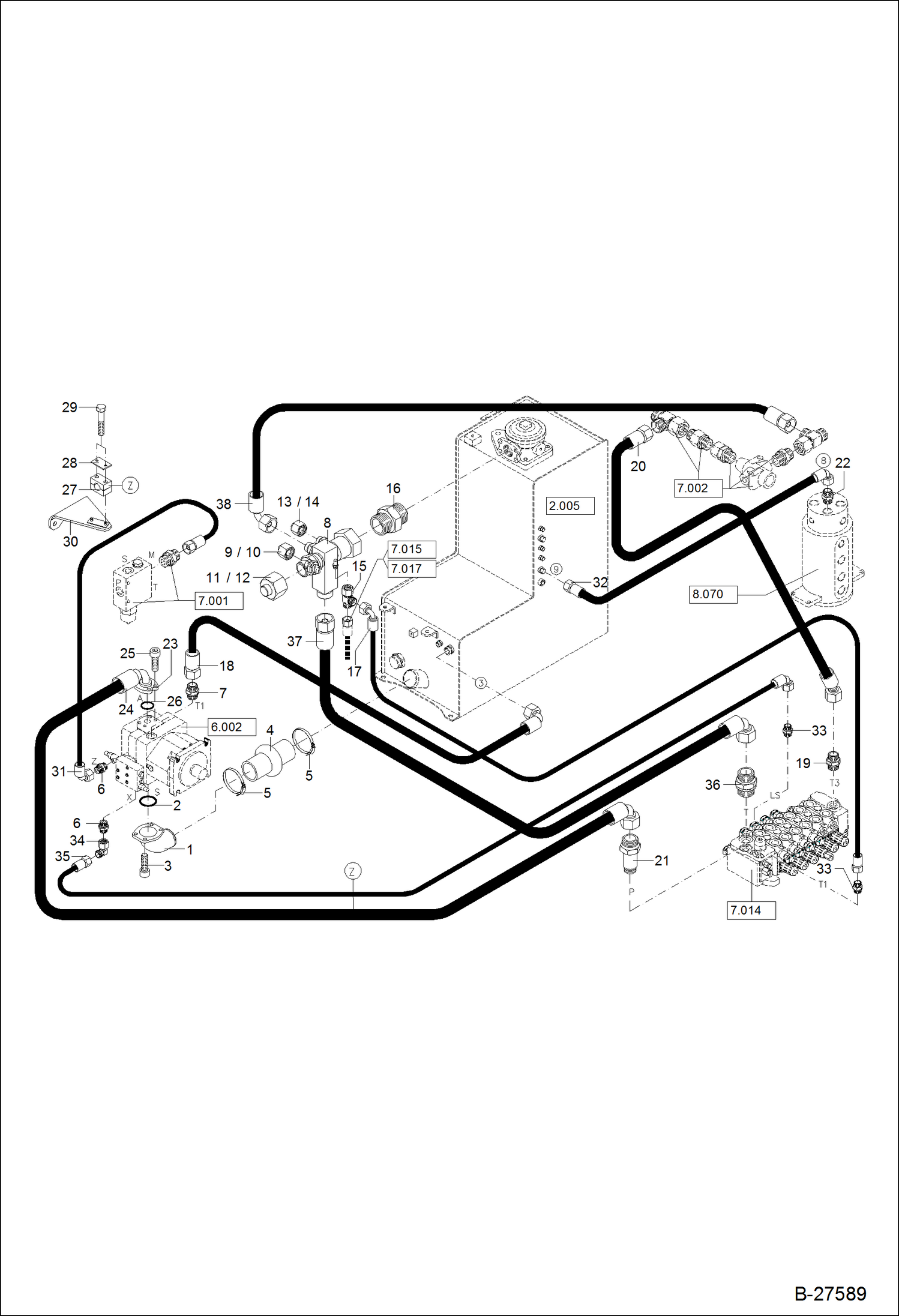

Схема запчастей Bobcat ZX125 - HYDRAULIC INSTALLATION CIRCULATION HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

5260310306

FLANGE

2

1971956532

O-RING

3

1046707030

BOLT

4

5210657364

COMPENSATOR

5

5660200121

HOSE CLIP

6

1915060754

FITTING

7

1915060566

FITTING

8

5260310214

RETURN LINE COLLECT

9

1912060359

PLUG

10

1911060159

UNION NUT

11

1912060361

PLUG

12

1911060161

UNION NUT

13

1912060358

PLUG

14

1911060158

UNION NUT

15

1919060351

FITTING

16

1915060369

FITTING

17

4506085351

HOSE

18

4116063156

HOSE

19

1915060266

FITTING

20

4120076406

HOSE

21

0254009005

FITTING

22

1915060260

FITTING

23

5000250603

FLANGE, HALF

24

4475190533

HOSE

25

1045707430

BOLT

26

1971956322

O-RING

27

5660199805

HOSE CLIP

28

5660200150

COVER

29

1007707514

BOLT

30

6207508040

HOSE CLIP

31

4256131371

HOSE

32

4110080374

HOSE

33

1915060255

FITTING

34

1924060151

FITTING

35

4256180371

HOSE

36

1915060469

FITTING

37

4132078370

HOSE

38

4120129156

HOSE

Выбрано товаров: 38
