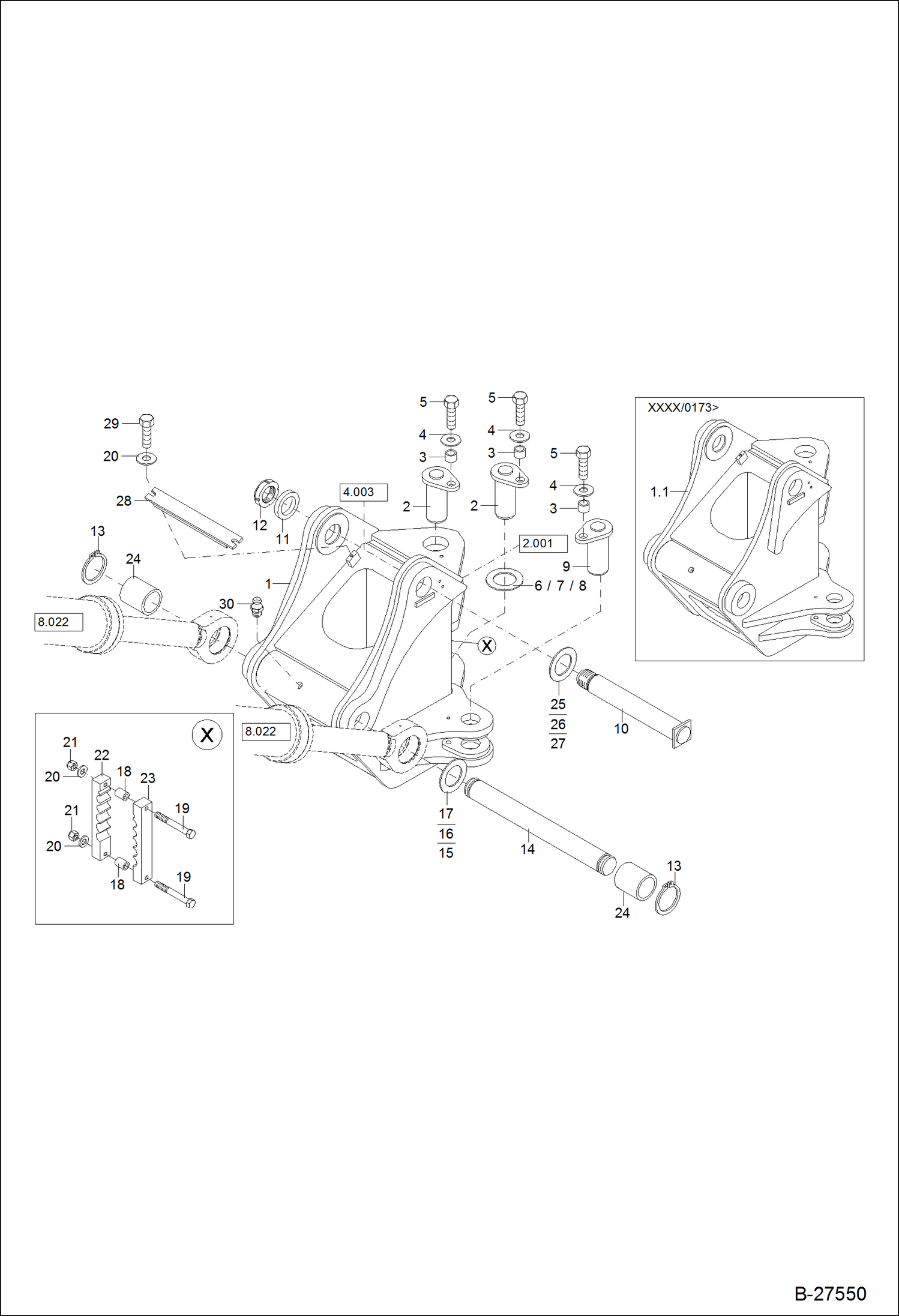

Запчасти Bobcat ZX125 KING POST - BOOM MONO WORK EQUIPMENT

1

6207524502

KING POST

1

6207524602

POST, KING

2

0207524030

PIN

3

0156029033

SPACER

4

1343707061

WASHER

5

1008707829

BOLT

6

0207524055

WASHER

7

0207524057

WASHER

8

0207524056

WASHER

9

0176105230

PIN

10

0207524060

PIN

11

0209627045

RING

12

1212707449

SLOTTED ROUND NUT

13

1455622556

CIRCLIP

14

6207524550

PIN

15

1309412013

SHIM

16

1309412825

SHIM

17

1309412834

SHIM

18

0209624045

DISTANCE SLEEVE

19

1007707825

BOLT

20

1343707059

WASHER

21

1212251013

NUT

22

0207524541

HOSE CLIP

23

0207524542

HOSE CLIP

24

5809625667

BUSHING

25

0202524052

WASHER

26

0202524053

WASHER

27

0202524057

WASHER

28

0207524543

HOSE CLIP

29

1008707324

BOLT

30

1607003010

GREASE NIPPLE
