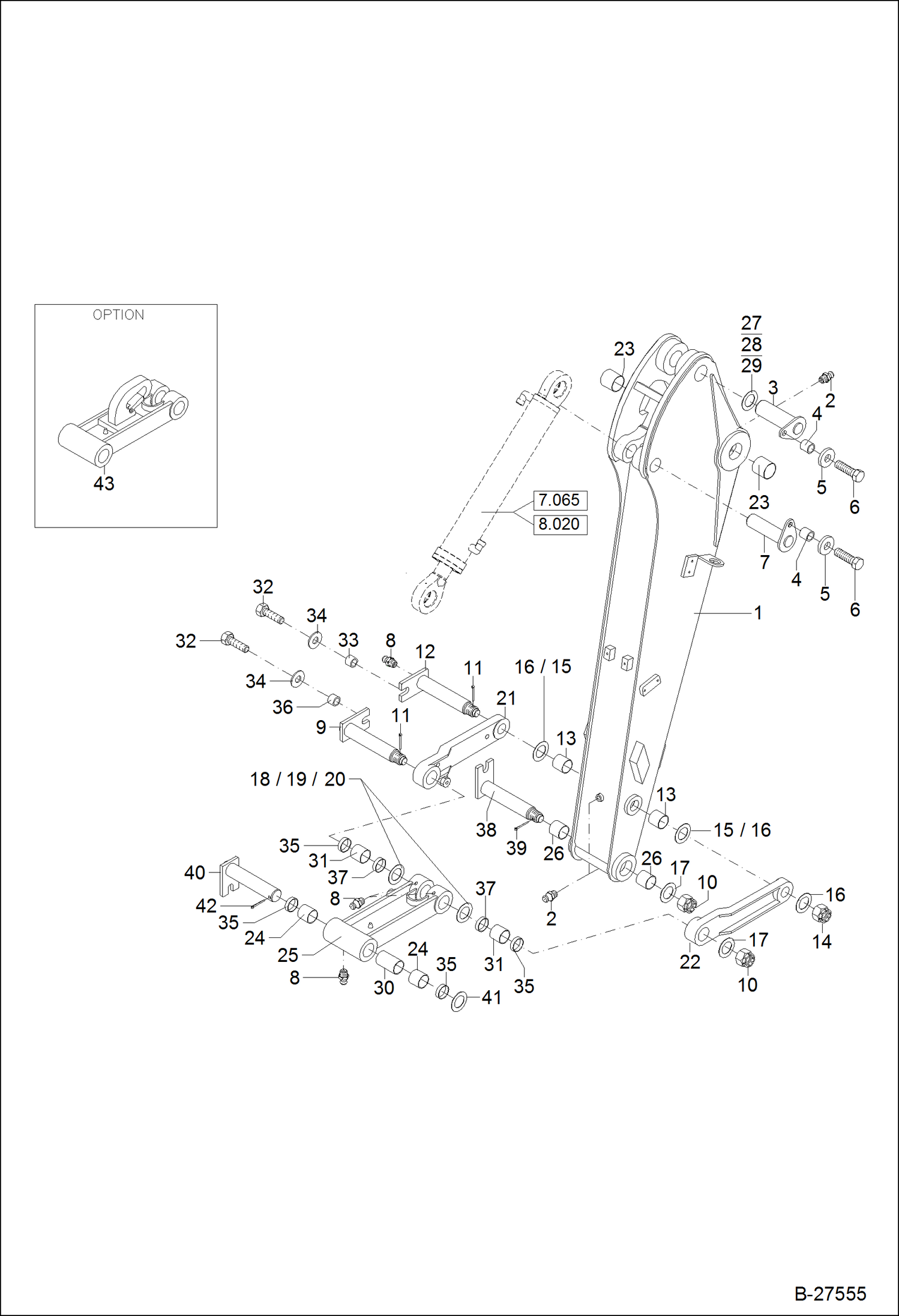

Запчасти Bobcat ZX125 DIPPER STICK 1850 MM - ARTICULATED BOOM (Atlas Attachments) WORK EQUIPMENT

1

6209810002

ARM, DIPPER 1850MM

2

1607003010

GREASE NIPPLE

3

0331002025

PIN

4

0156029033

SPACER

5

1343707061

WASHER

6

1008707829

BOLT

7

0209629090

PIN

8

1607010008

GREASE ZERK

9

0209810080

PIN

10

0209810082

NUT, CASTLE

11

0209810075

PIN, COTTER

12

0209810072

PIN

13

5809625681

BUSHING

14

0209810074

NUT, CASTLE

15

1309412636

WASHER

16

1309412934

SHIM

17

0209810081

SHIM

18

0176124545

WASHER

19

0157624143

SHIM

20

0223002245

WASHER

21

0209810070

LEVER, TILTING

22

0209810071

LEVER, TILTING

23

5809625676

BUSHING

24

5020001002

BUSHING

25

6209810060

LINK, GUIDE

26

5809625667

BUSHING

27

1309412213

SHIM

28

1309412726

SHIM

29

1309412939

SHIM

30

5020001003

BUSHING

31

5020001004

BUSHING

32

1008707552

BOLT

33

0209810073

SPACER

34

1343707069

WASHER

35

5020001001

SEAL, WIPER

36

0209810079

SPACER

37

5060508052

SEAL, WIPER

38

0209810076

PIN

39

1395707738

PIN, COTTER

40

0209810066

PIN

41

1290707088

SHIM

42

1395707642

COTTER PIN

43

6209812005

LINK, GUIDE WITH HOOK

44

CYLINDER, BUCKET See Illustration HYDRAULIC CYLINDER - BUCKET - ARTICULATED BOOM/ B27631
