Запчасти Bobcat ZX125 DIPPER STICK - ARTICULATED BOOM WORK EQUIPMENT

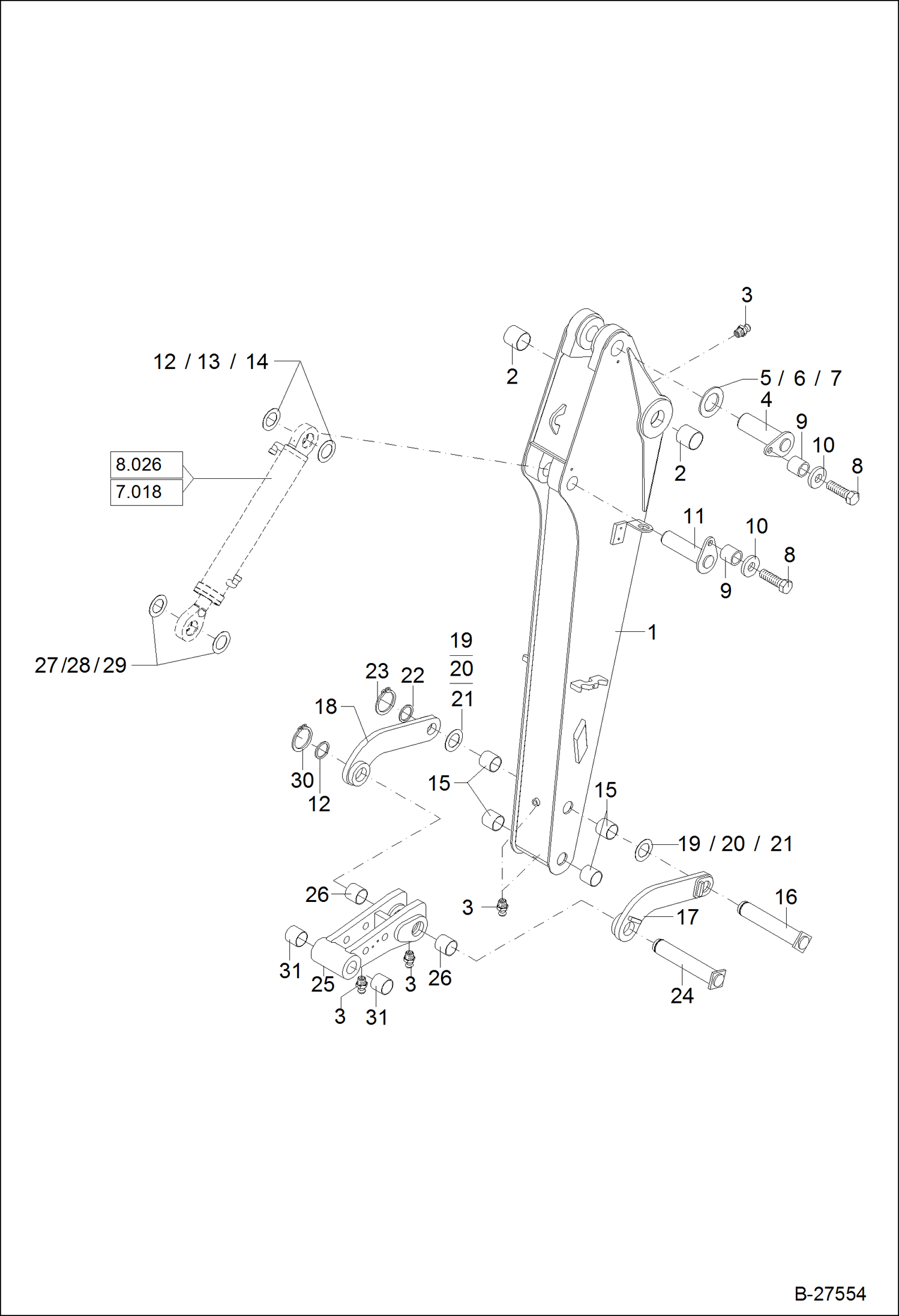

Схема запчастей Bobcat ZX125 - DIPPER STICK - ARTICULATED BOOM WORK EQUIPMENT

Артикул

Название

Примечание

Количество

1

0209629002

DIPPER ARM

2

5809625676

BUSHING

3

1607003010

GREASE NIPPLE

4

0331002025

PIN

5

1309412213

SHIM

6

1309412726

SHIM

7

1309412939

SHIM

8

1008707829

BOLT

9

0156029033

SPACER

10

1343707061

WASHER

11

0209629090

PIN

12

1309412834

SHIM

13

1309412825

SHIM

14

1309412013

SHIM

15

5809625553

BUSHING, PRESS FIT 1.98'' ID, 2.17'' OD

16

0153131066

PIN

17

0209629065

LEVER Was 6209629065 - A

18

0209629060

LEVER Was 6209629060 - A

19

0194019227

WASHER

20

0194002226

WASHER

21

0194019025

WASHER

22

1309412425

SHIM

23

1455622750

SNAP RING

24

0177321015

PIN

25

6209629050

GUIDE LINK

26

5809625667

BUSHING

27

0176124545

WASHER

28

0157624143

SHIM

29

0223002245

WASHER

30

1455622356

WASHER

31

5809625675

BUSHING

32

CYLINDER, BUCKET See Illustration HYDRAULIC CYLINDER - BUCKET - MONO BOOM, ATLAS 185/ B27634

Выбрано товаров: 32
