Запчасти Bobcat ZX125 SLEW EQUIPMENT UNDERCARRIAGE

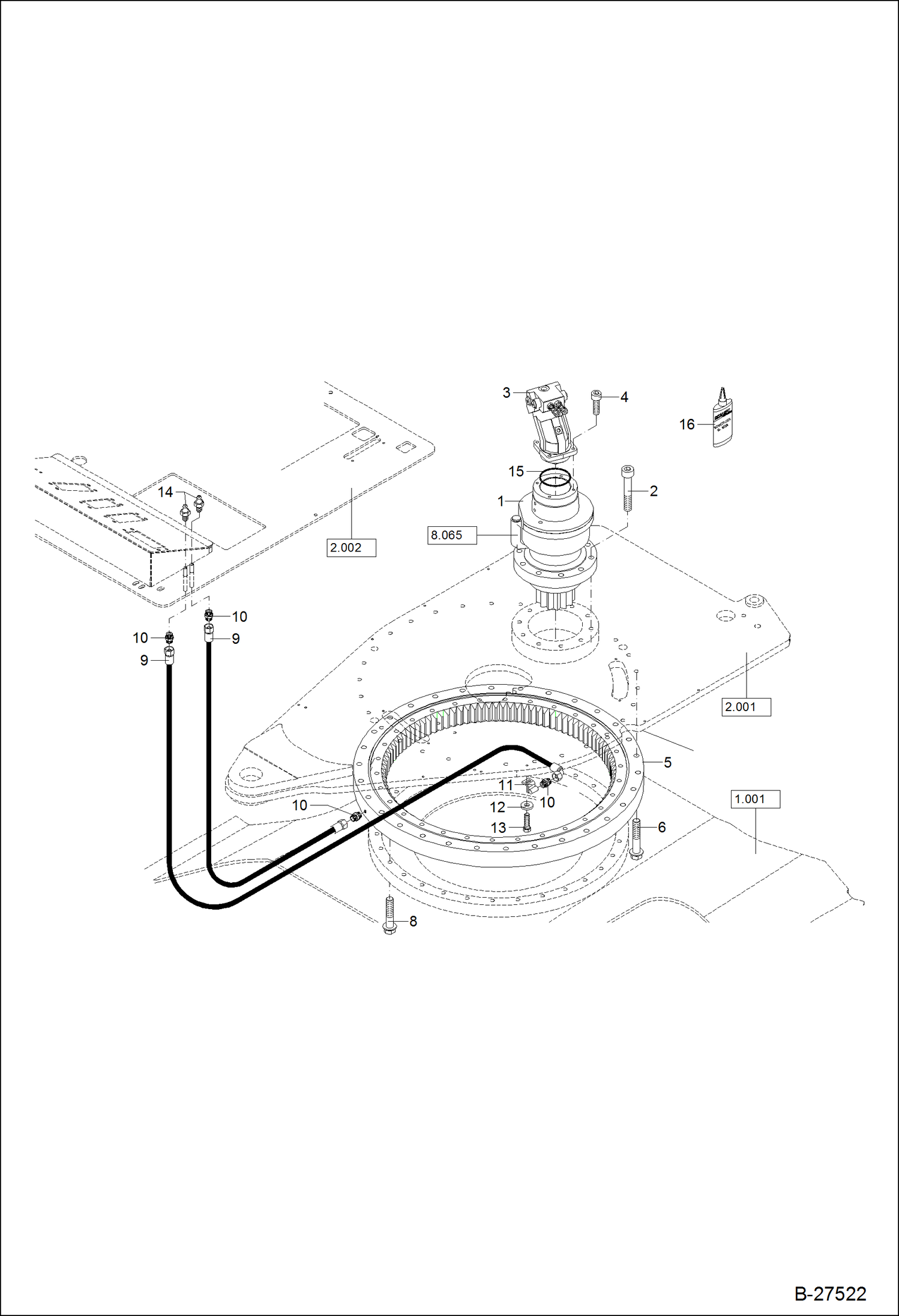

Схема запчастей Bobcat ZX125 - SLEW EQUIPMENT UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

5904670005

SLEW GEAR See Illustration SLEW GEAR / B27640

2

1045707141

BOLT

3

5364664250

HYDRAULIC MOTOR

4

1047341124

BOLT

5

5383661014

SLEW RING

6

1017341841

BOLT

8

1017341841

BOLT

9

0190006008

HOSE ASSEMBLY CPL.

10

1915060553

FITTING

11

0176006010

NOZZLE

12

1343707057

WASHER

13

1008707018

BOLT

14

1607003010

GREASE NIPPLE

15

1970956336

O-RING

16

MCS001038A

GLUE

Выбрано товаров: 15
