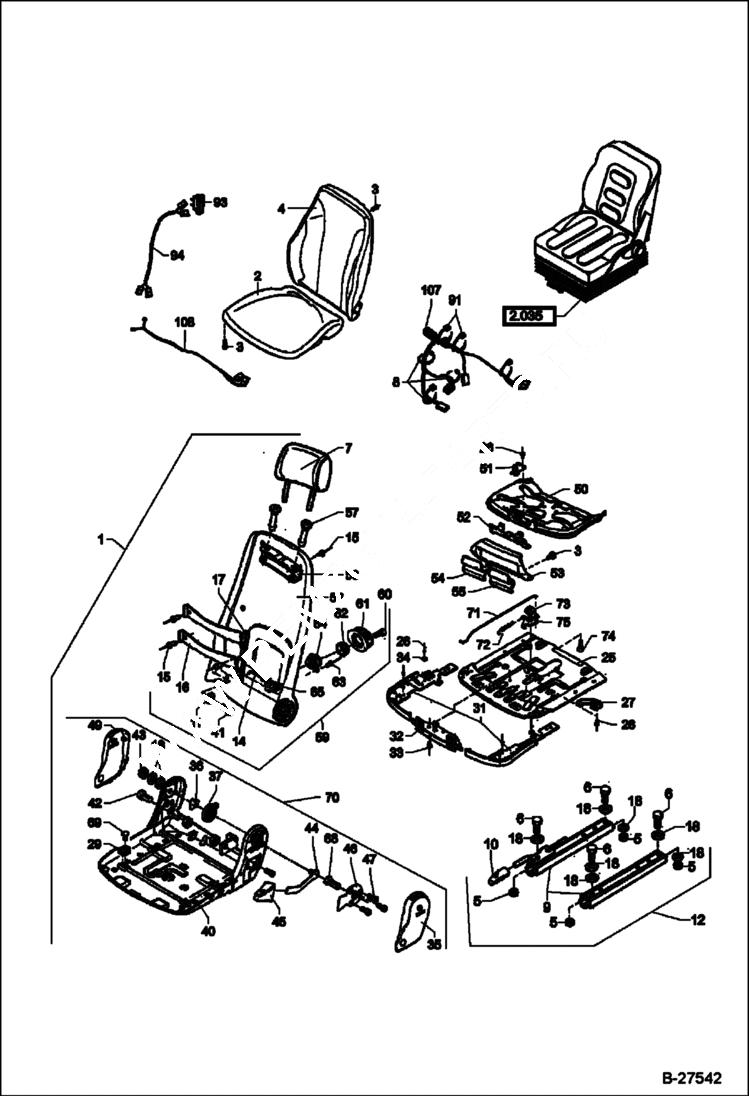

Запчасти Bobcat ZX125 OPERATORS SEAT MSG95 W/ Seat Heating MAIN FRAME

1

5305661755

SEAT CPL Ref. 108

2

5305670202

PAD, SEAT W/Ref. 3

3

5305670026

BOLT

4

5305670201

PAD, BACKREST W/Ref. 3

5

1210707011

NUT

6

1008707817

BOLT

7

5305670101

HEADREST

8

5305670203

TIE STRAP

9

5305670204

ADJUSTABLE RAIL W/Ref. 10

10

5305670190

HANDLE

11

5305670104

WASHER

12

5305670191

MOUNTING PARTS Ref. 5, 6, 11 & 18

14

5305670206

ROD

15

5305670134

RIVET

16

5305670207

PLATE

17

5305670208

BRACKET

18

5305670200

WASHER

25

5305670137

PLATE W/Ref. 26-27 & 32

26

5305670138

RIVET

27

5305670139

SUSPENSION PLATE

29

5305670140

SLIDING BLOCK

31

5305670141

COVER W/Ref. 26 & 34

32

5305670032

HANDLE Ref. 33

33

5305670142

RIVET

34

5305670209

WASHER

35

5305670280

COVER

36

5305670143

BEARING

37

5305670034

SPRING W/Ref. 26, 27 & 32

40

5305670144

SEAT PLATE ASSY W/Ref. 26 & 69

41

1008707019

BOLT

42

1008707318

BOLT

43

1212251011

NUT

44

5305670035

LEVER

45

5305670036

HANDLE

46

5305670037

ADAPTER PLATE

47

5305670038

BOLT

49

5305670282

COVER RIGHT

50

5305670193

ROCKER W/Ref. 3 & 51

51

5305670146

SUSPENSION PLATE W/Ref. 26

52

5305670040

LEVER W/Ref. 14-17 & 61-65

53

5305670147

COVER W/Ref. 3

54

5305670041

HANDLE W/Ref. 51

55

5305670042

HANDLE W/Ref. 15 & 63

56

5305670194

BACK REST

57

5305670149

SLEEVE

58

5305670150

BRACKET

59

5305670211

BACK SUPPORT ASSY

60

1045707512

BOLT

61

5305670212

HANDLE CPL W/Ref. 60

62

5305670213

PINION

63

5305670214

RIVET

64

5305670215

BRAKE

65

5305670216

BRACKET

68

5305670152

BOLT

69

5305670153

RIVET

70

5305670154

MOUNTING PARTS BACKR Ref. 11, 36, 37, 41-47 & 68

71

5305670155

ROD

72

5305670043

SPRING

73

5305670156

RING

74

5305670157

BOLT

75

5305670195

LEVER W/Ref. 72-74

91

5305670220

TIE STRAP

93

5305670096

SWITCH FLIP

94

5305670222

WIRE HARNESS

107

5305670223

WIRE HARNESS

108

0190117010

WIRE HARNESS
