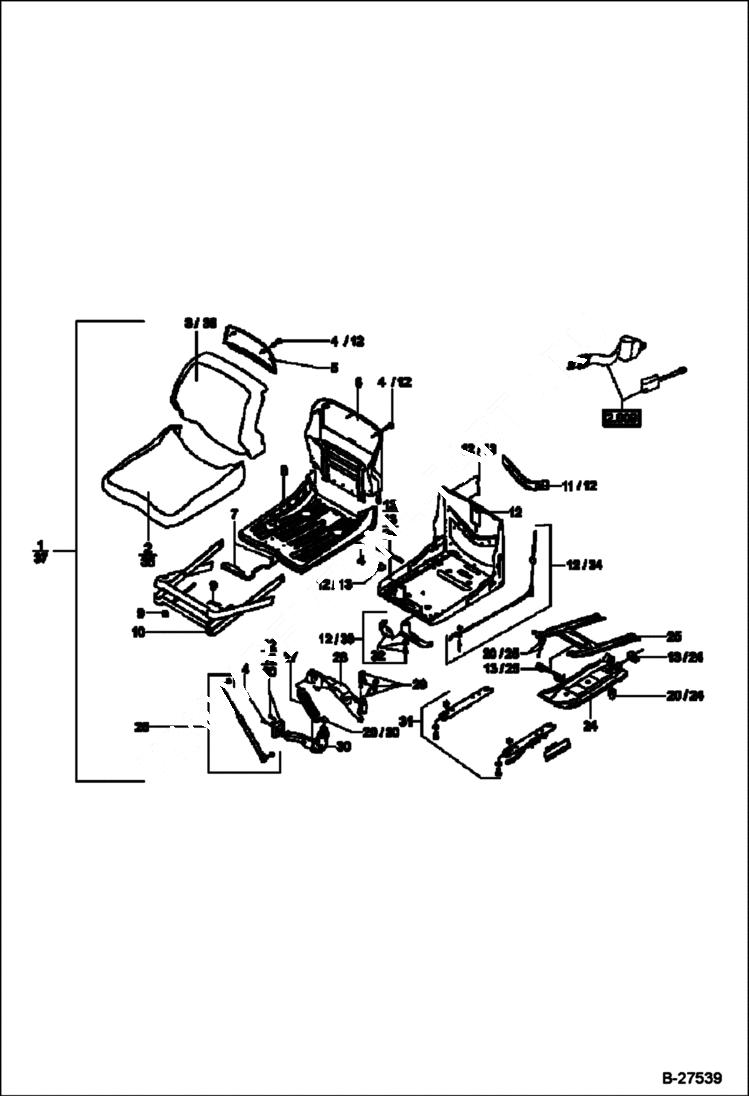

Запчасти Bobcat ZX125 OPERATORS SEAT MSG20 MAIN FRAME

1

5305661700

OPERATORS SEAT Ref. 2-34

2

5305670022

PAD W/Ref. 4

3

5305670023

PAD W/Ref. 54

4

5305661608

SET, MOUNTING PART

5

5305661618

COVER W/Ref. 4

6

5305661611

PLATE W/Ref. 4

7

5305039166

CONTROL LEVER

8

5305661612

SEAT BRACKET W/Ref. 4, 7 & 10

9

5305039168

REPAIR KIT

10

5305039169

COVER W/Ref. 9

11

5305661613

COVER

12

5305661614

SEAT CONSOLE W/Ref. 4, 11, 33 & 34

13

5305661594

SEAL KIT

13

ANGLE PLATE NSS

13

PLATE NSS

13

COVER NSS

13

PIPE NSS

13

CLIP NSS

13

PLUG NSS

20

5305039173

PLUG KIT

20

BUFFER NSS

20

BUFFER NSS

20

PLATE NSS

24

5305039174

SPRING SUSPENTION

24

PLATE NSS

24

PIPE NSS

24

BUFFER NSS

25

5305039175

SPRING SUSPENTION

25

ANGLE PLATE NSS

25

BUFFER NSS

26

5305661595

GAS FILLED DAMPER

27

5305039176

TENSION SPRING

28

5305039177

LEVER

29

5305661615

PART

30

5305039180

LEVER

31

5305661691

SLIDING RAIL SET

32

5305661616

CONTROL LEVER

33

5305661617

CABLE PULL

34

5305661619

WEIGHT INDICATOR

35

5305670020

CUSHION SEAT

36

5305670021

CUSHION BACK

37

5305661690

DRIVERS SEAT CPL Ref. 4-36
