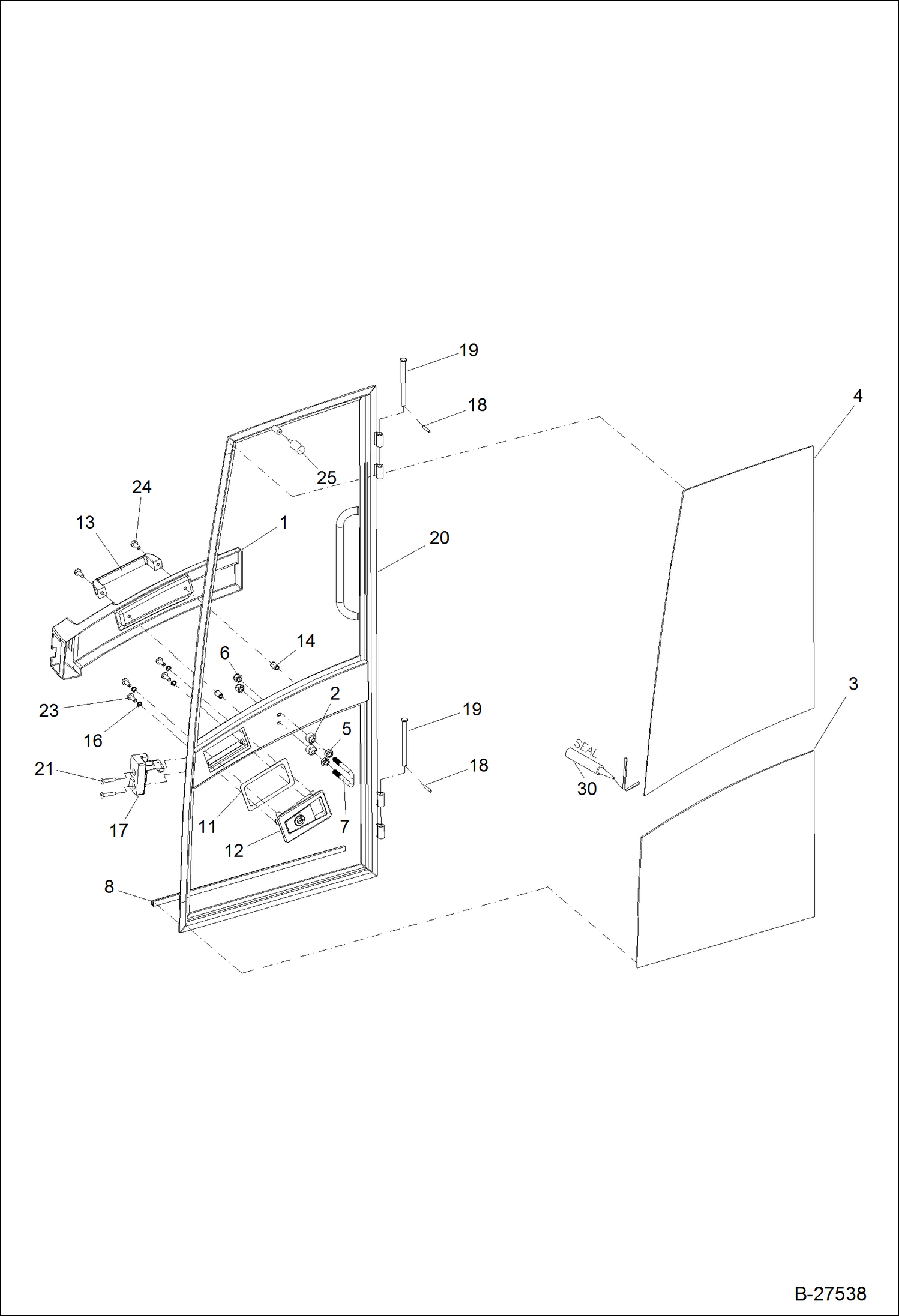

Запчасти Bobcat ZX125 OPERATORS CAB Door Cab S/N.: 202.031.070 & Abv MAIN FRAME

1

5388665166

COVER

2

5388662632

CAP

3

5103661310

DOOR PANE BOTTOM

4

5103661319

DOOR PANE TOP

5

1210707011

NUT

6

5388662946

NUT

7

5388662489

CLIP

8

5388662954

SEAL L=600MM

11

5388662961

SEAL

12

5388662962

DOOR HANDLE

13

5388662963

HANDLE

14

5388662964

NUT

16

1290707014

WASHER

17

5388661474

LOCK, LEFT

18

5388661432

SPRING PIN

19

5388661431

HINGE ROD

20

5388662965

DOOR FRAME, BLACK

21

1062707019

BOLT

23

1008707612

BOLT

24

1008707213

BOLT

25

5388662947

STOP

30

MCS008042A

KIT, WINDOW GLUE
