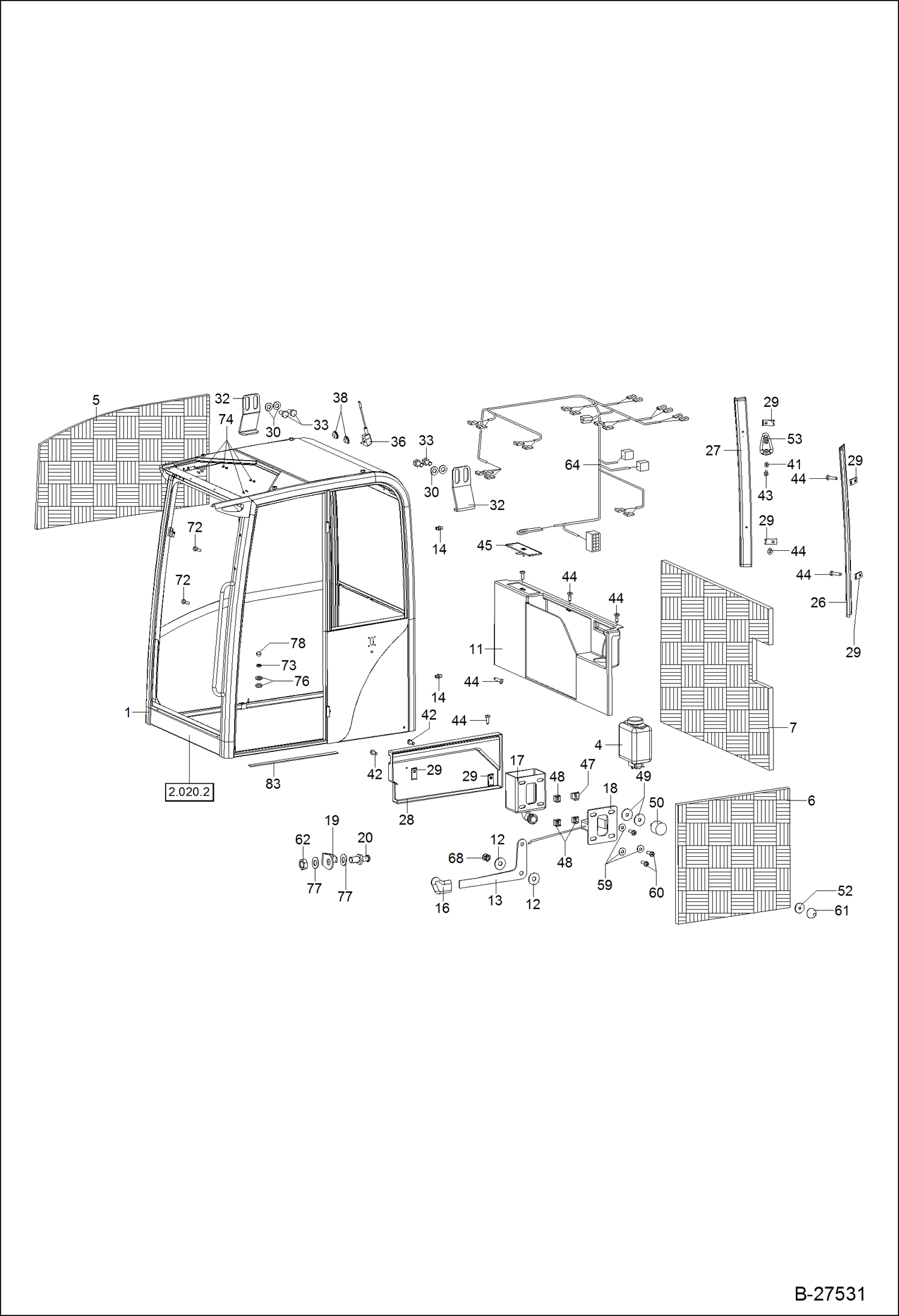

Запчасти Bobcat ZX125 OPERATORS CAB Equipment 1 Cab S/N.: 202.041.721 & Abv MAIN FRAME

1

CAB ASSY NLA

4

5388662574

RESERVOIR

5

5388665150

INSULATION

6

5388665151

INSULATION

7

5388665152

INSULATION

11

5388665153

COVERING

12

1307707018

WASHER

13

5388662939

HANDLE

14

1607003006

GREASE NIPPLE

16

5388662587

BUTTON,PLASTIC

17

5388662222

HOUSING

18

5388662143

DOOR LOCKING includes cable

19

5388661433

GUIDE

20

5388661473

COTTER

26

5388665154

COVER

27

5388665155

COVER

28

5388665156

COVER

29

5388662515

CLIP

30

1290707018

WASHER

32

5388662944

HOLDER

33

5388662829

BOLT

36

5388664003

AERIAL

38

5388662057

PLUG

41

5388662945

BOLT

42

5388662046

BOLT

43

5388662796

BOLT

44

5388661435

BOLT

45

5388665157

COVER

47

5388662599

NUT

48

5388662284

NUT

49

5388662071

WASHER

50

5388662947

STOP

52

5388661442

WASHER

53

5354244600

HOOK

59

1307707012

WASHER

60

5388662776

BOLT

61

5388661476

RUBBER BLOCK

62

5388662090

NUT

64

5388665199

WIRE HARNESS

68

1212251011

NUT

72

5388665062

NUT

73

5388665048

NUT

74

5388665047

NUT

76

1290707014

WASHER

77

1290707022

WASHER

78

5388662051

CAP

83

5388665324

SAFETY-WALK Was 5388665159 - A
