Запчасти Bobcat ZX125 OPERATORS CAB CEMENTED PANES Cab S/N.: 202.042.466 & Abv MAIN FRAME

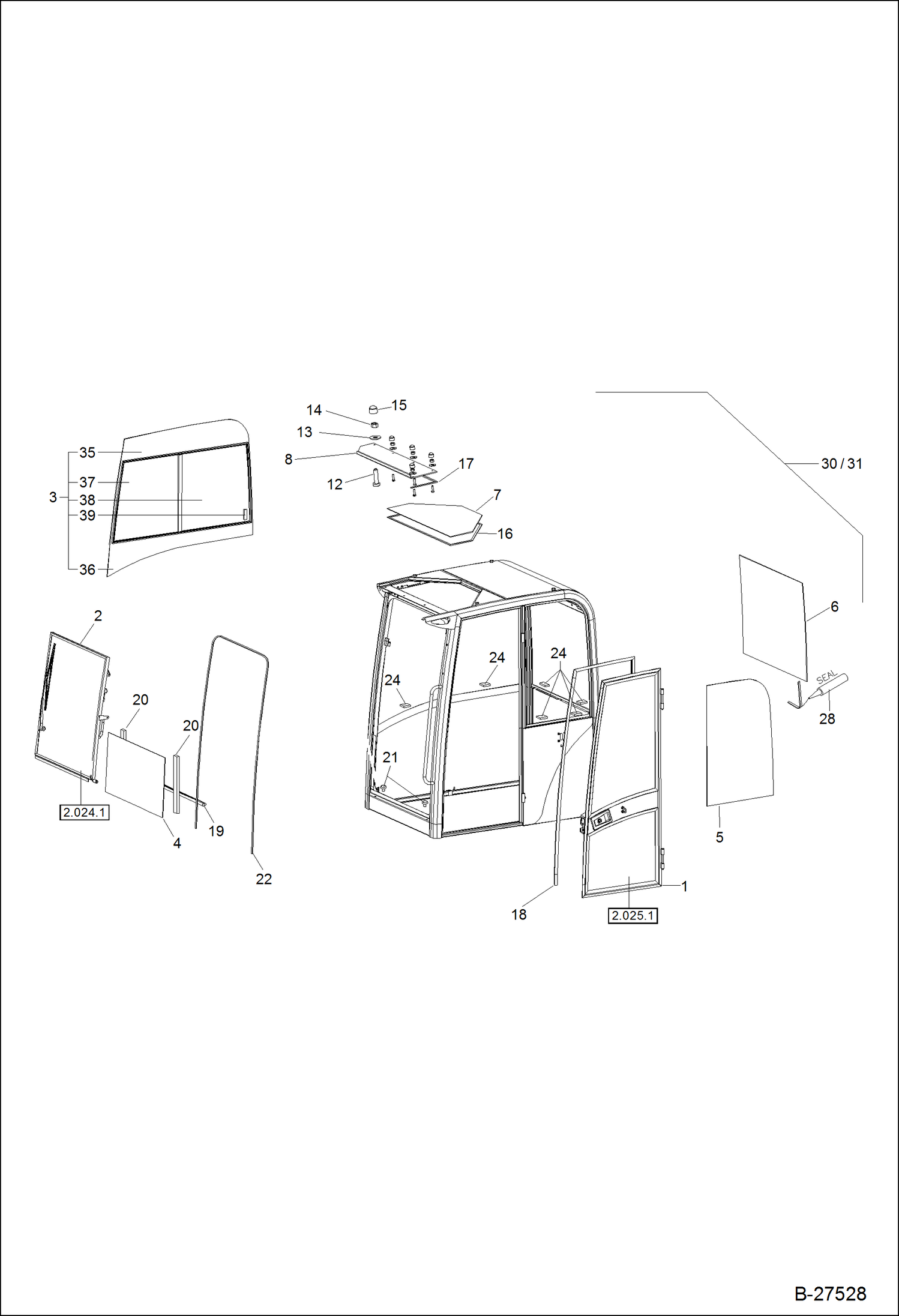

Схема запчастей Bobcat ZX125 - OPERATORS CAB CEMENTED PANES Cab S/N.: 202.042.466 & Abv MAIN FRAME

Артикул

Название

Примечание

Количество

1

5388665149

DOOR CMPL - A

2

5388665197

ROLLER

3

5388665396

SLIDING PANE

4

5103660551

GLASS

5

5103660594

GLASS

6

5388665054

GLASS

7

5103661360

PANE Was 5388662921 - A

8

5388664045

PANE

12

5388662776

BOLT

13

5388662623

WASHER

14

5388665072

NUT

15

5388662926

CAP

16

5388662927

SEAL 10 x 5 x 2230

17

5388662928

SEAL 10 x 3 x 1100

18

5388662929

SEAL 3600 mm

19

5388662930

SEAL

20

5388662931

SEAL 20 x 15 x 470

21

5388661482

RUBBER BLOCK

22

5388665037

SEAL

24

5388665035

SUPPORT

28

MCS008042A

KIT, WINDOW GLUE

30

5388661141

OPERATOR'S CAB CPL. WHITE

31

5388664165

CAB, ASSY WHITE white - Was 5388664155 - A

35

5103661313

GLASS

36

5103661314

GLASS

37

5103661311

GLASS

38

5103661312

GLASS

39

5388665263

DETENT HANDLE
