Запчасти Bobcat ZX125 CAB MOUNTING MAIN FRAME

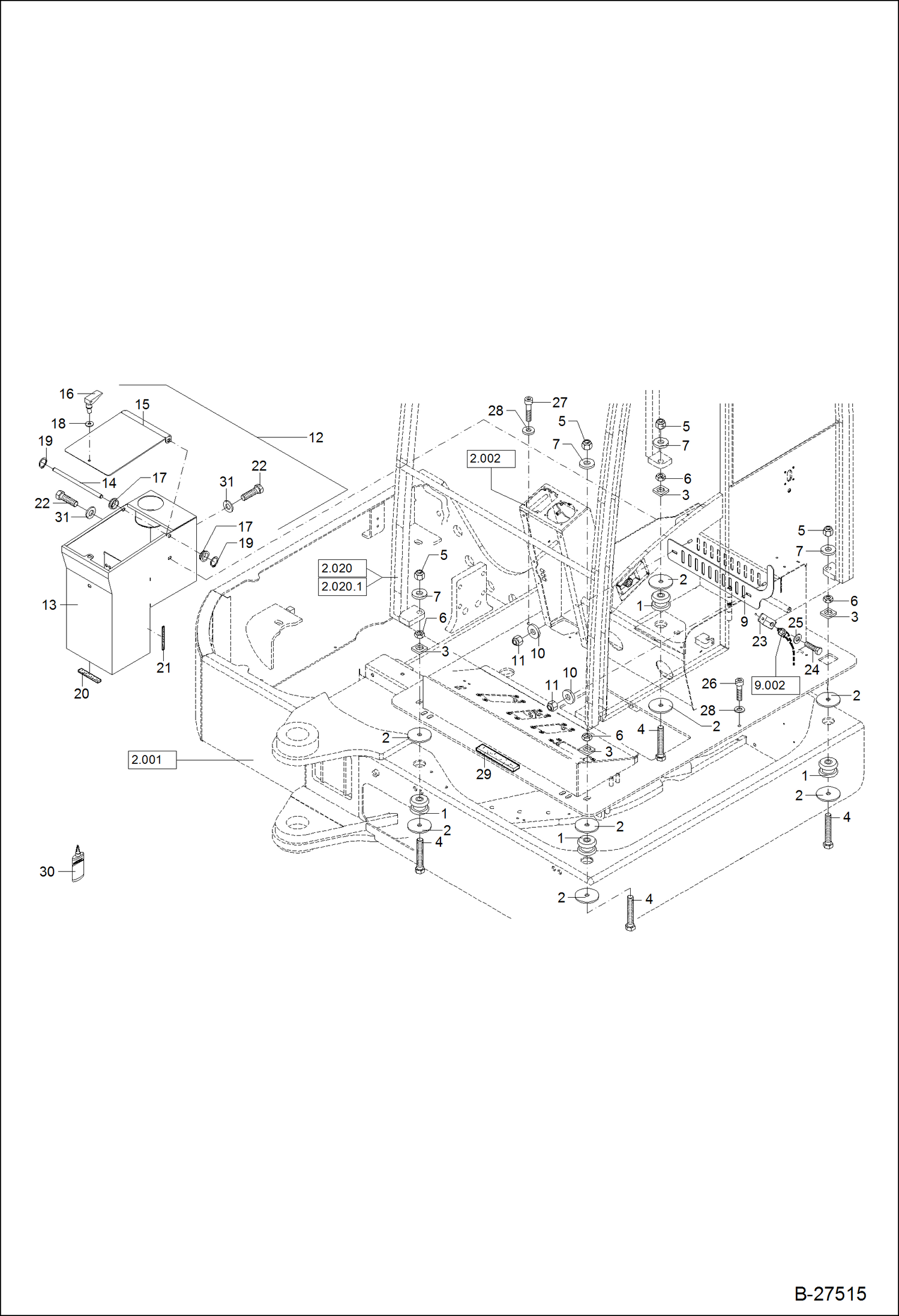

Схема запчастей Bobcat ZX125 - CAB MOUNTING MAIN FRAME

Артикул

Название

Примечание

Количество

1

5101290962

RUBBER MOUNT

2

5153656312

SHIM

3

0190026081

TORSION LOCK

4

1008707237

BOLT

5

1212251015

NUT

6

1211707015

NUT

7

1343707063

WASHER

9

6190026090

AIR BAFFLE

10

1307707018

WASHER

11

1212251011

NUT

12

6190026068

BOX Ref. 13-19

13

6190026070

BOX

14

0190026077

SHAFT

15

6190026078

COVER

16

5354606001

LOCKING

17

5657199001

PLAIN BEARING

18

1307707014

WASHER

19

1455622311

CIRCLIP

20

5354640120

RUBBER

21

5354600020

RUBBER 1=1 METER

22

1008707018

BOLT

23

6190026032

BRACKET

24

1008707213

BOLT

25

1290707014

WASHER

26

1045707430

BOLT

27

1045707730

BOLT

28

1343707061

WASHER

29

5354640110

RUBBER

30

THREADLOCK NLA - Was 5075632325 - A

31

1290707018

WASHER

Выбрано товаров: 30
