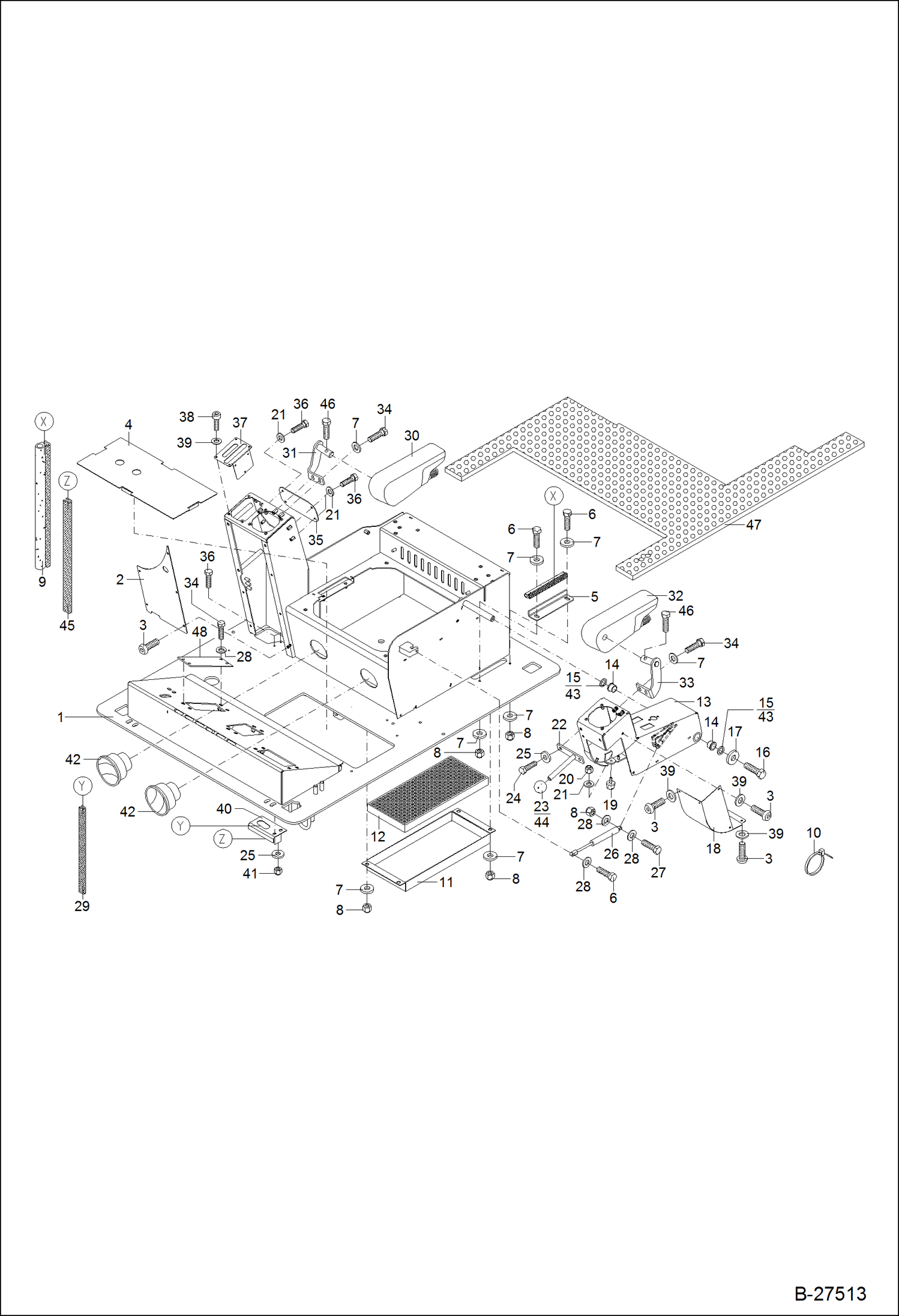

Запчасти Bobcat ZX125 FLOOR FRAME S/N XXXX/0498 & Abv MAIN FRAME

1

6207526002

FRAME, FLOOR

2

6190026030

COVER

3

1125907909

BOLT

4

6190026045

COVER

5

6202508020

BRACKET

6

1008707618

BOLT

7

1343707057

WASHER

8

1212251011

NUT

9

7023313

SEALING SECTION - A

10

5653093560

BINDER

11

6190026035

SUCTION BOX

12

5501661034

FILTER ELEMENT

13

6190026020

ARMREST

14

0191114138

BUSHING

15

1309412411

SHIM

16

1008707423

BOLT

17

1307707020

WASHER

18

6190026029

COVER

19

5101290955

STOP

20

1212251009

NUT

21

1290707014

WASHER

22

6209026060

ROD W/Ref. 23

23

1541930627

BALL KNOB

24

1008707513

BOLT

25

1343707055

WASHER

26

5696636551

GAS PRESSURE SPR.

27

1008707019

BOLT

28

1290707018

WASHER

29

5354600010

RUBBER PROFILE

30

5305661702

ARMREST, RIGHT

31

0190026050

BRACKET

32

5305661701

ARMREST, LEFT

33

0190026054

BRACKET

34

1008707318

BOLT

35

6190026058

COVER

36

1008707912

BOLT

37

6190026040

ANGLE PLATE

38

1045707909

BOLT

39

1290707012

WASHER

40

6190026057

COVER

41

1210707009

NUT

42

5688329382

NOZZLE

43

1309412124

SHIM

44

5666660925

SLEEVE

45

5354600000

EDGE PROTECTION

46

5305661749

BOLT

47

0190111005

FLOOR MAT

48

6154506022

COVER
