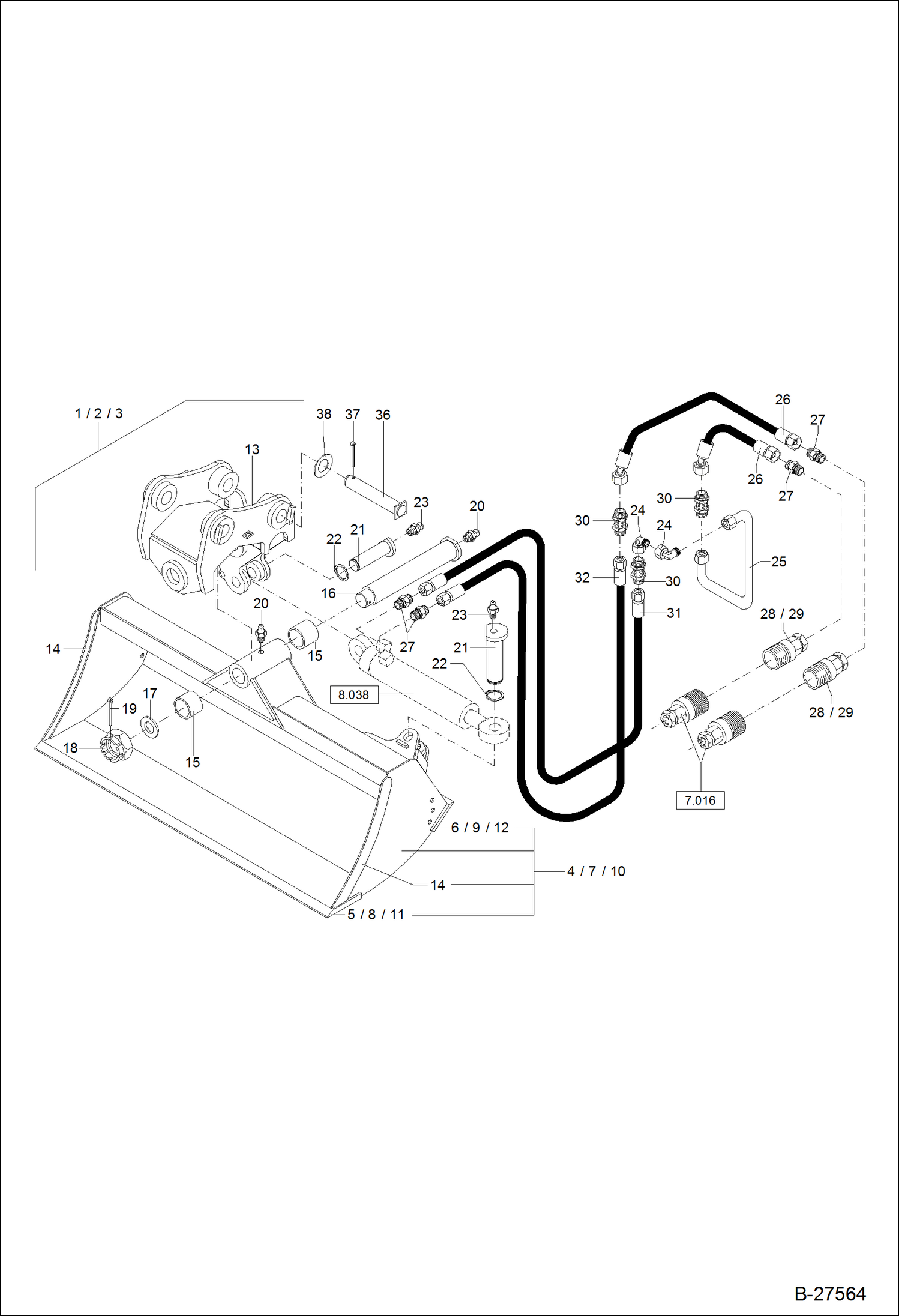

Запчасти Bobcat ZX125 SWIVELLING BUCKET - 1500,1700,1800MM DIRECT MOUNTED ACCESSORIES & OPTIONS

1

6239282000

SWIVELING BUCKET Ref. 4-6 & 13-35

2

6239282200

SWIVELING BUCKET Ref. 7-9 & 13-35

3

6239282400

SWIVELING BUCKET Ref. 10-12 & 13-35

4

5018001116

SWIVELING BUCKET CPL.

5

5018001117

CUTTING EDGE

6

5018001118

CUTTING EDGE

7

5018001119

SWIVELING BUCKET CPL.

8

5018001129

EDGE, CUTTING 1700MM

9

5018001120

CUTTING EDGE

10

5018001121

SWIVELING BUCKET CPL.

11

5018001122

CUTTING EDGE

12

5018001123

CUTTING EDGE

13

5018001115

SLEW DEVICE

14

5018001124

CUTTING EDGE

15

5018001005

CLAMPING BUSH

16

5018001006

PIN

17

1290707076

SHIM

18

1218251840

CASTLE NUT

19

1395707838

COTTER PIN

20

1607003010

GREASE NIPPLE

21

5018001007

PIN

22

5018001008

CIRCLIP

23

1607003008

GREASE NIPPLE

24

5018001018

FITTING

25

5018001072

TUBELINE

26

5018001020

HYDR. HOSE

27

5018001021

FITTING

28

5260301140

COUPLING SOCKET

29

5260301147

COVER NUT

30

5018001024

FITTING

31

5018001025

HYDR. HOSE

32

5018001026

HYDR. HOSE

33

0153131043

PIN

34

1395707642

COTTER PIN

35

1309412430

WASHER

36

CYLINDER, SWIVELLING BUCKET See Illustration HYDRAULIC CYLINDER - SWIVELLING BUCKET/ B27639
