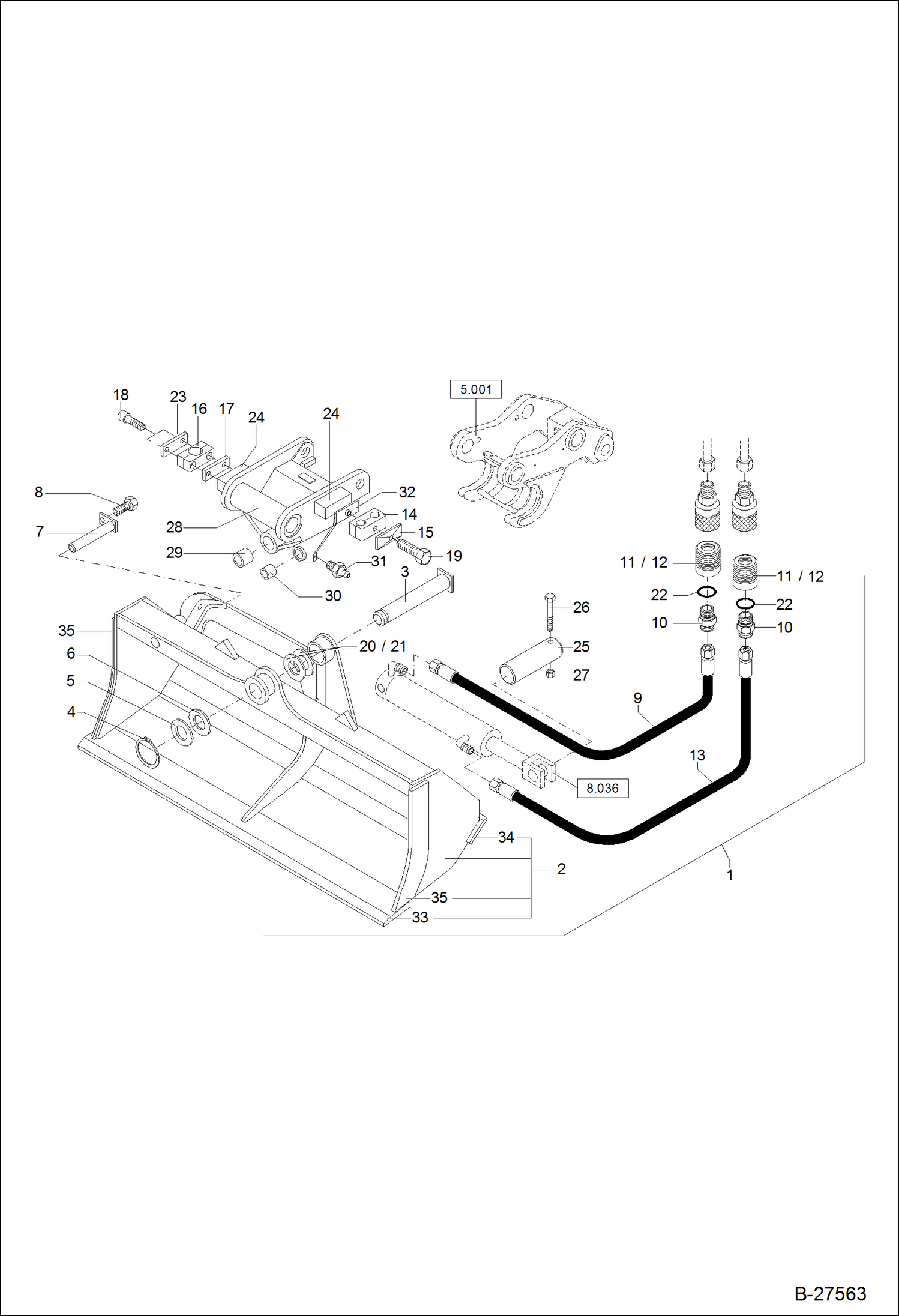

Запчасти Bobcat ZX125 SWIVELLING BUCKET 1500MM ACCESSORIES & OPTIONS

1

6209781000

SWIVELING BUCKET CPL.

2

6202780002

SWIVELING BUCKET

3

0210951040

PIN

4

1455622750

SNAP RING

5

1309412425

SHIM

6

1309412434

SHIM

7

0223246010

PIN, BUCKET

8

1008707817

BOLT

9

4260222355

HOSE

10

1915060562

FITTING

11

5260301140

COUPLING SOCKET W/Ref. 36-38

12

5260301147

COVER NUT

13

4260240355

HOSE

14

5660199788

HOSE CLIP

15

5660200230

COVER PLATE

16

5660199791

HOSE CLIP

17

5660199807

PLATE

18

1007707014

BOLT

19

1007707319

BOLT

20

1309412926

SHIM

21

1309412934

SHIM

22

1970956830

O-RING

23

5660200130

COVER

24

6154823062

LINK

25

0502045021

PIN

26

1007707120

BOLT

27

1212251011

NUT

28

6155303002

SLEW DEVICE

29

5557313800

BUSHING

30

0223330119

BUSHING

31

1607003006

GREASE NIPPLE

32

5660199789

WELDING PLATE

33

0202780004

EDGE, CUTTING

34

6202780005

CUTTING EDGE

35

0202780015

CUTTING EDGE

36

CYLINDER, SWIVELLING BUCKET See Illustration HYDRAULIC CYLINDER - SWIVELLING BUCKET/ B27637
