Запчасти Bobcat ZX125 QUICK MOUNT HITCH - MS08 ACCESSORIES & OPTIONS

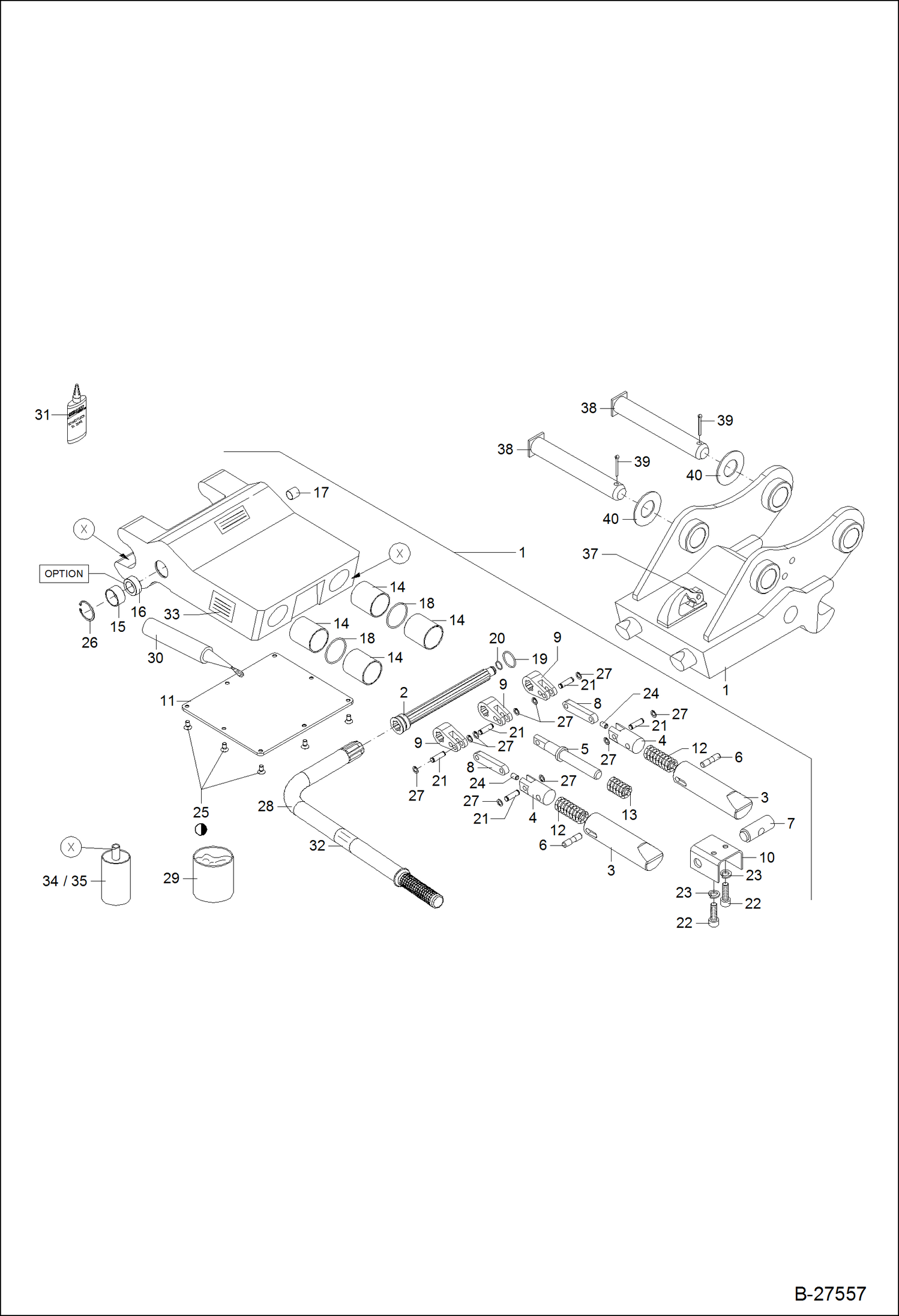

Схема запчастей Bobcat ZX125 - QUICK MOUNT HITCH - MS08 ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

5455660631

HITCH, QUICK MOUNT CPL.

2

5455660482

SHAFT

3

5455660483

PIN

4

5455660484

PIN

5

5455660485

PIN

6

5455660486

PIN

7

5455660487

PIN

8

5455660488

REVERSING LEVER

9

5455660489

CATCH

10

5455660490

BRACKET

11

5455660817

COVER, PLATE

12

5455660491

SPRING

13

5455660492

SPRING

14

5455660493

BUSHING

15

5455660494

BUSHING

16

5455660495

BUSHING

17

5455660496

BUSHING

18

5455660497

O-RING

19

5455660498

O-RING

20

5455660499

O-RING

21

5455660500

PIN

22

5455660501

BOLT

23

5455660502

SPRING WASHER

24

5455660503

STUD

25

1062707817

BOLT

26

5455660504

CIRCLIP

27

5455660505

CIRCLIP

28

5455660506

TUBUL BOX WRENCH

29

4315005053

GREASE, TUBE

30

MCS001041A

SEAL JOINT

31

MCS001035A

GLUE

32

5455660521

DECAL

33

5455660520

DECAL

34

MCS005003A

SPRAY

35

MCS005002A

CLEANER, MOUNT QUICK

37

5455700037

KIT, REPAIR hook

38

0153131043

PIN

39

1395707642

COTTER PIN

40

1309412430

WASHER

Выбрано товаров: 39
